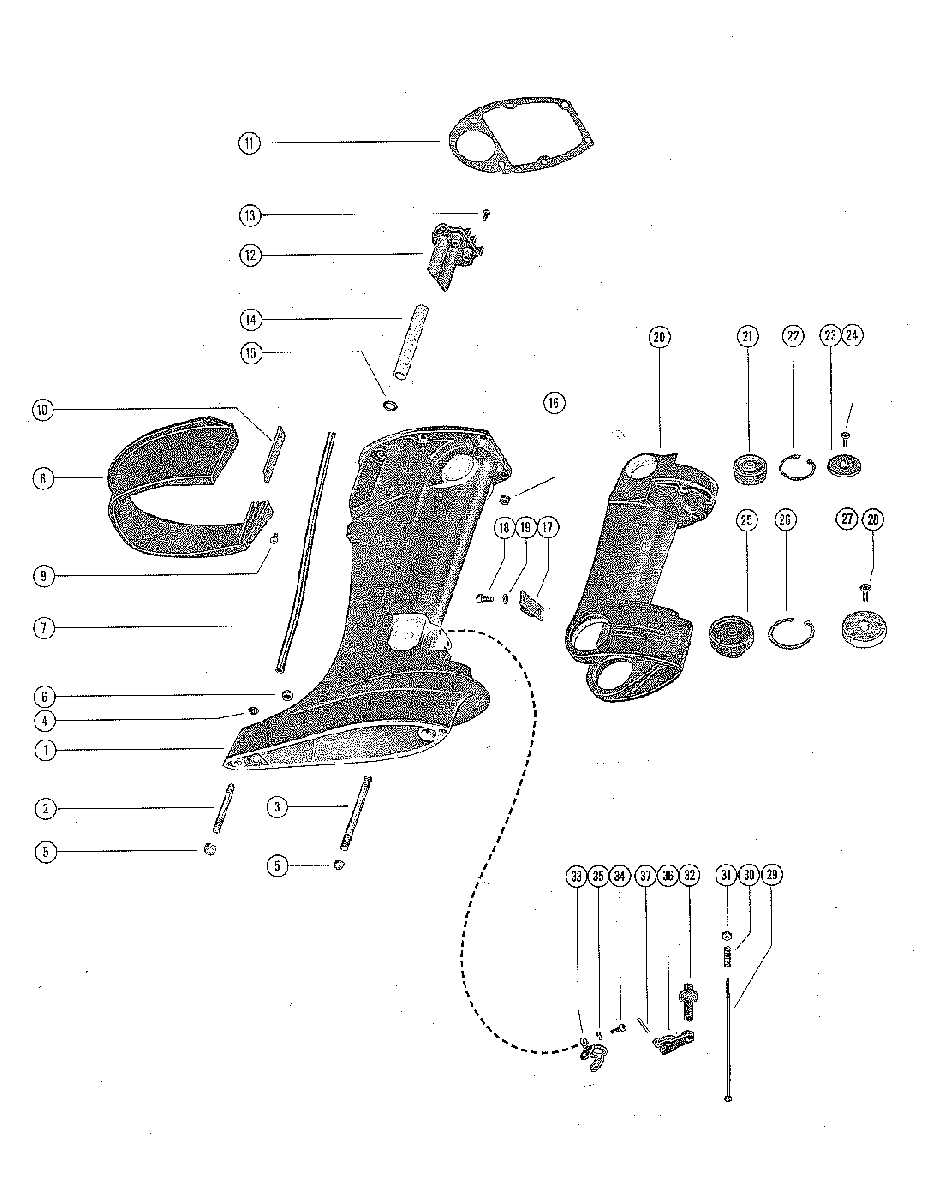

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 200 2296267 THRU 2827676
-
№АртикулНазвание
-
11561-2672A4 DRIVE SHAFT HOUSING ASSEMBLY (SHOFT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHOFT SHAFT)
-
11560-2671A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-66373 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 5/16")STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 5/16")
-
316-58134 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (3 15/16")STUD, DRIVE SHAFT HSG. TO GEAR HSG. (3 15/16")
-
419-32298 PLUG, DRIVE SHAFT HOUSING STUDPLUG, DRIVE SHAFT HOUSING STUD
-
511-82670911 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
611-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
732-39587 TUBE, WATER OUTLEET (SHORT SHAFT)TUBE, WATER OUTLEET (SHORT SHAFT)
-
732-39587 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
839301 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
910-35012 SCREW, TRIM COVER TO BOTTOM COWL (5/8")SCREW, TRIM COVER TO BOTTOM COWL (5/8")
-
1039353 SEAL, RUBBER - TRIM COVERSEAL, RUBBER - TRIM COVER
-
1127-39402 GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSINGGASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
-
1239492 PLATE, IDLE RELIEFPLATE, IDLE RELIEF
-
1310-35519 SCREW, IDLE RELIEF PLATE TO DRIVE SHAFT HOUSINGSCREW, IDLE RELIEF PLATE TO DRIVE SHAFT HOUSING
-
1432-45054 TUBE, NYLON - IDLE RELIEF TUBETUBE, NYLON - IDLE RELIEF TUBE
-
1525-201951 "O" RING, IDLE RELIEF TUBE"O" RING, IDLE RELIEF TUBE
-
1611-29250 NUT, POWERHEADS STUDSNUT, POWERHEADS STUDS
-
1611-29250 NUT, POWERHEADS STUDSNUT, POWERHEADS STUDS
-
1733420 BUMPER, RUBBER - SADDLEBUMPER, RUBBER - SADDLE
-
1810-31716 SCREW, RUBBER BUMPER TO SADDLE (5/8")SCREW, RUBBER BUMPER TO SADDLE (5/8")
-
1913-26992 LOCKWAASHER, RUBBER BUMPER SCREWLOCKWAASHER, RUBBER BUMPER SCREW
-
201562-7098A1 SADDLESADDLE
-
2185003 MOUNT, RUBBER - UPPER (SHORT SHAFT)MOUNT, RUBBER - UPPER (SHORT SHAFT)
-
2185002 MOUNT, RUBBER - UPPER (LONG SHAFT)MOUNT, RUBBER - UPPER (LONG SHAFT)
-
2253-23720 RING, RETAINING - UPPER MOUNTRING, RETAINING - UPPER MOUNT
-
2339481 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2410-39669 SCREW, UPPER MOUNT COVER FASTENINGSCREW, UPPER MOUNT COVER FASTENING
-
2579948A1 MOUNT, -RUBBER- LOWER (SHORT SHAFT)MOUNT, -RUBBER- LOWER (SHORT SHAFT)
-
2579947A1 MOUNT, RUBBER - LOWER (LONG SHAFT)MOUNT, RUBBER - LOWER (LONG SHAFT)
-
2653-8M0051043 RING, RETAINING - LOWER MOUNTRING, RETAINING - LOWER MOUNT
-
2747943 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2770317 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2810-28638 SCREW, LOWER MOUNT COVER FASTENINGSCREW, LOWER MOUNT COVER FASTENING
-
2933495 LINK ROD, REVERSE LOCKLINK ROD, REVERSE LOCK
-
3024-33413 SPRING, TENSION - REVERSE LOCKSPRING, TENSION - REVERSE LOCK
-
3111-57146 NUT, REVERSE LOCK LINK RODNUT, REVERSE LOCK LINK ROD
-
3239241A1 CAM COUPLING ASSEMBLY, SHIFT SHAFTCAM COUPLING ASSEMBLY, SHIFT SHAFT
-
3335653 RETAINER, REVERSE LOCK CAMRETAINER, REVERSE LOCK CAM
-
3410-31716 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSINGSCREW, CAM RETAINER TO DRIVE SHAFT HOUSING
-
3513-26992 LOCKWASHER, CAM RETAINER SCREWLOCKWASHER, CAM RETAINER SCREW
-
3633407 LEVER, REVERSE LOCK CAMLEVER, REVERSE LOCK CAM
-
3717-58998 PIN, ROLL - CAM LEVER TO RETAINERPIN, ROLL - CAM LEVER TO RETAINER
