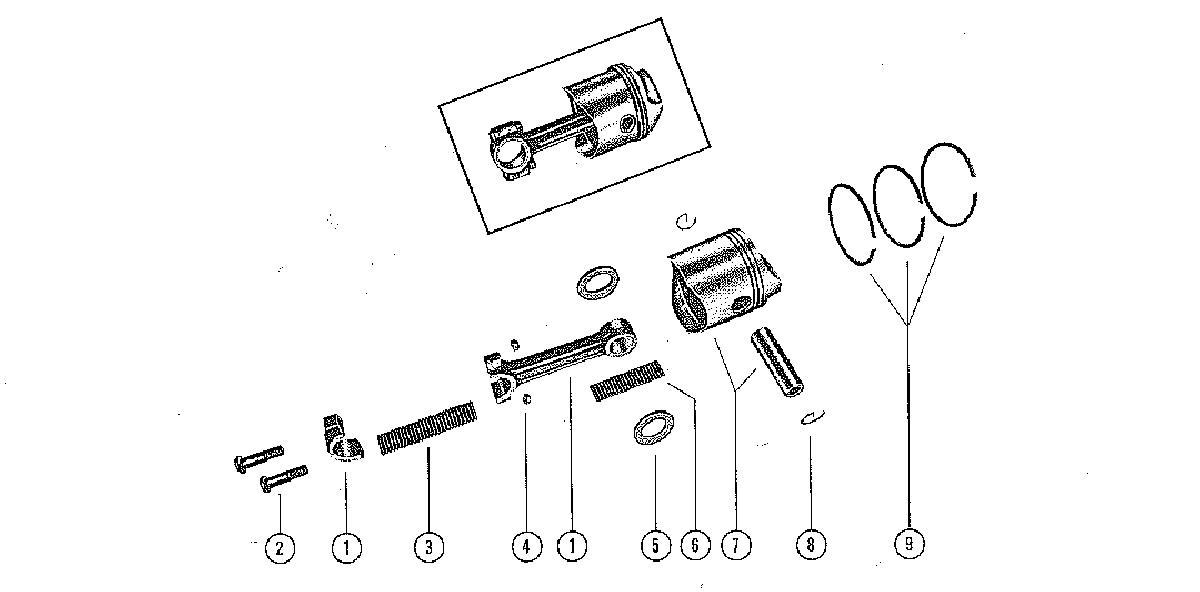

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 200 2296267 THRU 2827676
-
№АртикулНазвание
-
1632-7621A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
210-45379 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
329-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
411-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
512-47275 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
629-20063 BEARING, NEELDE - PISTON PINBEARING, NEELDE - PISTON PIN
-
7780-9229A7 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
840-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
939-27841A12 RING, PISTONRING, PISTON
-
-780-9229A10 PISTON AND PISTON PIN ASSEMBLY
.015 OVERSIZE PISTONS AND RINGSPISTON AND PISTON PIN ASSEMBLY
.015 OVERSIZE PISTONS AND RINGS -
-39-28616A12 RING, PISTON (.015 OVERSIZE)
.015 OVERSIZE PISTONS AND RINGSRING, PISTON (.015 OVERSIZE)
.015 OVERSIZE PISTONS AND RINGS
