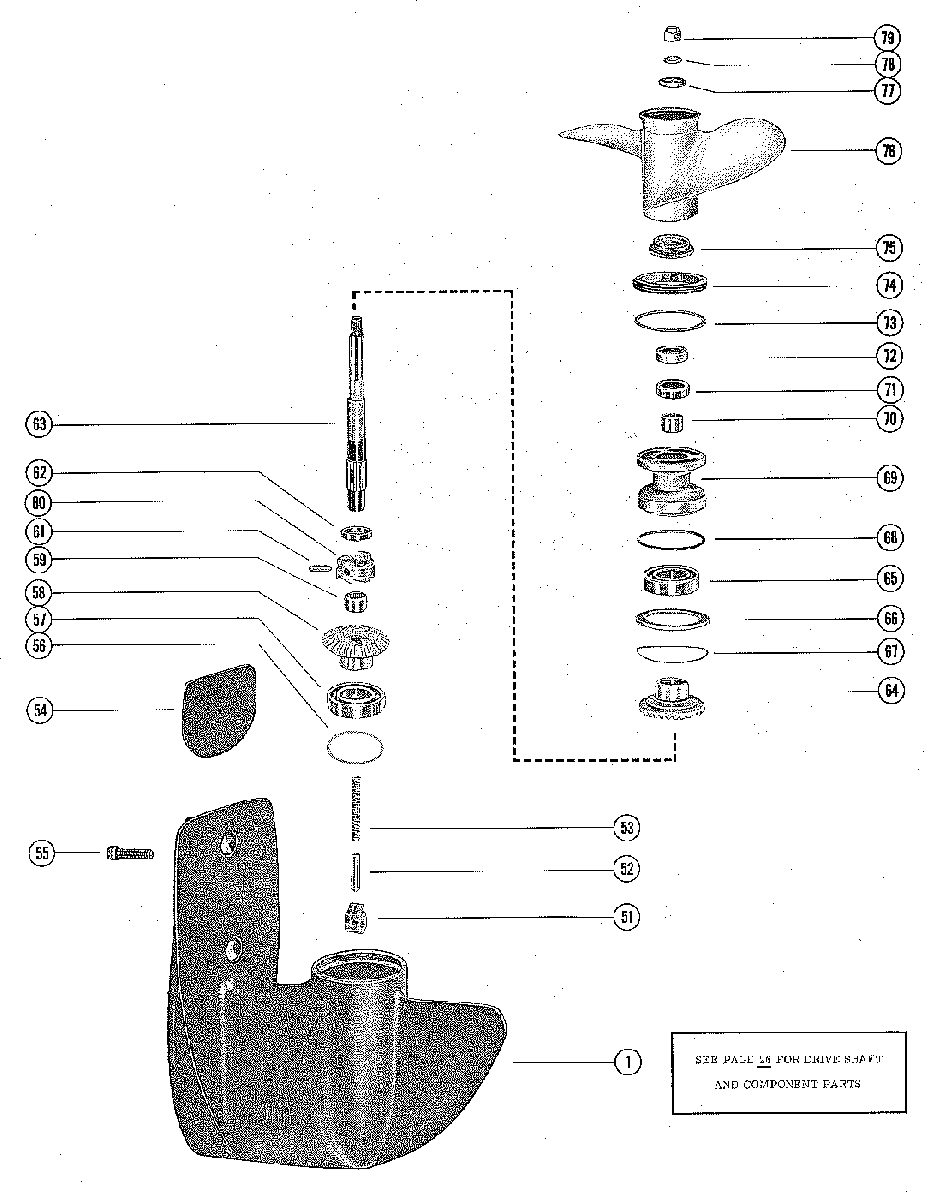

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 200 2296267 THRU 2827676
-
№АртикулНазвание
-
-1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27 -
-1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
ALUMINUM WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27 -
-1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27 -
-1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
PLASTIC WATER PUMP AND STRAIGHT GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27 -
-1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27 -
-1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
PLASTIC WATER PUMP AND SPIRAL GEARS A-1627-2964A4 AND A3, A-1627-3482A3, A4, A7, AND A8 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #74 AS LISTED ON PAGES 26 AND 27 -
11627-2964A1 GEAR HOUSING ASSEMBLY (ALUMINUM WATER PUMP)
SEE PAGE 26 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY (ALUMINUM WATER PUMP)
SEE PAGE 26 FOR PARTS BREAKDOWN -
11627-3482A1 GEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP)
SEE PAGE 26 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY (PLASTIC WATER PUMP)
SEE PAGE 26 FOR PARTS BREAKDOWN -
5133436 CAM, SHIFTCAM, SHIFT
-
5233438 FOLLOWER, CAMFOLLOWER, CAM
-
5324-88435 SPRING, CAM FOLLOWERSPRING, CAM FOLLOWER
-
5497-47820A1 PLATE ASSEMBLY, ANODIC - GEAR HOUSINGPLATE ASSEMBLY, ANODIC - GEAR HOUSING
-
5510-47819 SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")
-
5615-20788A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
5730-25398 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5843-45227A5 FORWARD GEAR ASSEMBLY (STRAIGHT)FORWARD GEAR ASSEMBLY (STRAIGHT)
-
5843-45227A5 FORWARD GEAR (SPIRAL)FORWARD GEAR (SPIRAL)
-
5931-28157 BEARIING, ROLLER - FORWARD GEARBEARIING, ROLLER - FORWARD GEAR
-
6043-45227A3 RATCHET, SLIDING CLUTCH - STRAIGHTRATCHET, SLIDING CLUTCH - STRAIGHT
-
6117-33433 PIN, CROSS - RATCHET TO PROPELLER SHAFT - STRAIGHTPIN, CROSS - RATCHET TO PROPELLER SHAFT - STRAIGHT
-
6253-33430 RING, RETAINING - CROSS PIN - STRAIGHTRING, RETAINING - CROSS PIN - STRAIGHT
-
6052-53518A1 RATCHET ASSEMBLY, SLIDING CLUTCH - SPIRALRATCHET ASSEMBLY, SLIDING CLUTCH - SPIRAL
-
6117-33433 PIN, CROSS - RATCHET TO PROPELLER SHAFT - SPIRAL
SERIAL 00000000-02656709PIN, CROSS - RATCHET TO PROPELLER SHAFT - SPIRAL
SERIAL 00000000-02656709 -
6253-33430 RING, RETAINING - CROSS PIN - SPIRAL
SERIAL 00000000-02656709RING, RETAINING - CROSS PIN - SPIRAL
SERIAL 00000000-02656709 -
6117-53372 PIN, CROSS - RATCHET TO PROPELLER SHAFT - SPIRAL
SERIAL 02656710-09999999PIN, CROSS - RATCHET TO PROPELLER SHAFT - SPIRAL
SERIAL 02656710-09999999 -
6224-53373 SPRING, RETAINING - CROSS PIN - SPIRAL
SERIAL 02656710-09999999SPRING, RETAINING - CROSS PIN - SPIRAL
SERIAL 02656710-09999999 -
6344-75366A2 PROPELLER SHAFT ASSEMBLYPROPELLER SHAFT ASSEMBLY
-
6443-45227A3 REVERSE GEAR ASSEMBLY (STRAIGHT)REVERSE GEAR ASSEMBLY (STRAIGHT)
-
6443-45229 REVERSE GEAR (SPIRAL)REVERSE GEAR (SPIRAL)
-
6530-25398 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6612-33434 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
6715-33431A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6825-33465 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6933402T4 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7031-28157 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7126-27163 OIL SEAL, BEARING CARRIER (SPRING LOADED)OIL SEAL, BEARING CARRIER (SPRING LOADED)
-
7226-26805 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7312-33432 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
7433410 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7523-85964A1 COLLAR, GUIDE - PROPELLER SHAFTCOLLAR, GUIDE - PROPELLER SHAFT
-
7648-33480A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)
-
7648-34402A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
-
7648-86962A4 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
-
7648-37316A1 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM 7" PITCH)PROPELLER ASSEMBLY (3 BLADE - ALUMINUM 7" PITCH)
-
7711-64075A1 SPACER, SPLINE - PROPELLER SHAFTSPACER, SPLINE - PROPELLER SHAFT
-
7812-27025 WASHER, PROPELLER NUTWASHER, PROPELLER NUT
-
7911-34933 NUT, PROPELLER RETAININGNUT, PROPELLER RETAINING
