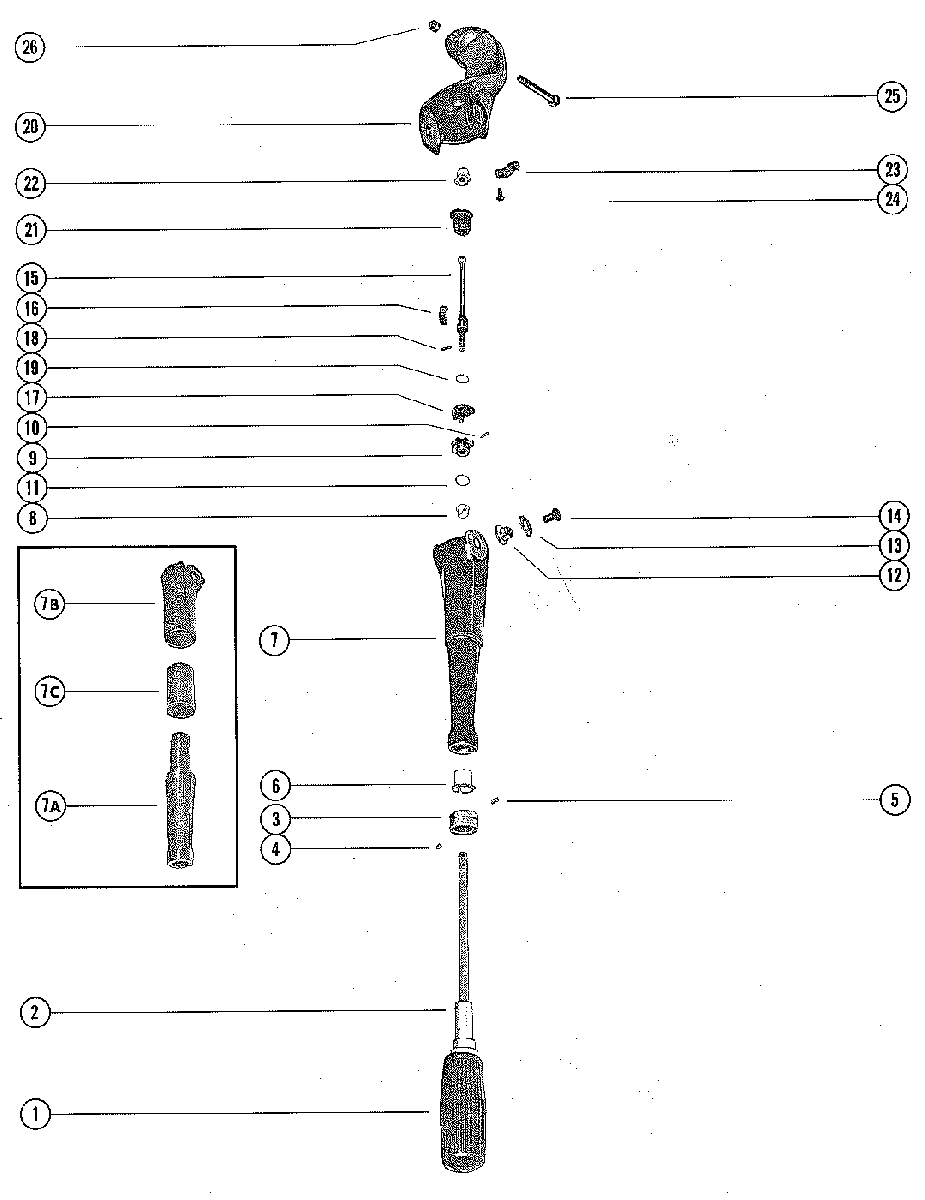

STEERING HANDLE ASSEMBLY для Mercury - 200 2296267 THRU 2827676
-
№АртикулНазвание
-
-60850A6 STEERLING HANDLE ASSEMBLY, COMPLETE
SERIAL 00000000-02432535STEERLING HANDLE ASSEMBLY, COMPLETE
SERIAL 00000000-02432535 -
-60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL 02432536-09999999STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL 02432536-09999999 -
-60850A6 STEERING HANDLE ASSEMBLY, COMPLETESTEERING HANDLE ASSEMBLY, COMPLETE
-
127763 GRIP, RUBBER - STEERING HANDLE BODYGRIP, RUBBER - STEERING HANDLE BODY
-
239352 BODY AND SHAFT, STEEREING HANDLEBODY AND SHAFT, STEEREING HANDLE
-
331001 INDICATOR, SPEED AND LIMIT - STEERING HANDLEINDICATOR, SPEED AND LIMIT - STEERING HANDLE
-
410-31002 SCREW, SET - SPEED ANS SHIFT INDICATORSCREW, SET - SPEED ANS SHIFT INDICATOR
-
510-22290 SCREW, DRIVE - INDICATOR TO STEEERING HANDLE BODYSCREW, DRIVE - INDICATOR TO STEEERING HANDLE BODY
-
623-30677 BUSHING, NYLON - STEERING HANDLE TO BODYBUSHING, NYLON - STEERING HANDLE TO BODY
-
749557A2 STEERING HANDLE ASSEMBLY
SERIAL 00000000-02432535STEERING HANDLE ASSEMBLY
SERIAL 00000000-02432535 -
7A49557 ARM, STEERING
SERIAL 02432536-09999999ARM, STEERING
SERIAL 02432536-09999999 -
7B49558 KNUCKLE, STEERING ARM SERIAL
SERIAL 02432536-09999999KNUCKLE, STEERING ARM SERIAL
SERIAL 02432536-09999999 -
7C23-49555 BUSHING, RUBBER - STEERING HANDLE
SERIAL 02432536-09999999BUSHING, RUBBER - STEERING HANDLE
SERIAL 02432536-09999999 -
823-28100 BUSHING, NYLON - STEERING HANDLEBUSHING, NYLON - STEERING HANDLE
-
943-47765 GEAR, BALL - STEERING HANDLE SHAFTGEAR, BALL - STEERING HANDLE SHAFT
-
943-53205 GEAR, BALL - STEERING HANDLE SHAFTGEAR, BALL - STEERING HANDLE SHAFT
-
1017-26862 PIN, BALL GAR TO STEERING HANDLE SHAFTPIN, BALL GAR TO STEERING HANDLE SHAFT
-
1153-47821 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
1153-53204 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
1248003 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1315-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
-
1410-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
-
1547825A1 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
1623-48005 SLEEVE, UNIVERSAL JOINTSLEEVE, UNIVERSAL JOINT
-
1743-47765 GEAR, BALL - UNIVERSAL JOINTGEAR, BALL - UNIVERSAL JOINT
-
1743-53205 GEAR, BALL - UNIVERSAL JOINTGEAR, BALL - UNIVERSAL JOINT
-
1817-26862 PIN, BALL GEAR TO UNIVERSAL JIONTPIN, BALL GEAR TO UNIVERSAL JIONT
-
1953-47821 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
1953-53204 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
2061107A1 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
2147743 BOOT, UNIVERSAL JOINTBOOT, UNIVERSAL JOINT
-
2223-47818 BUSHING, STEERING ARM BRACKETBUSHING, STEERING ARM BRACKET
-
2324-72847 SPRING, DETENT - STEERING HANDLESPRING, DETENT - STEERING HANDLE
-
2410-37571 SCREW, DETENT SPRING TO STEERING HANDLE (1/2")SCREW, DETENT SPRING TO STEERING HANDLE (1/2")
-
2510-26132 SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")
-
2611-29250 NUT, STEERING ARM BRACKET FASTENING SCREWNUT, STEERING ARM BRACKET FASTENING SCREW
