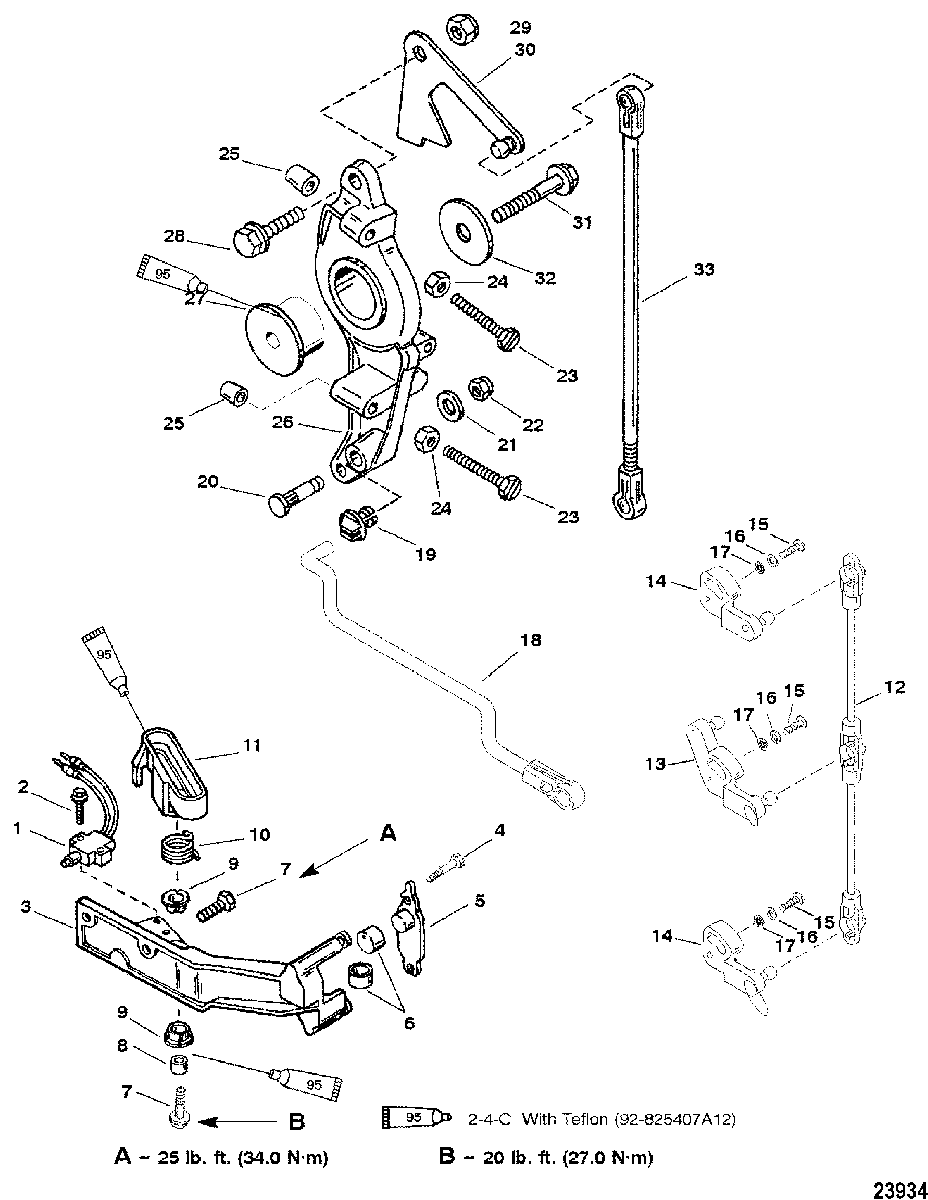

ANCHOR BRACKET/THROTTLE LINKAGE для Mercury - 225 (3.0L CARB) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
187-8M0052931 SWITCH
(OIL INJECTION)SWITCH
(OIL INJECTION) -
210-82470620 SCREW, (M3.5 x 20)
(OIL INJECTION)SCREW, (M3.5 x 20)
(OIL INJECTION) -
3824010T05 BRACKETBRACKET
-
410-42975 DRIVE SCREWDRIVE SCREW
-
5824016 LATCHLATCH
-
6824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
710-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
823-824013 BUSHINGBUSHING
-
923-812707 BUSHINGBUSHING
-
1024-824014 SPRINGSPRING
-
118240111 GUIDE, RollerGUIDE, Roller
-
12825204A2 LINK KIT, ThrottleLINK KIT, Throttle
-
13NSS NOT SOLD SEPARATE, Throttle LeverNOT SOLD SEPARATE, Throttle Lever
-
14NSS NOT SOLD SEPARATE, Throttle LeverNOT SOLD SEPARATE, Throttle Lever
-
1510-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1713-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
18828500 LINK, ThrottleLINK, Throttle
-
1923-932481 BUSHINGBUSHING
-
2042927 INSERTINSERT
-
2112-35459 WASHERWASHER
-
2211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2310-40124 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
2411-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2542942 CAPCAP
-
268M0040987 LEVER, Throttle ControlLEVER, Throttle Control
-
2723-821113 BUSHINGBUSHING
-
2810-82155025 SCREW, (M8 x 25) Stainless Steel
(OIL INJECTION)SCREW, (M8 x 25) Stainless Steel
(OIL INJECTION) -
2911-401388 NUT, (M8)
(OIL INJECTION)NUT, (M8)
(OIL INJECTION) -
30826205 BRACKET, Oil Link
(OIL INJECTION)BRACKET, Oil Link
(OIL INJECTION) -
3110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
3212-36042 WASHERWASHER
-
33878190 LINK
(OIL INJECTION)LINK
(OIL INJECTION)
