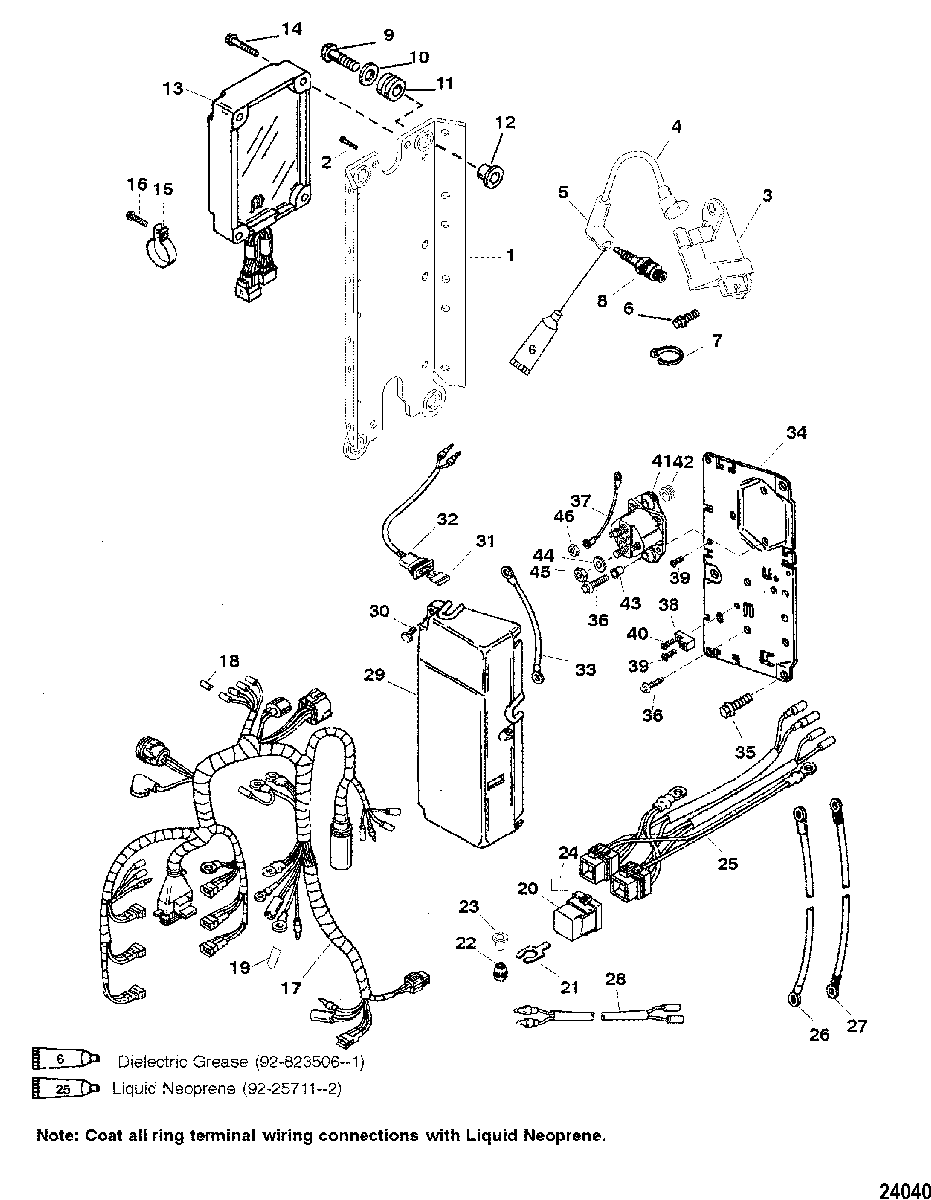

ELECTRICAL COMPONENTS для Mercury - 225 (3.0L CARB) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
1825296T1 PLATE, Electrical MountingPLATE, Electrical Mounting
-
210-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
3827509T7 CDM MODULE ASSEMBLYCDM MODULE ASSEMBLY
-
484-857124A1 CABLE ASSEMBLY, Hi-Tension
(SINGLE CABLE)CABLE ASSEMBLY, Hi-Tension
(SINGLE CABLE) -
585-857074A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
610-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
833-941 SPARK PLUG (CHAMPION #QL77CC)SPARK PLUG (CHAMPION #QL77CC)
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1012-49436 WASHERWASHER
-
1125-825380001 GROMMETGROMMET
-
1223-19064 BUSHINGBUSHING
-
13830044T07 ECU, Engine Control Unit
(NON SEAPRO/MARATHON)ECU, Engine Control Unit
(NON SEAPRO/MARATHON) -
13830044T16 ECU, Engine Control Unit
(SEAPRO/MARATHON)ECU, Engine Control Unit
(SEAPRO/MARATHON) -
1410-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
1554-826188 CLAMPCLAMP
-
1610-82104520 SCREW, (M5 x 20) (M5 X 20)SCREW, (M5 x 20) (M5 X 20)
-
1784-825433A10 HARNESS ASSEMBLY, IgnitionHARNESS ASSEMBLY, Ignition
-
1813541 PLUG, MalePLUG, Male
-
1913540 CAP, FemaleCAP, Female
-
20882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
21828102 BRACKETBRACKET
-
2225-818967 GROMMETGROMMET
-
2323-818968 BUSHINGBUSHING
-
24NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
2584-826802A2 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2684-88439A34 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2784-88439A24 CABLE ASSEMBLY, Negative - BatteryCABLE ASSEMBLY, Negative - Battery
-
2884-827356A2 HARNESS ASSEMBLY (26 IN.)
(OIL INJECTION)HARNESS ASSEMBLY (26 IN.)
(OIL INJECTION) -
298216091 COVERCOVER
-
3010-82239320 SCREW, (M5 x 20) (M5 X 20)SCREW, (M5 x 20) (M5 X 20)
-
3188-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
3288-19637 SOCKET, FuseSOCKET, Fuse
-
3384-93388A8 CABLE ASSEMBLY, (12.5 Inchs) BlackCABLE ASSEMBLY, (12.5 Inchs) Black
-
348212282 PLATE, Solenoid MountingPLATE, Solenoid Mounting
-
3510-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
3610-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3784-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
3886-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
4010-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
4189-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
4225-822179 GROMMETGROMMET
-
4323-818968 BUSHINGBUSHING
-
4413-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
4511-68292 NUT, (.312-18)NUT, (.312-18)
-
4611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
