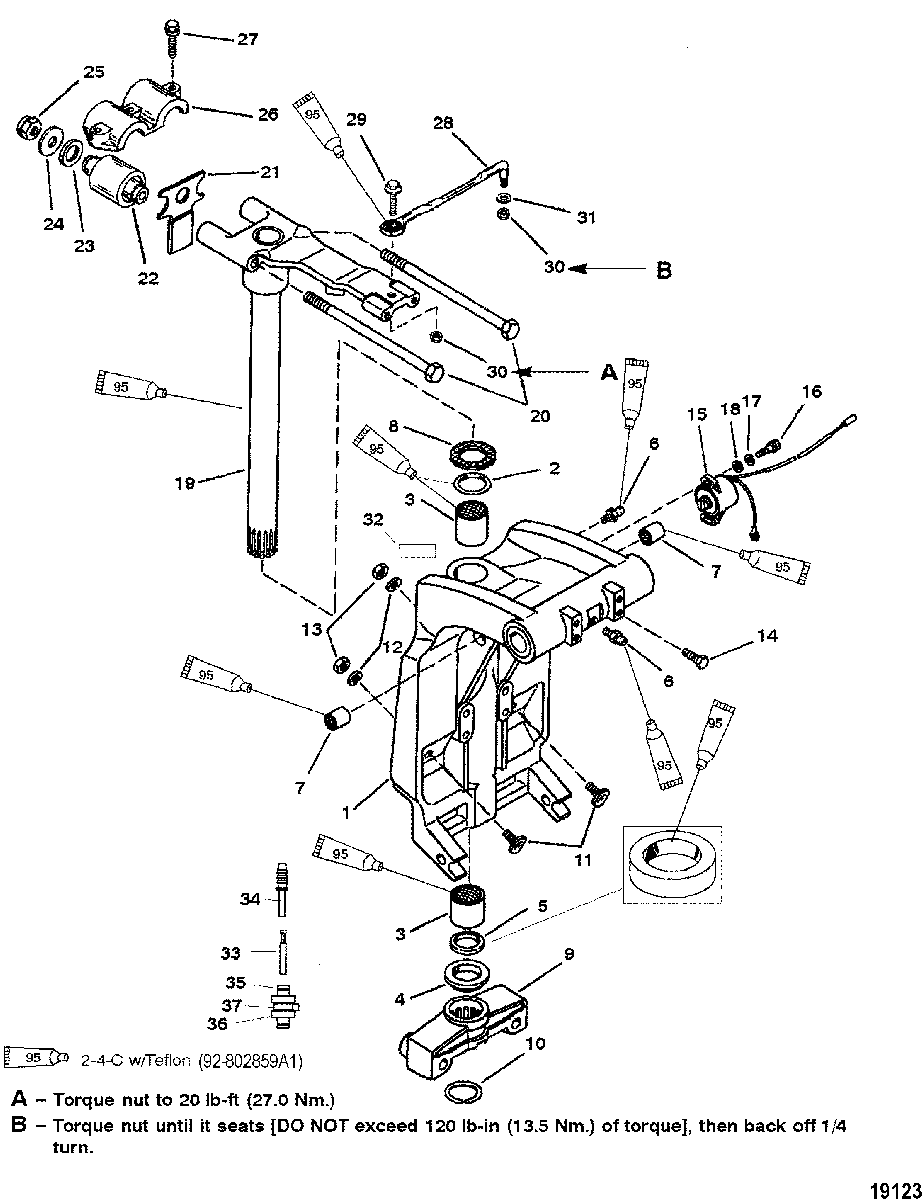

SWIVEL BRACKET AND STEERING ARM для Mercury - 225 (3.0L CARB) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, BlackSWIVEL BRACKET ASSEMBLY, Black
-
225-33504 O-RINGO-RING
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
526-87735 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
9814084F1 YOKE, Bottom
(LONG - CARBON STEEL)YOKE, Bottom
(LONG - CARBON STEEL) -
9826364T YOKE, Bottom
(XL/XXL-STAINLESS STEEL)YOKE, Bottom
(XL/XXL-STAINLESS STEEL) -
1053-67684 RING, RetainingRING, Retaining
-
118M0045383 STRIKER PLATESTRIKER PLATE
-
1213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1311-46335 NUT, (.375-24)NUT, (.375-24)
-
1410-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
158M0098273 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
1610-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
1713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1812-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1917-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm
(LONG - CARBON STEEL)SWIVEL PIN ASSEMBLY, Steering Arm
(LONG - CARBON STEEL) -
1917-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
(XL/XXL-STAINLESS STEEL)SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
(XL/XXL-STAINLESS STEEL) -
2010-8M0141069 SCREW, (M12 x 190)SCREW, (M12 x 190)
-
21824998001 BUMPERBUMPER
-
228163851 MOUNT, UpperMOUNT, Upper
-
2312-8154371 WASHERWASHER
-
2412-815436 WASHERWASHER
-
2511-896963 NUT, (M12)NUT, (M12)
-
268M0036783 CLAMPCLAMP
-
2710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2892876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2910-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
3011-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
3112-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
32NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
3322-859732 PLUGPLUG
-
3422-859731 FITTING, AdapterFITTING, Adapter
-
3522-859448T FITTINGFITTING
-
3625-821555001 GROMMETGROMMET
-
3754-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
