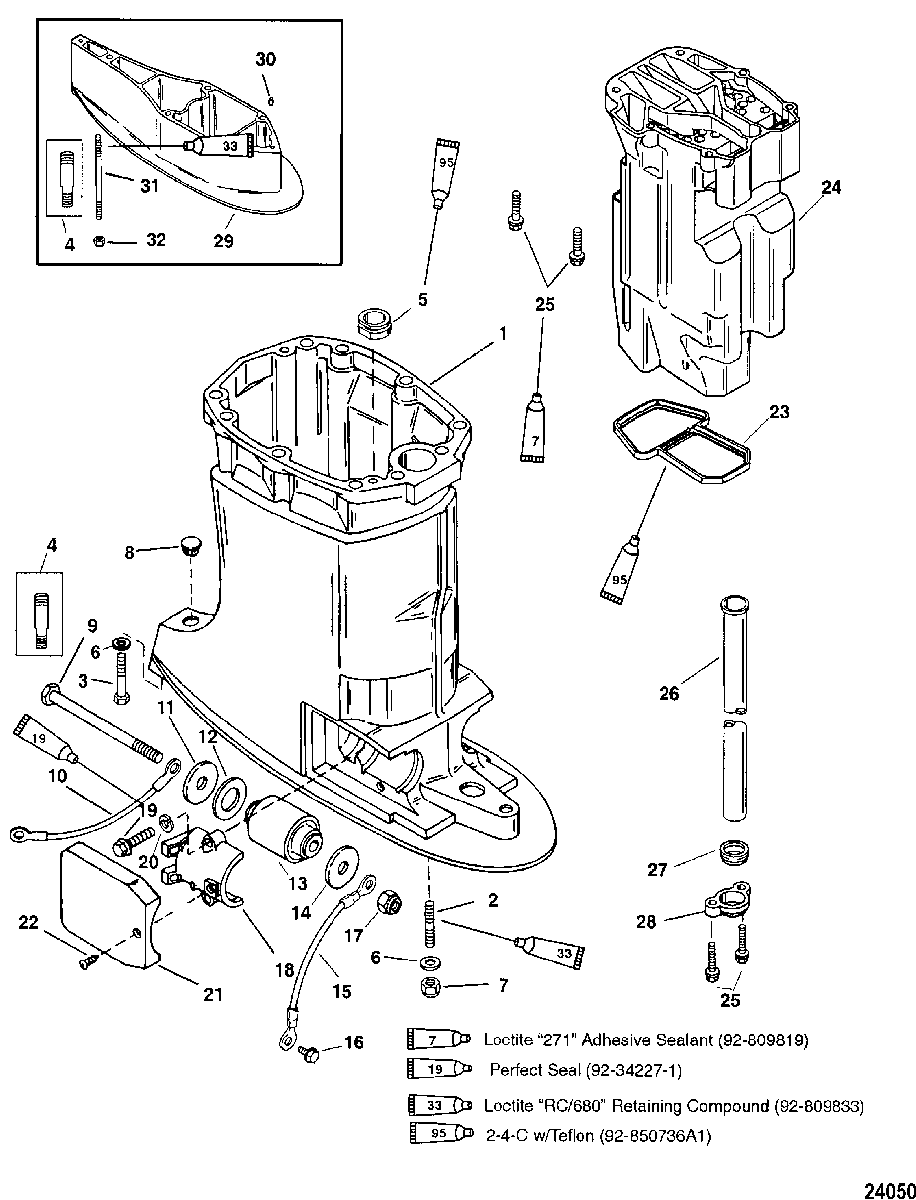

DRIVESHAFT HOUSING AND EXHAUST TUBE для Mercury - 225 (3.0L CARB) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(LONG) SN# 0G871322 & BelowHOUSING ASSEMBLY, Driveshaft
(LONG) SN# 0G871322 & Below -
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(LONG) SN# 0G871323 & UpHOUSING ASSEMBLY, Driveshaft
(LONG) SN# 0G871323 & Up -
13519-832938A06 HOUSING ASSEMBLY, Driveshaft
(X/XX-LONG)HOUSING ASSEMBLY, Driveshaft
(X/XX-LONG) -
216-8M0070951 STUD, (M12 x 52)
(LONG/X-LONG)STUD, (M12 x 52)
(LONG/X-LONG) -
310-82130130 SCREW, (M10 x 30)
(LONG/X-LONG) SN# 0G871322 & BelowSCREW, (M10 x 30)
(LONG/X-LONG) SN# 0G871322 & Below -
310-857136 SCREW, (M12 x 35)
(LONG/X-LONG) SN# 0G871323 & UpSCREW, (M12 x 35)
(LONG/X-LONG) SN# 0G871323 & Up -
416-8M0036404 STEPPED STUD
(54MM X 10/12)STEPPED STUD
(54MM X 10/12) -
416-858570 STEPPED STUD
(175MM X 10/12)STEPPED STUD
(175MM X 10/12) -
525-8331231 GROMMETGROMMET
-
612-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
711-896895 NUT, (M12 x 1.75)NUT, (M12 x 1.75)
-
819-64649 PLUGPLUG
-
910-898834 SCREW, (M14 x 178)SCREW, (M14 x 178)
-
1088238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1112-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1212-8154331 WASHER, (1.25 x 2.00 x .19)WASHER, (1.25 x 2.00 x .19)
-
138137711 MOUNTMOUNT
-
1412-825190 WASHERWASHER
-
1588238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1610-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1711-896602 NUTNUT
-
18879150A90 CLAMPCLAMP
-
1910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2013-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
21879150A90 COVER, BlackCOVER, Black
-
2210-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
238329321 SEALSEAL
-
24833116A7 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
-NSS NOT SOLD SEPARATE, StrainerNOT SOLD SEPARATE, Strainer
-
2510-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2632-8M0042785 TUBE, Water
(LONG)TUBE, Water
(LONG) -
2632-8M0042786 TUBE, Water
(X-LONG)TUBE, Water
(X-LONG) -
2632-8M0042787 TUBE, Water
(XX-LONG)TUBE, Water
(XX-LONG) -
27832940001 SEALSEAL
-
288329391 CLAMPCLAMP
-
298M0105088 SPACER
(XX-LONG)SPACER
(XX-LONG) -
3017-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-LONG)PIN, Dowel - Without Hole (.375 x .625)
(XX-LONG) -
3116-8M0008047 STUD, (M12 x 179)
(XX-LONG)STUD, (M12 x 179)
(XX-LONG) -
3116-824118 STUD (M10 X 1.5 X 173)
(XX-LONG)STUD (M10 X 1.5 X 173)
(XX-LONG) -
3211-400636 NUT (M10 X 1.5)
(XX-LONG)NUT (M10 X 1.5)
(XX-LONG)
