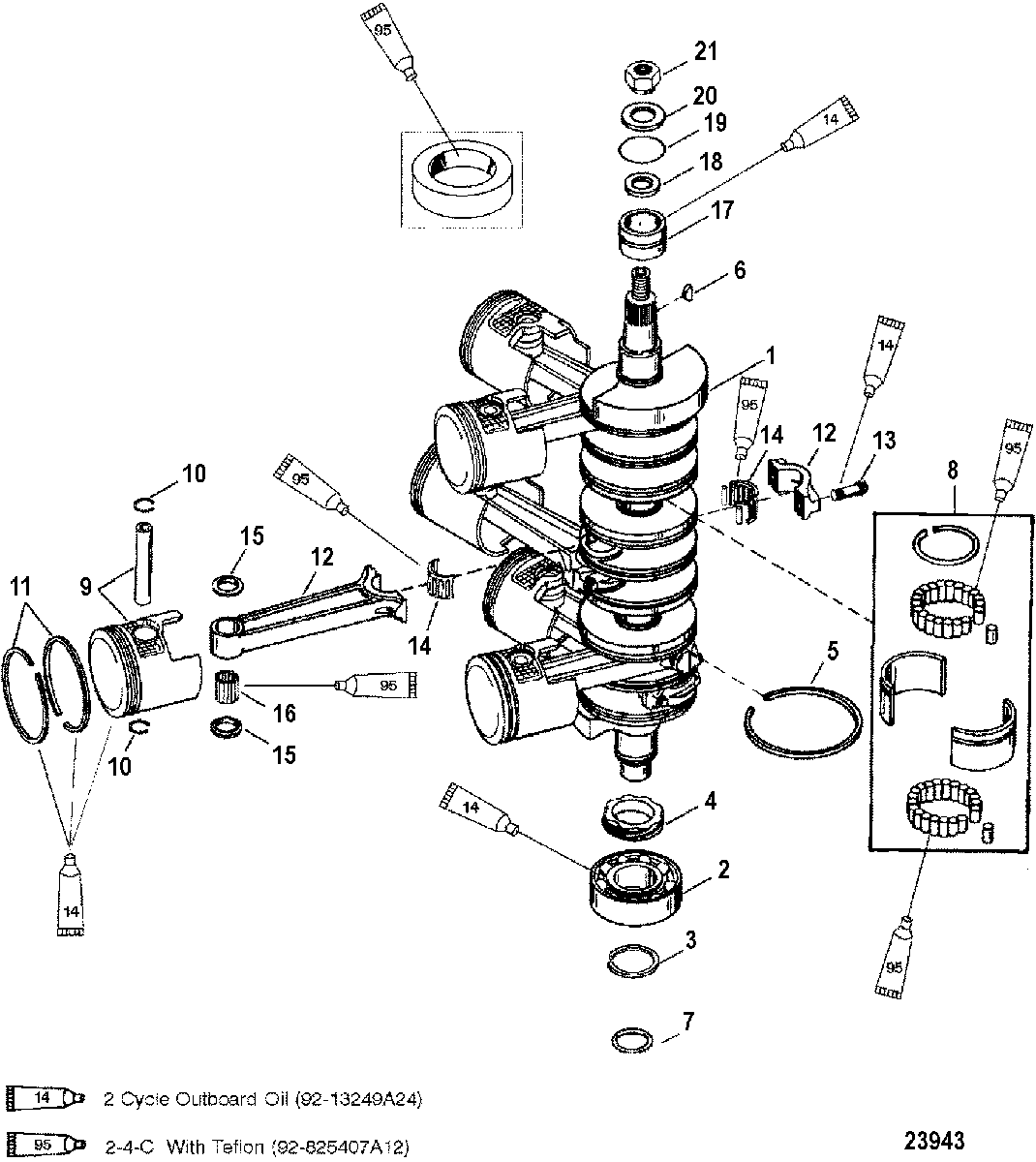

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1482-9784A4 CRANKSHAFT
SN# 0G303045 & BelowCRANKSHAFT
SN# 0G303045 & Below -
1482-9784A4 CRANKSHAFT
SN# 0G303046 & UpCRANKSHAFT
SN# 0G303046 & Up -
230-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
353-67446 RINGRING
-
443-19301 GEARGEAR
-
539-843198T01 RINGRING
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)
SN# 0G303046 & UpO-RING, (.859 x .139)
SN# 0G303046 & Up -
88M0113288 RACE ASSEMBLY, BearingRACE ASSEMBLY, Bearing
-
9700-858295T14 PISTON ASSEMBLY
STBD-STANDARDPISTON ASSEMBLY
STBD-STANDARD -
9700-858294T14 PISTON ASSEMBLY
PORT-STANDARDPISTON ASSEMBLY
PORT-STANDARD -
9700-878572A2 PISTON ASSEMBLY
STBD-.015 O/SPISTON ASSEMBLY
STBD-.015 O/S -
9700-878571A2 PISTON ASSEMBLY
PORT-.015 O/SPISTON ASSEMBLY
PORT-.015 O/S -
9700-878574A2 PISTON ASSEMBLY
STBD-.030 O/SPISTON ASSEMBLY
STBD-.030 O/S -
9700-878573A2 PISTON ASSEMBLY
PORT-.030 O/SPISTON ASSEMBLY
PORT-.030 O/S -
1053-8320811 LOCK RINGLOCK RING
-
1139-827179A12 RING SET, Piston
STANDARDRING SET, Piston
STANDARD -
1139-875252A12 RING SET, Piston
.015 O/SRING SET, Piston
.015 O/S -
1139-875257A12 RING SET, Piston
.030 O/SRING SET, Piston
.030 O/S -
12600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1310-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1431-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
1512-88263 THRUST WASHERTHRUST WASHER
-
1629-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
1731-816773A2 BEARING ASSEMBLY (UPPER)BEARING ASSEMBLY (UPPER)
-
1826-859093 SEAL, OilSEAL, Oil
-
1925-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
2012-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
2111-42979 NUT, (M16)NUT, (M16)
-
-27-814195A93 GASKET SETGASKET SET
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
