GEAR HOUSING CHART(S/N-0G437999 AND BELOW) для Mercury - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-

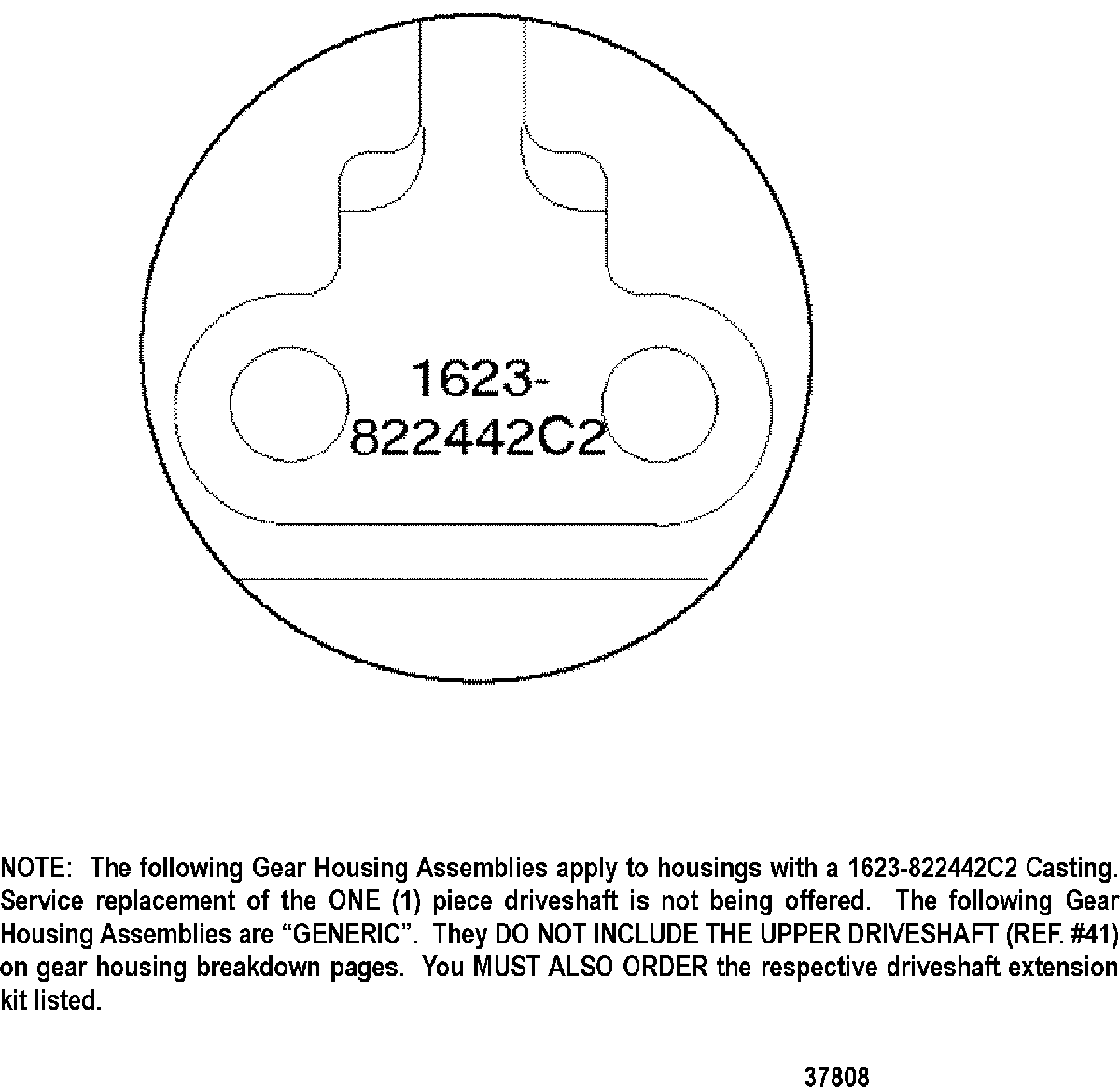

-1623-822442T77 GEAR HOUSING ASSEMBLY
(BLACK) STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(BLACK) STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-822442T78 GEAR HOUSING ASSEMBLY
(GRAY) STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(GRAY) STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-857113T2 GEAR HOUSING ASSEMBLY
(BLACK) COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(BLACK) COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T82 GEAR HOUSING ASSEMBLY
(GRAY) COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(GRAY) COUNTER ROTATION 1.75:1 GEAR RATIO -
-45-827754A1 EXTENSION KIT, Driveshaft (LONG-20 IN.)
13 SPLINESEXTENSION KIT, Driveshaft (LONG-20 IN.)
13 SPLINES -
-45-827755A1 EXTENSION KIT, Driveshaft (X-LONG-25 IN.)
13 SPLINESEXTENSION KIT, Driveshaft (X-LONG-25 IN.)
13 SPLINES -
-45-826353A1 EXTENSION KIT, Driveshaft (XX-LONG-30 IN.)
13 SPLINESEXTENSION KIT, Driveshaft (XX-LONG-30 IN.)
13 SPLINES
