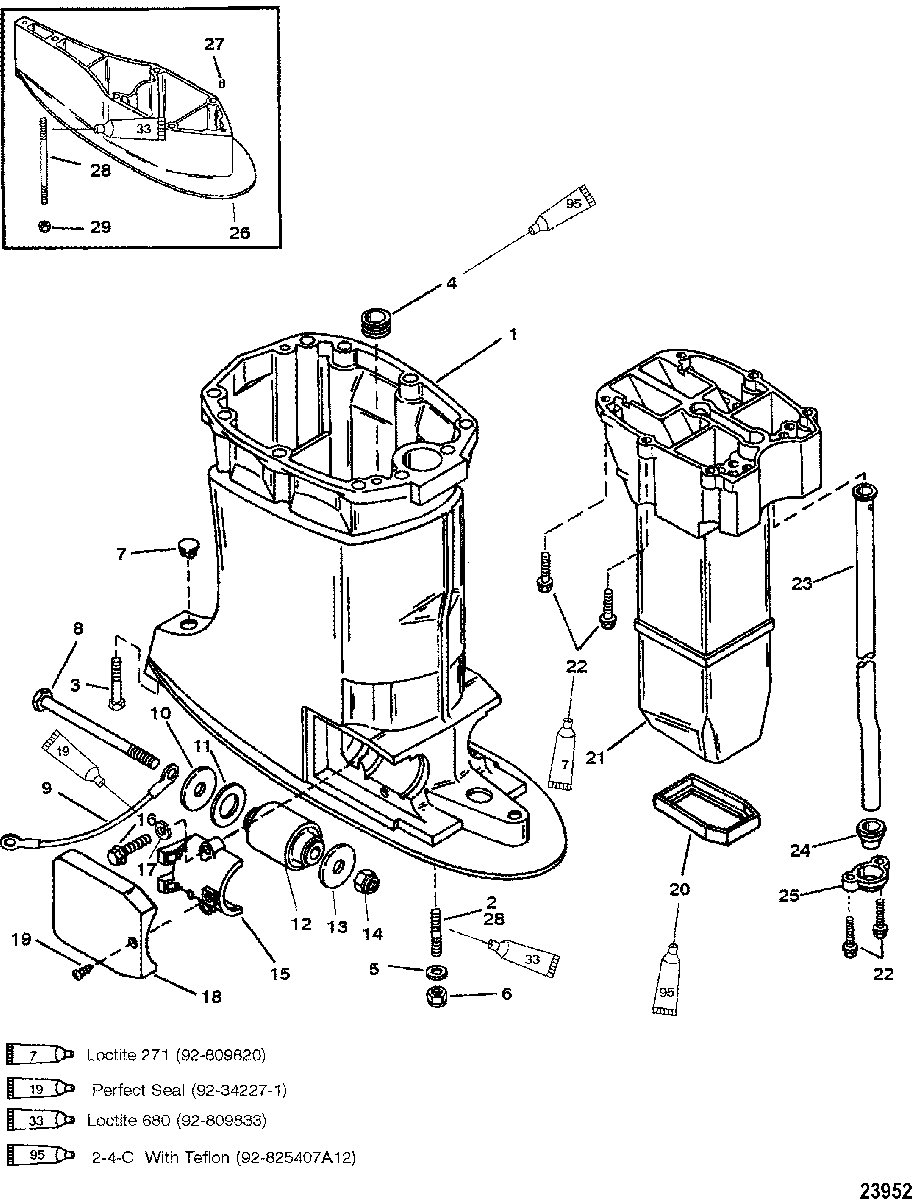

DRIVESHAFT HOUSING(S/N-0G438000 AND UP) для Mercury - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(BLACK-LONG)HOUSING ASSEMBLY, Driveshaft
(BLACK-LONG) -
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(GRAY-LONG)HOUSING ASSEMBLY, Driveshaft
(GRAY-LONG) -
13519-832938A06 HOUSING ASSEMBLY, Driveshaft
(BLACK-X/XX-LONG)HOUSING ASSEMBLY, Driveshaft
(BLACK-X/XX-LONG) -
13519-832938A4 HOUSING ASSEMBLY, Driveshaft
(GRAY-X/XX-LONG)HOUSING ASSEMBLY, Driveshaft
(GRAY-X/XX-LONG) -
13519-832938A3 HOUSING ASSEMBLY, Driveshaft
(WHITE-X/XX-LONG)HOUSING ASSEMBLY, Driveshaft
(WHITE-X/XX-LONG) -
216-8M0070951 STUD (M12 X 1.75 X 50)STUD (M12 X 1.75 X 50)
-
310-82130130 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
425-8331231 GROMMETGROMMET
-
512-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
611-4013812 NUT (M12 X 1.75)NUT (M12 X 1.75)
-
719-64649 PLUGPLUG
-
810-898834 SCREW, (M14 x 178)SCREW, (M14 x 178)
-
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1112-8154331 WASHERWASHER
-
128137711 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUTNUT
-
15879150A90 CLAMPCLAMP
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
18879150A90 COVER, Black
(BLACK)COVER, Black
(BLACK) -
18818645F2 COVER
(GRAY)COVER
(GRAY) -
18818645F4 COVER
(WHITE)COVER
(WHITE) -
1910-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
208329321 SEALSEAL
-
21833116A7 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
2210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2332-8M0042785 TUBE, Water
(LONG)TUBE, Water
(LONG) -
2332-8M0042786 TUBE, Water
(X-LONG)TUBE, Water
(X-LONG) -
2332-8M0042787 TUBE, Water
(XX-LONG)TUBE, Water
(XX-LONG) -
24832940001 SEALSEAL
-
258329391 CLAMPCLAMP
-
268M0105088 SPACER
(BLACK) XX-LONGSPACER
(BLACK) XX-LONG -
268M0105088 SPACER
(GRAY) XX-LONGSPACER
(GRAY) XX-LONG -
268M0105088 SPACER
(WHITE) XX-LONGSPACER
(WHITE) XX-LONG -
2717-43044 PIN, Dowel - Without Hole (.375 x .625)
XX-LONGPIN, Dowel - Without Hole (.375 x .625)
XX-LONG -
2816-8M0008047 STUD (M12 X 1.75 X 183)
XX-LONGSTUD (M12 X 1.75 X 183)
XX-LONG -
2816-824118 STUD (M10 X 1.5 X 173)
XX-LONGSTUD (M10 X 1.5 X 173)
XX-LONG -
2911-400636 NUT (M10 X 1.5)
XX-LONGNUT (M10 X 1.5)
XX-LONG
