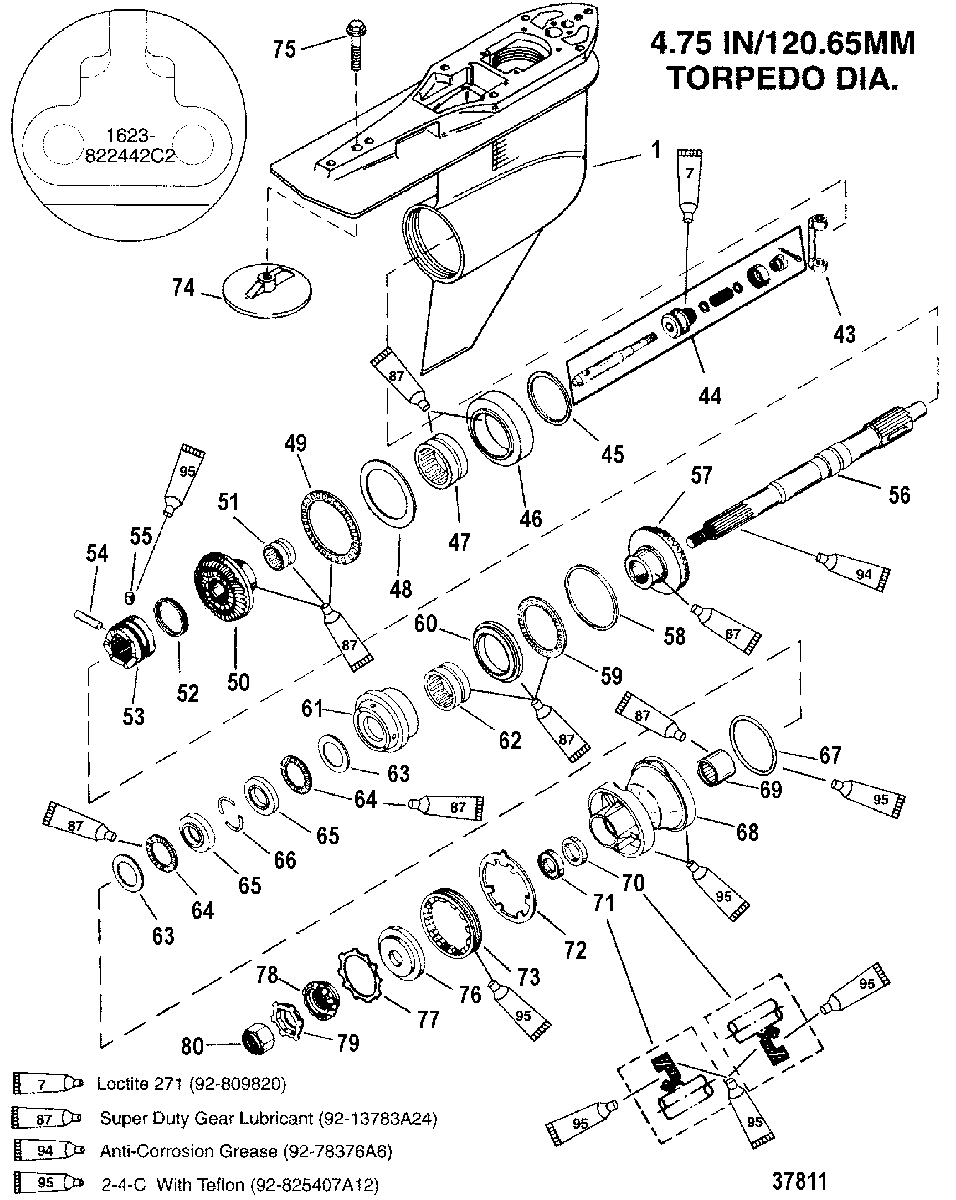

G/HSG, PROP-COUNTER-0G437999 AND BELOW-1623-822442C2 для Mercury - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
11623-822442A25 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11623-822442A26 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
43823903 SHIFT CRANKSHIFT CRANK
-
44818349T1 SPOOL KITSPOOL KIT
-
4515-47397A1 SHIM SETSHIM SET
-
46815362T1 ADAPTOR ASSEMBLY, Bearing
1623-822442C2 CASTINGADAPTOR ASSEMBLY, Bearing
1623-822442C2 CASTING -
46828830A2 ADAPTOR ASSEMBLY, Bearing
1623-822442C3 CASTINGADAPTOR ASSEMBLY, Bearing
1623-822442C3 CASTING -
4731-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
4812-815481 THRUST WASHERTHRUST WASHER
-
4931-815480 BEARING, ThrustBEARING, Thrust
-
5043-826288T1 GEAR ASSEMBLY, Reverse
(1.75:1 GEAR RATIO - 12/21)GEAR ASSEMBLY, Reverse
(1.75:1 GEAR RATIO - 12/21) -
5131-815482 BEARING, RollerBEARING, Roller
-
5224-30893 SPRINGSPRING
-
5352-853594T SLIDING CLUTCHSLIDING CLUTCH
-
5417-8M0100263 PIN, CrossPIN, Cross
-
5517-78909 PIN, DetentPIN, Detent
-
5644-8M0140448 PROPELLER SHAFTPROPELLER SHAFT
-
5743-826287A1 GEAR ASSEMBLY, Forward
(1.75:1 GEAR RATIO - 12/21) INCLUDES PINIONGEAR ASSEMBLY, Forward
(1.75:1 GEAR RATIO - 12/21) INCLUDES PINION -
5823-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
5823-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
5823-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
5823-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
5823-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
5823-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
5823-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
5823-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
5823-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
5823-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
5823-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
5823-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
5823-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
-
5931-15841 BEARING, RollerBEARING, Roller
-
6012-17616 THRUST RINGTHRUST RING
-
61818292A1 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6231-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
6312-18448 THRUST WASHERTHRUST WASHER
-
6431-15842 BEARING, ThrustBEARING, Thrust
-
658182911 RACE, ThrustRACE, Thrust
-
66814605 KEEPERKEEPER
-
6725-31534 O-RINGO-RING
-
68818290T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6931-30956T BEARING, NeedleBEARING, Needle
-
7026-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
7126-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7214-18323 TAB WASHERTAB WASHER
-
738M2000347 RETAINERRETAINER
-
7497-76214Q5 ANODE KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTANODE KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7510-806327 SCREW, (.437-14 x 1.750)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTSCREW, (.437-14 x 1.750)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7612-835467Q01 THRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTTHRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7713-423511 LOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTLOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7812-31211Q03 WASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTWASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7914-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
8011-52707Q1 PROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTPROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
-26-816575A5 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
