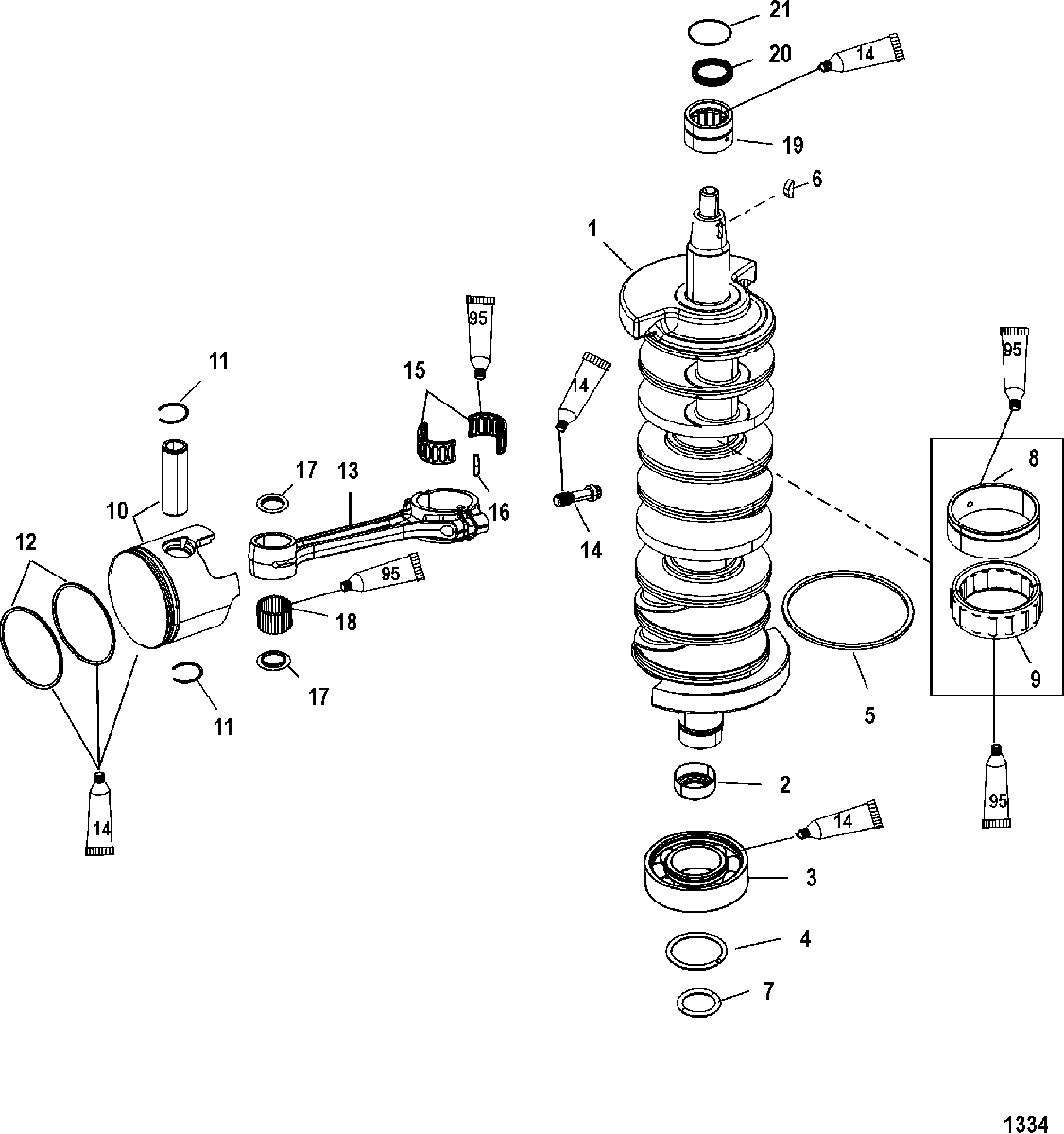

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 225 (DFI) 0T599000 THRU 0T800999
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2NSS NOT SOLD SEPARATE, Wear SleeveNOT SOLD SEPARATE, Wear Sleeve
-
330-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
453-67446 RINGRING
-
539-843198T01 RINGRING
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
831-88270A02 RACE ASSEMBLYRACE ASSEMBLY
-
9NSS NOT SOLD SEPARATE, Needle RollerNOT SOLD SEPARATE, Needle Roller
-
102720-881055T10 PISTON ASSEMBLY
(STARBOARD-STANDARD)PISTON ASSEMBLY
(STARBOARD-STANDARD) -
102720-889640A02 PISTON ASSEMBLY (Starboard - .015 Oversize)PISTON ASSEMBLY (Starboard - .015 Oversize)
-
102720-889642A02 PISTON ASSEMBLY (Starboard - .030 Oversize)PISTON ASSEMBLY (Starboard - .030 Oversize)
-
102720-881054T10 PISTON ASSEMBLY
(PORT-STANDARD)PISTON ASSEMBLY
(PORT-STANDARD) -
102720-889639A02 PISTON ASSEMBLY (Port - .015 Oversize)PISTON ASSEMBLY (Port - .015 Oversize)
-
102720-889641A02 PISTON ASSEMBLY (Port - .030 Oversize)PISTON ASSEMBLY (Port - .030 Oversize)
-
1140-841202 RINGRING
-
1239-827179A12 RING SET, PistonRING SET, Piston
-
13600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1531-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
16NSS NOT SOLD SEPARATE, Needle Roller BearingNOT SOLD SEPARATE, Needle Roller Bearing
-
1712-88263 THRUST WASHERTHRUST WASHER
-
1829-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
1931-816773A2 BEARING ASSEMBLY (UPPER)BEARING ASSEMBLY (UPPER)
-
2026-859093 SEALSEAL
-
2125-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-854198A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-877869A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
