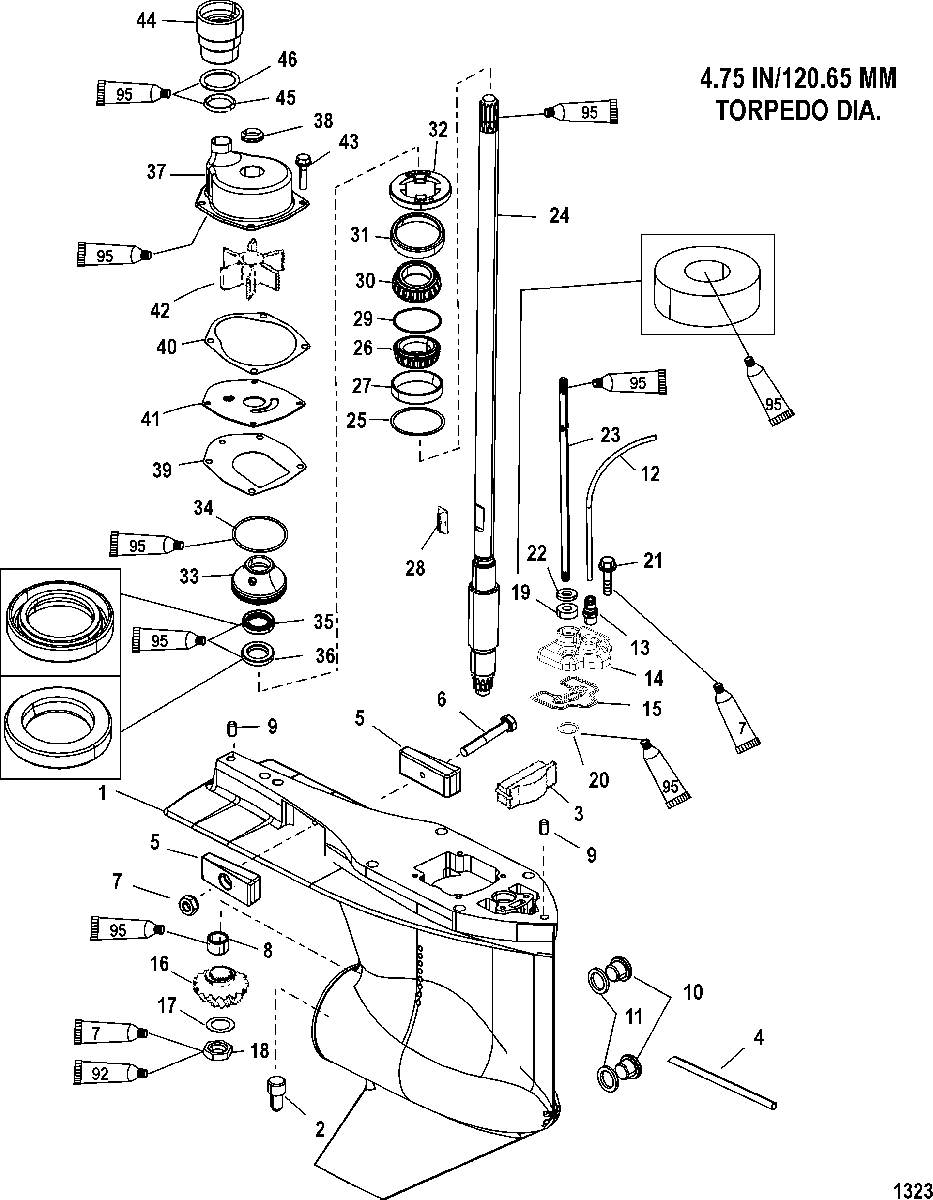

GEAR HOUSING(DRIVESHAFT)(STANDARD/COUNTER ROTATION) для Mercury - 225 (DFI) 0T599000 THRU 0T800999
-
№АртикулНазвание
-
-1623-859399T13 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(STANDARD)(LONG)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(STANDARD)(LONG) -
-1623-859399T14 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(STANDARD)(X-LONG)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(STANDARD)(X-LONG) -
-1623-859399T15 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(STANDARD)(XX-LONG)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(STANDARD)(XX-LONG) -
-1623-859399T16 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(COUNTER ROTATION)(X-LONG)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(COUNTER ROTATION)(X-LONG) -
-1623-859399T17 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(COUNTER ROTATION)(XX-LONG)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(COUNTER ROTATION)(XX-LONG) -
11623-859399T18 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
217-379721 PINPIN
-
3821526001 FILLER BLOCKFILLER BLOCK
-
4859402 PITOT TUBEPITOT TUBE
-
597-826134Q ANODEANODE
-
610-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
711-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
831-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1010-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
1112-191833 WASHERWASHER
-
1232-85944975 TUBING, (72.00 Inches Bulk)
(LONG - 7 IN)TUBING, (72.00 Inches Bulk)
(LONG - 7 IN) -
1232-85944975 TUBING, (72.00 Inches Bulk)
(X-LONG - 12 IN)TUBING, (72.00 Inches Bulk)
(X-LONG - 12 IN) -
1232-85944975 TUBING, (72.00 Inches Bulk)
(XX-LONG - 17 IN)TUBING, (72.00 Inches Bulk)
(XX-LONG - 17 IN) -
1322-881866 FITTINGFITTING
-
14858934 COVERCOVER
-
1527-858935 GASKETGASKET
-
16NSS NOT SOLD SEPARATE, Gear-Pinion
(1.75:1 - 12/21)(Part of 43-859321A3 or 43-828695A1)NOT SOLD SEPARATE, Gear-Pinion
(1.75:1 - 12/21)(Part of 43-859321A3 or 43-828695A1) -
1712-92721 WASHERWASHER
-
1811-35921 NUT, (.625-18)NUT, (.625-18)
-
1926-8164641 SEAL, OilSEAL, Oil
-
2025-36318 O-RING, (.799)O-RING, (.799)
-
2110-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2212-77674 WASHERWASHER
-
23824145 SHIFT SHAFT (LOWER)SHIFT SHAFT (LOWER)
-
2445-881938 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
2445-881942 DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
2445-881943 DRIVESHAFT
(XX-LONG)DRIVESHAFT
(XX-LONG) -
2515-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
2631-48939A2 BEARING, Tapered RollerBEARING, Tapered Roller
-
27NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
2828-8M0032833 KEYKEY
-
2915-8M0063267 SHIM SETSHIM SET
-
3031-36387A1 BEARING, RollerBEARING, Roller
-
31NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
328245191 RETAINERRETAINER
-
33807929A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
3425-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3526-66302 SEAL, OilSEAL, Oil
-
3626-66302 SEAL, OilSEAL, Oil
-
37817275A2 HOUSING KIT, Upper Water PumpHOUSING KIT, Upper Water Pump
-
3826-816575A2 SEAL KITSEAL KIT
-
3927-430331 GASKETGASKET
-
4027-8172771 GASKETGASKET
-
418172761 FACEPLATEFACEPLATE
-
4247-43026T2 IMPELLERIMPELLER
-
4310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
44832942A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
4525-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
4625-35027 O-RING, (1.046)O-RING, (1.046)
-
-817275A5 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
-
-26-816575A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
