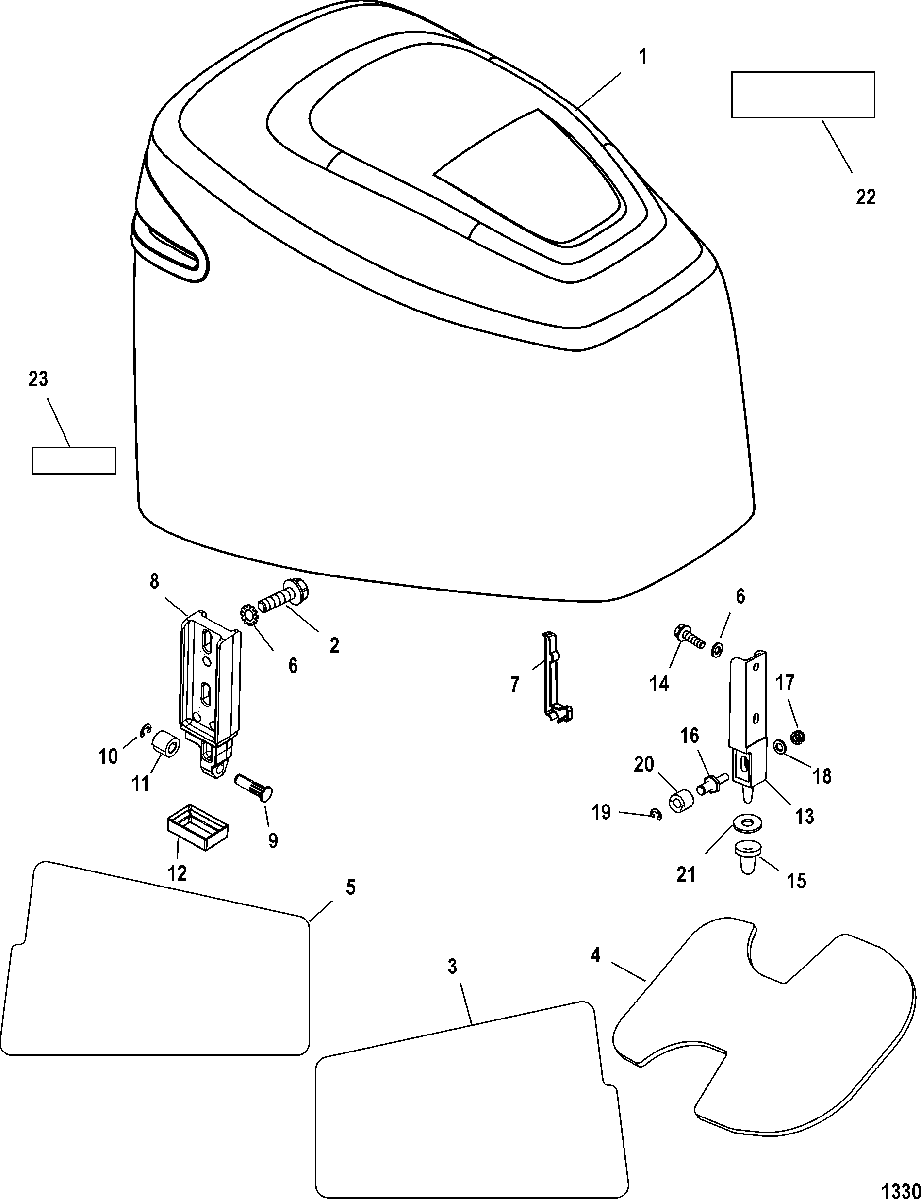

TOP COWL для Mercury - 225 (DFI) 0T599000 THRU 0T800999
-
№АртикулНазвание
-
1100-8M0059965 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
1100-8M0059966 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
210-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3884041A04 SOUND BLANKET KITSOUND BLANKET KIT
-
4NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
5NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
613-93702 WASHER, (.250 External Star)WASHER, (.250 External Star)
-
7826639T COVERCOVER
-
8850682A06 HOOK ASSEMBLY, Rear LatchHOOK ASSEMBLY, Rear Latch
-
9NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
1053-8237951 RING, RetainingRING, Retaining
-
11815263 ROLLERROLLER
-
1225-850685T02 GROMMETGROMMET
-
138M0036792 BRACKET, FrontBRACKET, Front
-
1410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15815477 BUMPER, LatchBUMPER, Latch
-
168155381 PIN, RollPIN, Roll
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
2112-87161 WASHERWASHER
-
22NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
-
23NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
