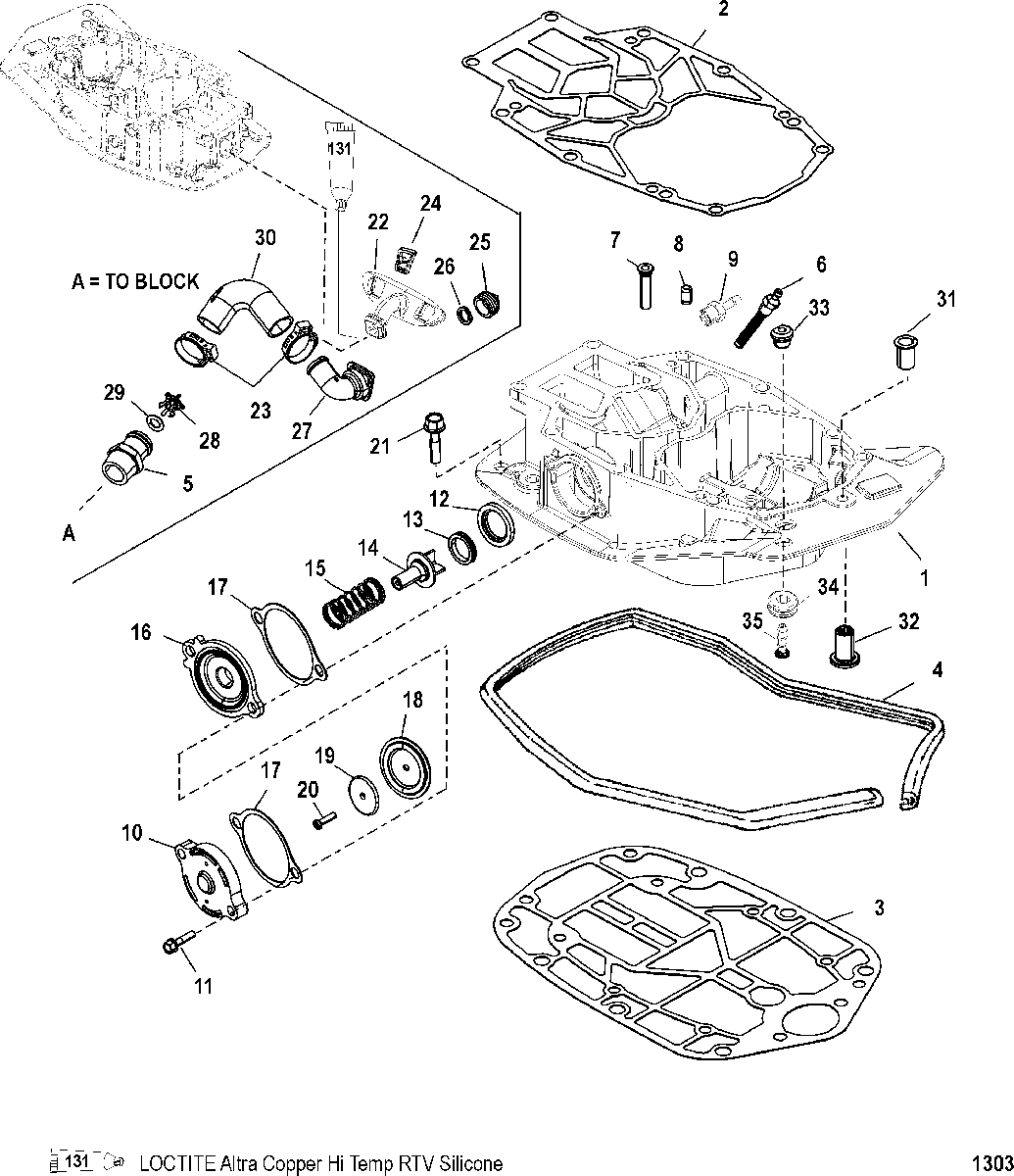

EXHAUST PLATE для Mercury - 225 (DFI) 0T599000 THRU 0T800999
-
№АртикулНазвание
-
1832935A17 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (LOWER)GASKET (LOWER)
-
48M0043157 SEALSEAL
-
522-8320761 FITTING, Check ValveFITTING, Check Valve
-
635-8348084 STRAINERSTRAINER
-
721-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
817-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
922-887603 FITTINGFITTING
-
1065663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
12814190 CARRIERCARRIER
-
1325-814191 GROMMETGROMMET
-
14814189 POPPETPOPPET
-
1524-64878 SPRING, (Black)SPRING, (Black)
-
1665664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1727-88907003 GASKETGASKET
-
18648771 DIAPHRAGMDIAPHRAGM
-
1912-76451 WASHERWASHER
-
2010-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
22850306A04 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2354-850896 CLAMP, (28.6)CLAMP, (28.6)
-
2422-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2519-821908 PLUGPLUG
-
2612-821915 WASHERWASHER
-
2722-8596001 FITTINGFITTING
-
288219631 CHECK VALVECHECK VALVE
-
2925-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
3032-859626A1 FLUSH HOSE KIT (INLET)FLUSH HOSE KIT (INLET)
-
3123-48237 BUSHINGBUSHING
-
3243585 COUPLINGCOUPLING
-
3325-12602002 GROMMETGROMMET
-
3425-822002 GROMMETGROMMET
-
3522-94848 FITTINGFITTING
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-854198A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-877869A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
