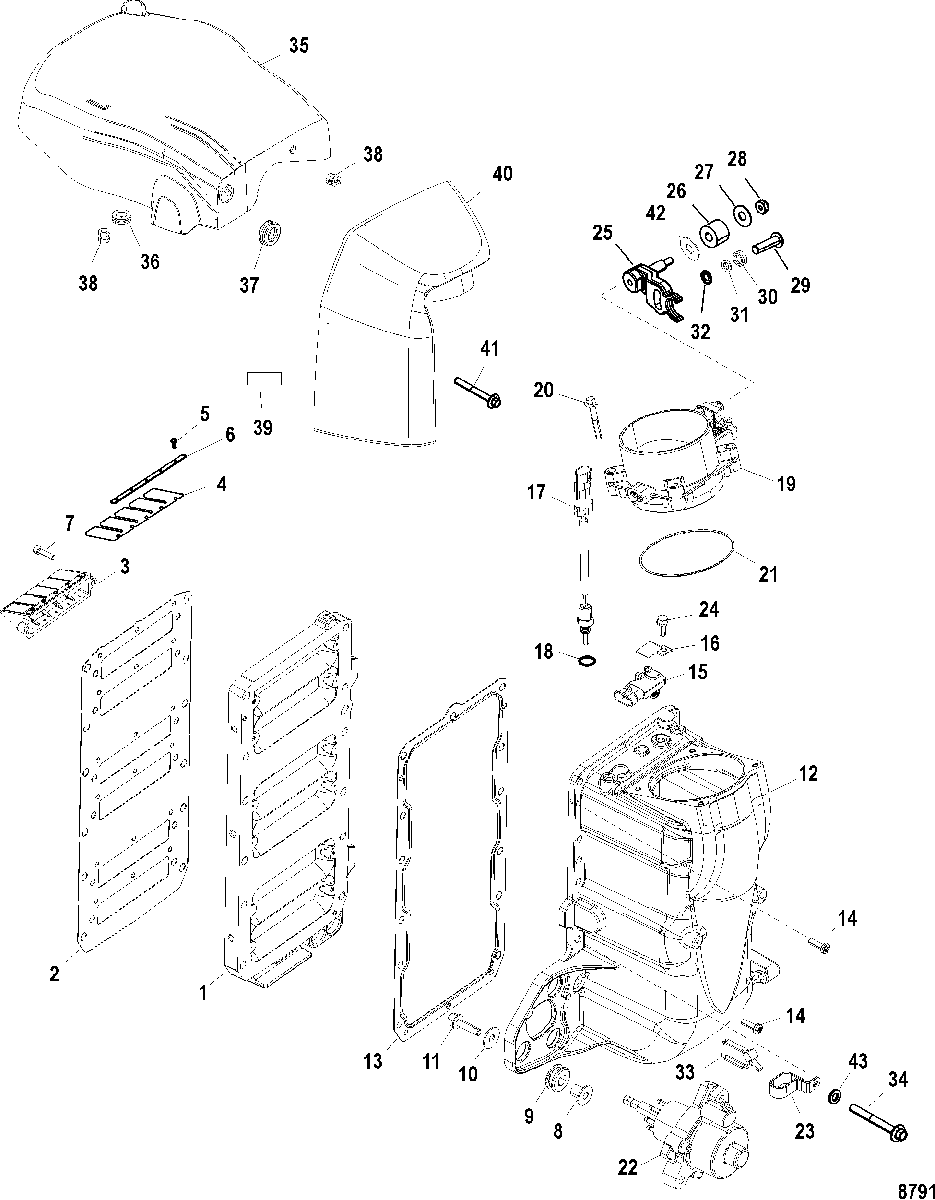

Air Handler для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560
-
№АртикулНазвание
-
-878112T07 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1858541T4 ADAPTOR PLATEADAPTOR PLATE
-
227-841220 GASKETGASKET
-
3840418T04 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
434-840445A04 REED PETAL KITREED PETAL KIT
-
510-849038 SCREW, (M3 x 5)SCREW, (M3 x 5)
-
6840447 REED PLATEREED PLATE
-
710-8555252 SCREW, (M6)SCREW, (M6)
-
823-855364 BUSHINGBUSHING
-
925-855362001 GROMMETGROMMET
-
1012-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
1110-81893430 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
12858708T1 PLENUM KIT, AirPLENUM KIT, Air
-
1327-804679004 GASKETGASKET
-
1410-883942 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
15854445 SENSOR, MAPSENSOR, MAP
-
16884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
17885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1825-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
19841194T04 THROTTLE BODY KITTHROTTLE BODY KIT
-
2010-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2125-855426 O-RINGO-RING
-
228M0128080 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
2354-804842 CLAMPCLAMP
-
2410-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
25858851A03 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
268M0072162 ROLLERROLLER
-
2712-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2811-826709104 NUT, (#8-32) Stainless SteelNUT, (#8-32) Stainless Steel
-
2910-889354 SCREW, SpecialSCREW, Special
-
308M0095734 WASHER, CuppedWASHER, Cupped
-
318M0095734 WASHER, SpoolWASHER, Spool
-
3213-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
3354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3410-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
358M0111168 COVERCOVER
-
3625-86361 GROMMETGROMMET
-
3725-13467 GROMMET, (.88 Inside Diameter)GROMMET, (.88 Inside Diameter)
-
3825-821555001 GROMMETGROMMET
-
3937-881865 DECAL, Caution-Start in Gear
(Start In Gear)DECAL, Caution-Start in Gear
(Start In Gear) -
40854343T11 ATTENUATOR, AirATTENUATOR, Air
-
4110-82130045 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
4212-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
-27-841220A03 GASKET SET, PowerheadGASKET SET, Powerhead
