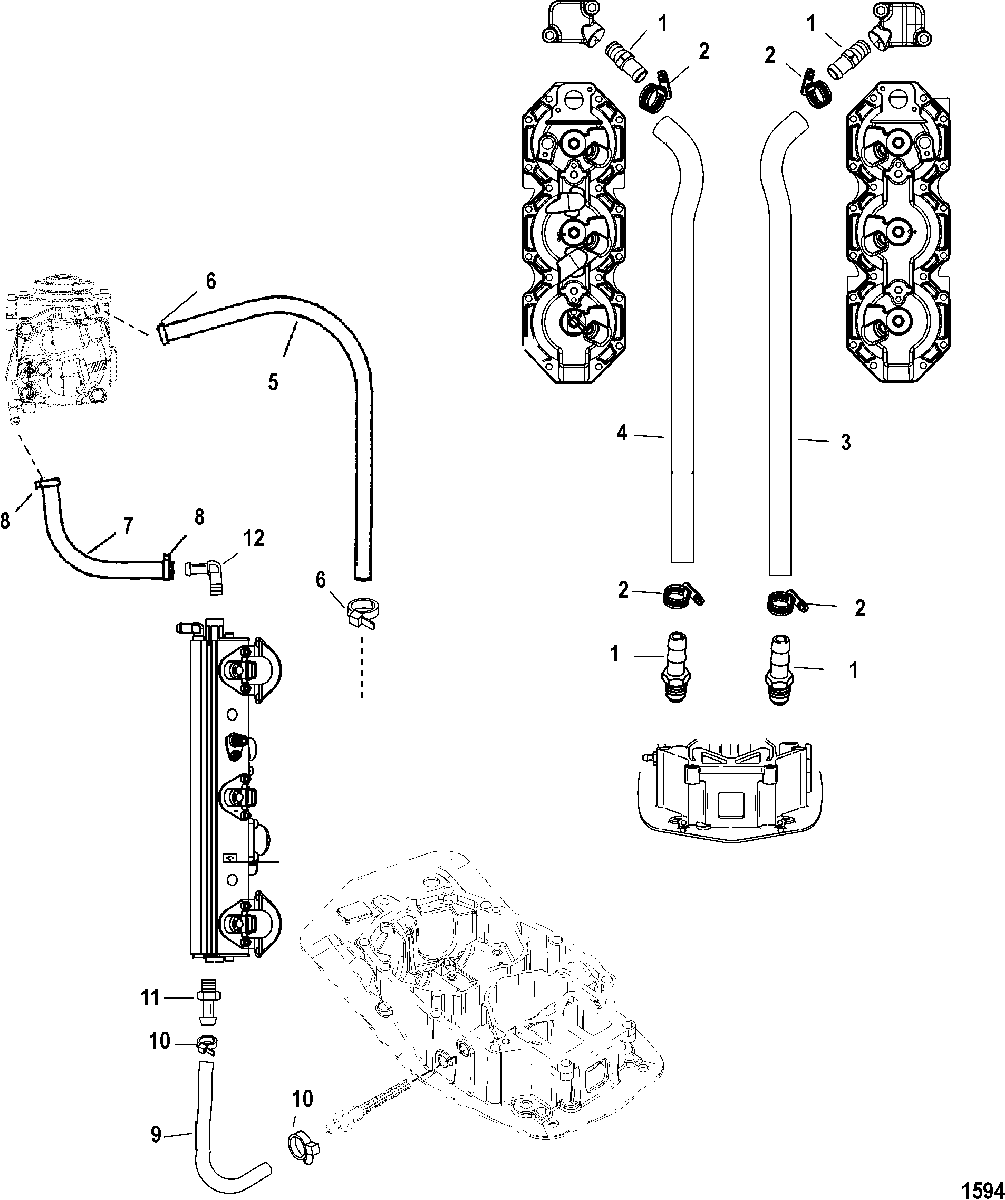

Water Hoses для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560
-
№АртикулНазвание
-
122-858855 FITTING, StraightFITTING, Straight
-
254-855228 CLAMP, (25.6 mm)CLAMP, (25.6 mm)
-
332-859090001 HOSE, Starboard Dump (Starboard)HOSE, Starboard Dump (Starboard)
-
432-859089001 HOSE, Port Dump (Port)HOSE, Port Dump (Port)
-
532-856839 TUBING, To TelltaleTUBING, To Telltale
-
654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
732-858807 HOSEHOSE
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
932-858865 HOSEHOSE
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1122-291112 FITTINGFITTING
-
1222-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
-61-843034A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
