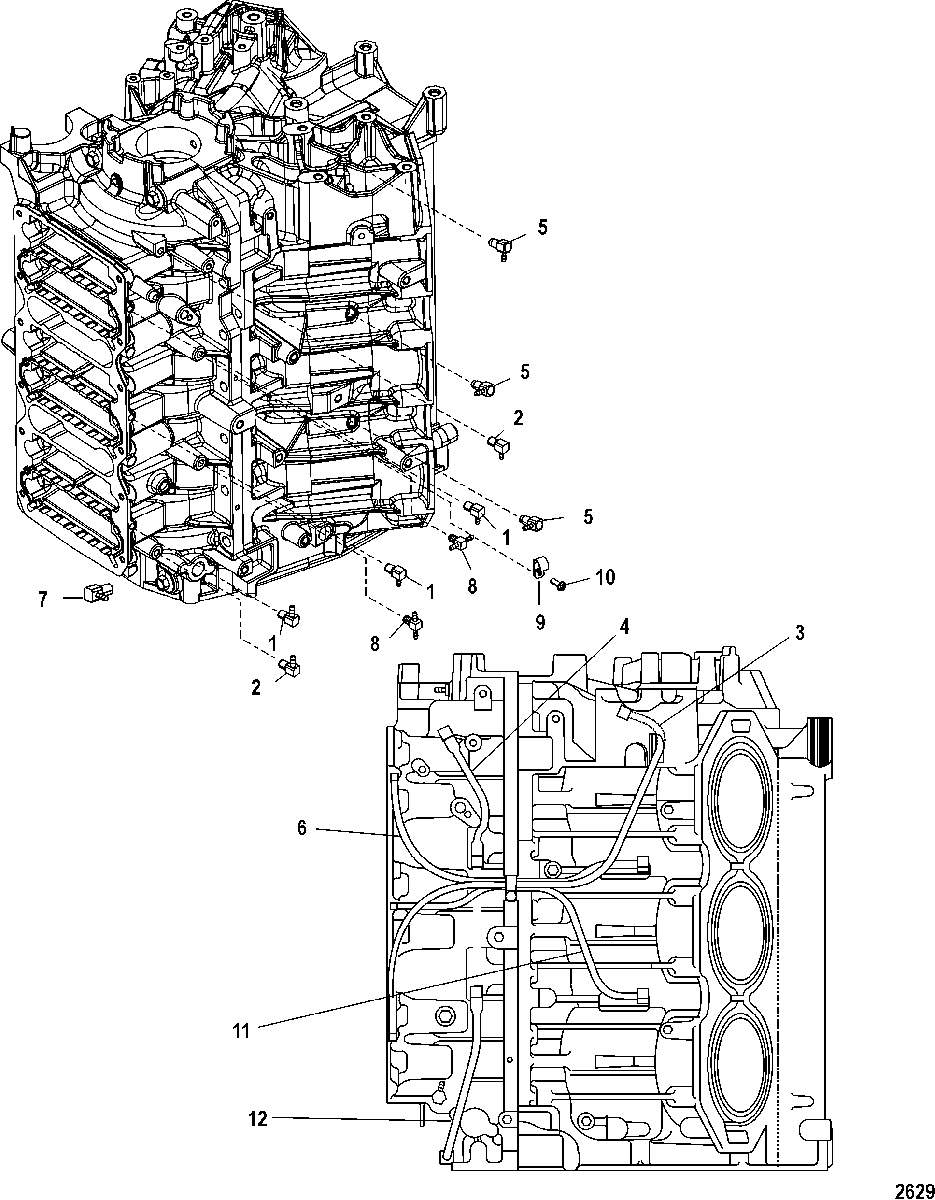

Port Center Main Oiling System для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560
-
№АртикулНазвание
-
122-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
222-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 20.50 Inches)TUBING, (38.00 Inches Bulk) (Cut to 20.50 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 5 Inches)TUBING, (38.00 Inches Bulk) (Cut to 5 Inches)
-
521-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
632-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)
-
721-8282182 CHECK VALVECHECK VALVE
-
821-8582362 CHECK VALVECHECK VALVE
-
954-23567 CLIPCLIP
-
1010-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1132-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)
-
1232-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 9.50 Inches)TUBING, (38.00 Inches Bulk) (Cut to 9.50 Inches)
-
-61-843034A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
