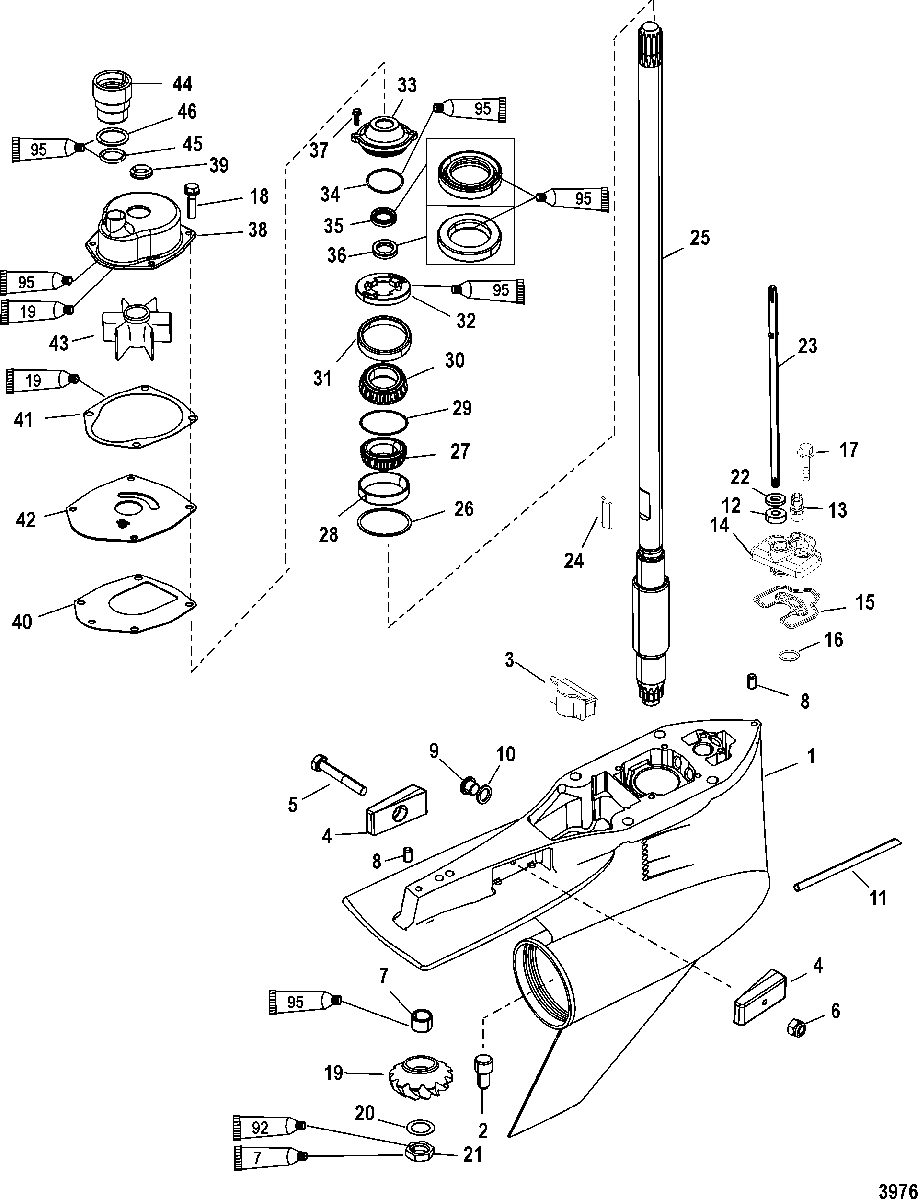

Gear Housing(Driveshaft)(TorqueMaster) для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560
-
№АртикулНазвание
-
-1689-8M0072952 GEAR HOUSING ASSEMBLY, Complete
(Long)(Excludes references 32/33/34 on prop shaft page)GEAR HOUSING ASSEMBLY, Complete
(Long)(Excludes references 32/33/34 on prop shaft page) -
-1689-8M0072952 GEAR HOUSING ASSEMBLY, Complete
(Long)(Includes references 32/33/34 on prop shaft page)GEAR HOUSING ASSEMBLY, Complete
(Long)(Includes references 32/33/34 on prop shaft page) -
-1689-8M0072953 GEAR HOUSING ASSEMBLY, Complete
(X-Long)GEAR HOUSING ASSEMBLY, Complete
(X-Long) -
11689-8M0072954 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
217-379721 PINPIN
-
3821526001 FILLER BLOCKFILLER BLOCK
-
497-826134Q ANODEANODE
-
510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
731-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
817-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
910-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
1012-191833 SEALSEAL
-
11859402 PITOT TUBEPITOT TUBE
-
1226-8164641 SEAL, OilSEAL, Oil
-
1322-881866 FITTINGFITTING
-
14858934 COVERCOVER
-
1527-858935 GASKETGASKET
-
1625-36318 O-RING, (.799)O-RING, (.799)
-
1710-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1810-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
19NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-828168T3)NOT SOLD SEPARATE, Pinion Gear (Part of 43-828168T3)
-
2012-92721 WASHERWASHER
-
2111-35921 NUT, (.625-18)NUT, (.625-18)
-
2212-77674 WASHERWASHER
-
23824145 SHIFT SHAFT (Lower)SHIFT SHAFT (Lower)
-
2428-8M0032833 KEYKEY
-
2545-881938 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
2545-881942 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
2615-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
2731-48939A2 BEARING, Tapered RollerBEARING, Tapered Roller
-
28NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
2915-8M0063267 SHIM SETSHIM SET
-
3031-36387A1 BEARING, RollerBEARING, Roller
-
31NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
328245191 RETAINERRETAINER
-
33840836A2 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
3425-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3526-66302 SEAL, OilSEAL, Oil
-
3626-66302 SEAL, OilSEAL, Oil
-
3710-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
38817275A1 HOUSING KIT, Water PumpHOUSING KIT, Water Pump
-
3926-816575A2 SEAL KITSEAL KIT
-
4027-430331 GASKETGASKET
-
4127-8172771 GASKETGASKET
-
428172761 FACEPLATEFACEPLATE
-
4347-43026T2 IMPELLERIMPELLER
-
44832942A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
4525-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
4625-35027 O-RING, (1.046)O-RING, (1.046)
-
-26-816575A6 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-817275A5 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
