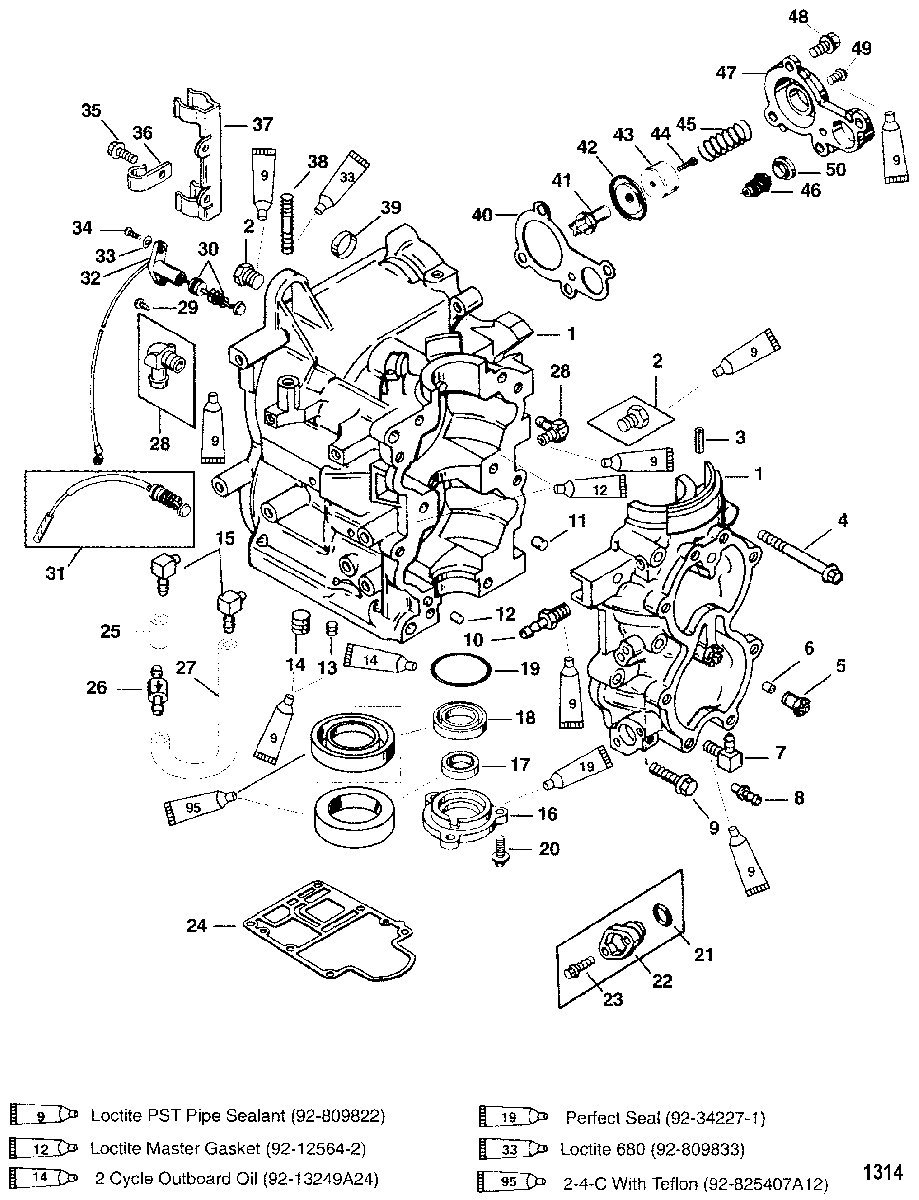

CYLINDER BLOCK для Mercury - 30 (2 CYL.) 0G055314 THRU 0G760299

№

Артикул

Название
1

890-821358T5 CYLINDER BLOCK

CYLINDER BLOCK

92 500 ₽
2

22-328022 PLUG, Pipe (.125-27) (HEX HEAD-BRASS)

PLUG, Pipe (.125-27) (HEX HEAD-BRASS)

600 ₽
3

17-824864 PIN, Roll (USE WHERE APPLICABLE)

PIN, Roll (USE WHERE APPLICABLE)

0 ₽
4

10-81742780 SCREW, (M8 x 80) (HEX FLANGE HEAD)

SCREW, (M8 x 80) (HEX FLANGE HEAD)

290 ₽
5

812888A1 CARRIER ASSEMBLY

CARRIER ASSEMBLY

760 ₽
6

21-42657A3 CHECK VALVE

CHECK VALVE

460 ₽
7

21-8282182 CHECK VALVE

CHECK VALVE

2 300 ₽
8

22-56759 CONNECTOR (BARBED-ELECTRIC)

CONNECTOR (BARBED-ELECTRIC)

710 ₽
9

10-81742740 SCREW, (M8 x 40) (HEX FLANGE HEAD)

SCREW, (M8 x 40) (HEX FLANGE HEAD)

130 ₽
10

22-85439001 CONNECTOR, Male

CONNECTOR, Male

200 ₽
11

17-8M0084653 PIN, Center Main

PIN, Center Main

260 ₽
12

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
13

22-390721 PLUG, (1/8 Inch Brass) (1/8 IN.-BRASS)

PLUG, (1/8 Inch Brass) (1/8 IN.-BRASS)

660 ₽
14

22-185981 PIPE PLUG (3/8-18)

PIPE PLUG (3/8-18)

210 ₽
15

22-15133 FITTING

FITTING

810 ₽
16

1171-9812A8 END CAP

END CAP

5 100 ₽
17

26-828932 SEAL, Oil

SEAL, Oil

740 ₽
18

26-41953 SEAL

SEAL

1 140 ₽
19

25-896523 O-RING, (2.175 x .175)

O-RING, (2.175 x .175)

230 ₽
20

10-81742720 SCREW, (M8 x 20) (HEX FLANGE HEAD)

SCREW, (M8 x 20) (HEX FLANGE HEAD)

410 ₽
-

27-822420A94 GASKET SET

GASKET SET

5 660 ₽
-

808569T02 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY

417 950 ₽
