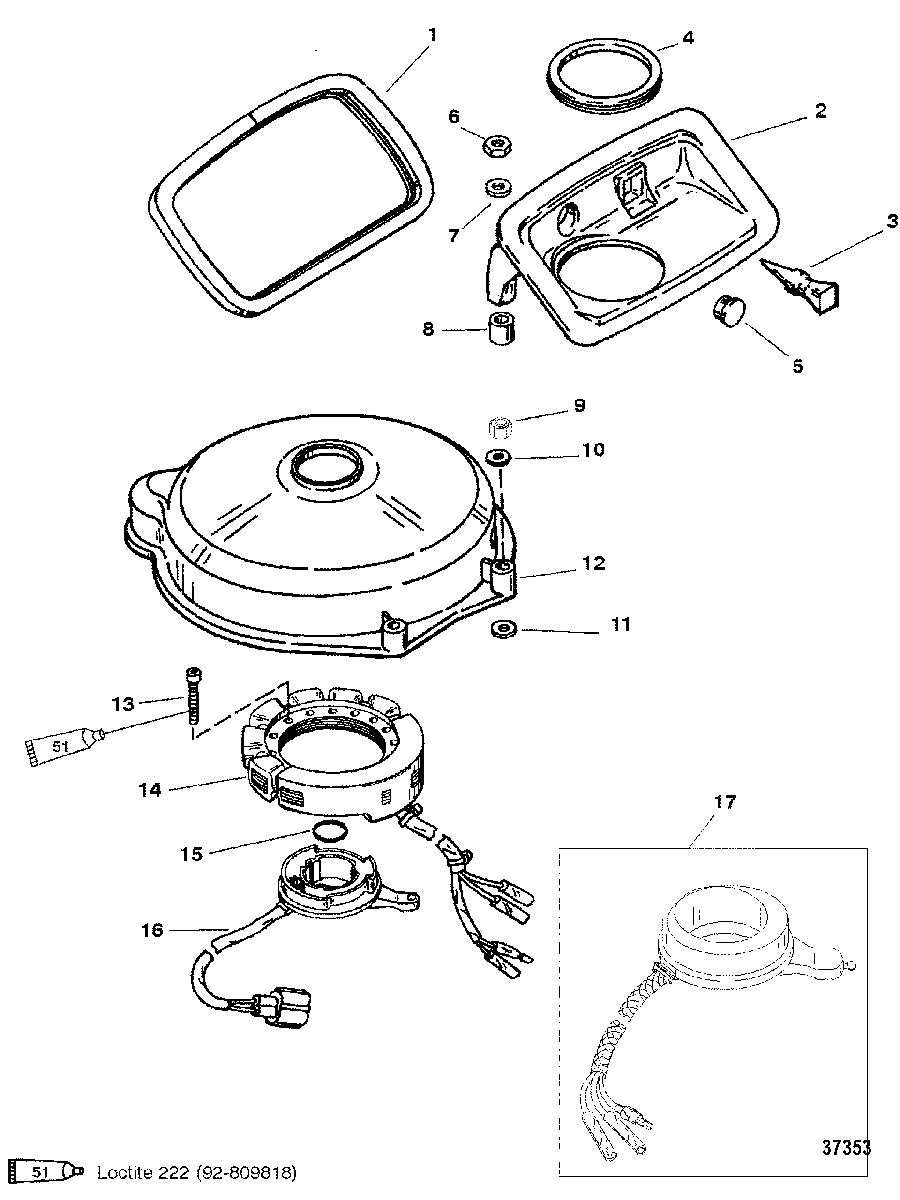

STATOR/TRIGGER(ELECTRIC MODELS) для Mercury - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
18M0043416 SEAL (USE WHERE APPLICABLE)SEAL (USE WHERE APPLICABLE)
-
2821788A1 REST (OIL INJECTION)
I.D. OF REST ROPE HOLE IS 1/4 IN.REST (OIL INJECTION)
I.D. OF REST ROPE HOLE IS 1/4 IN. -
319-822513 PLUG, Starter Handle
I.D. OF REST ROPE HOLE IS 1/4 IN.PLUG, Starter Handle
I.D. OF REST ROPE HOLE IS 1/4 IN. -
2821788A1 REST KIT
I.D. OF REST ROPE HOLE IS 1/3 IN.REST KIT
I.D. OF REST ROPE HOLE IS 1/3 IN. -
319-822513002 PLUG
I.D. OF REST ROPE HOLE IS 1/3 IN.PLUG
I.D. OF REST ROPE HOLE IS 1/3 IN. -
4823771001 GROMMETGROMMET
-
519-822464 PLUGPLUG
-
611-401196 NUT, (M6)
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"NUT, (M6)
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD" -
712-69056 WASHER, (.255 x .620 x .030) Stainless Steel
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"WASHER, (.255 x .620 x .030) Stainless Steel
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD" -
823-822392 SPACERSPACER
-
911-401366 NUT, (M6)NUT, (M6)
-
1012-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1112-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
12812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
1310-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
14398-832075A21 IGNITION STATOR KITIGNITION STATOR KIT
-
1525-62457 O-RING
SN# USA 0G589999, BEL 9973099 & BelowO-RING
SN# USA 0G589999, BEL 9973099 & Below -
1699021A14 TRIGGERTRIGGER
-
17853960T TRIGGER
SN# USA 0G590000, BEL 9973100 & UpTRIGGER
SN# USA 0G590000, BEL 9973100 & Up -
-27-822420A94 GASKET SETGASKET SET
