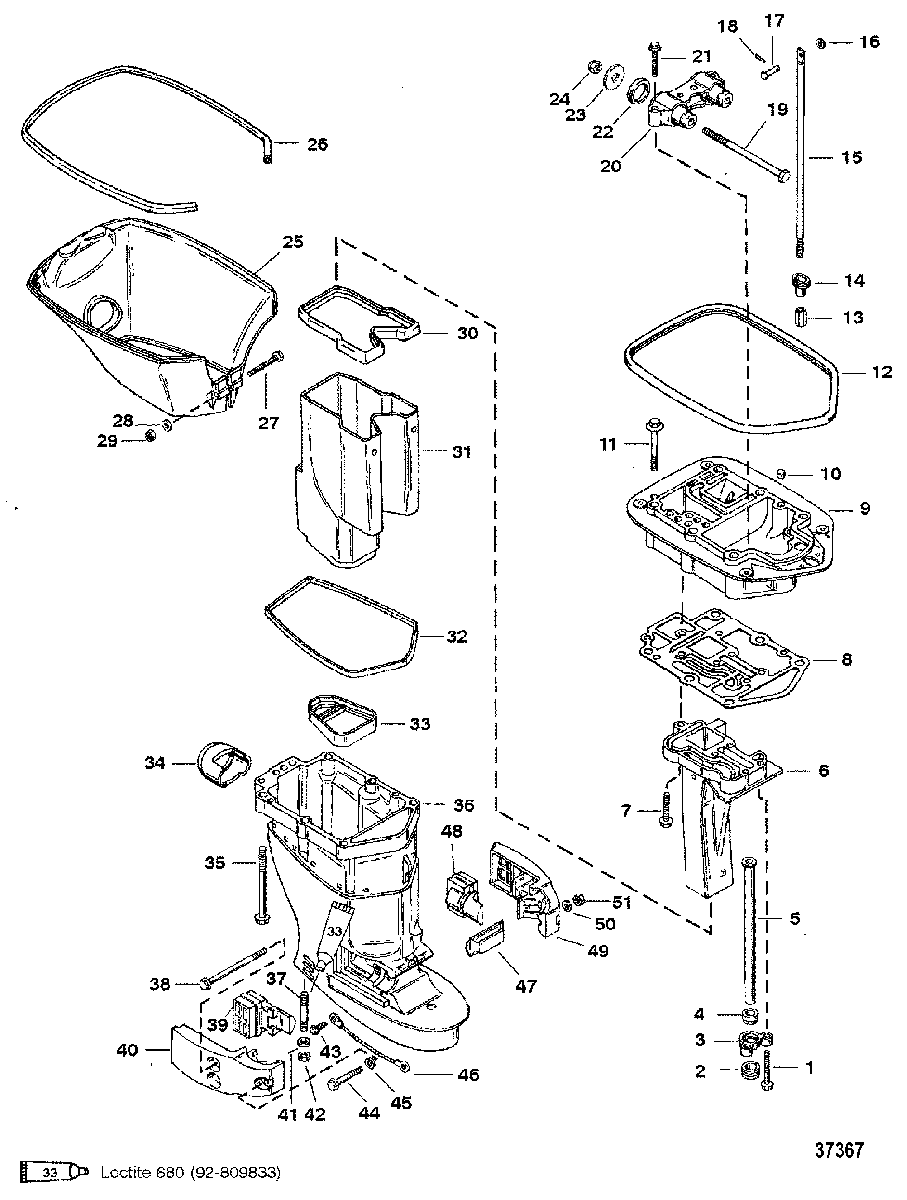

DRIVESHAFT HOUSING для Mercury - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
110-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
225-93221002 GROMMETGROMMET
-
399019 CLAMPCLAMP
-
442941001 SEAL, Water TubeSEAL, Water Tube
-
532-8M0042795 TUBE, Water
(SHORT)TUBE, Water
(SHORT) -
532-8M0042794 TUBE, Water
(LONG)TUBE, Water
(LONG) -
68M0046061 TUBE, ExhaustTUBE, Exhaust
-
710-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
827-8M0000821 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
9821439T4 ADAPTOR PLATE ASSEMBLY
SN# USA 0G590000/BEL 9973100 & UpADAPTOR PLATE ASSEMBLY
SN# USA 0G590000/BEL 9973100 & Up -
9821439T4 ADAPTOR PLATE ASSEMBLY
(BLACK) SN# USA 0G589999/BEL 9973099 & BelowADAPTOR PLATE ASSEMBLY
(BLACK) SN# USA 0G589999/BEL 9973099 & Below -
9821439T4 ADAPTOR PLATE ASSEMBLY
(GRAY) SN# USA 0G589999/BEL 9973099 & UpADAPTOR PLATE ASSEMBLY
(GRAY) SN# USA 0G589999/BEL 9973099 & Up -
1017-23784 PIN, DowelPIN, Dowel
-
1110-4010875 SCREW, (M10 x 75) Hex Flange - Stainless SteelSCREW, (M10 x 75) Hex Flange - Stainless Steel
-
128M0043148 SEAL, Bottom CowlSEAL, Bottom Cowl
-
13822419 COUPLERCOUPLER
-
1425-822408001 GROMMETGROMMET
-
15880042 SHIFT SHAFT (UPPER)SHIFT SHAFT (UPPER)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1717-822417 PINPIN
-
1818-210711 COTTER PINCOTTER PIN
-
198M0000520 SCREW, (M12 x 162)SCREW, (M12 x 162)
-
201400-8M4501487 MOUNTMOUNT
-
2110-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
2212-32834 WASHER, NeopreneWASHER, Neoprene
-
2312-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2411-896963 NUT, (M12)NUT, (M12)
-
25821512A4 TRIM COVER
(BLACK)TRIM COVER
(BLACK) -
25821512A4 TRIM COVER
(GRAY)TRIM COVER
(GRAY) -
268M0043155 BUMPERBUMPER
-
2710-826173 SCREW, (M5 x .8 x 60)SCREW, (M5 x .8 x 60)
-
2812-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
2911-400263 NUT, (M5)NUT, (M5)
-
-27-822420A94 GASKET SETGASKET SET
