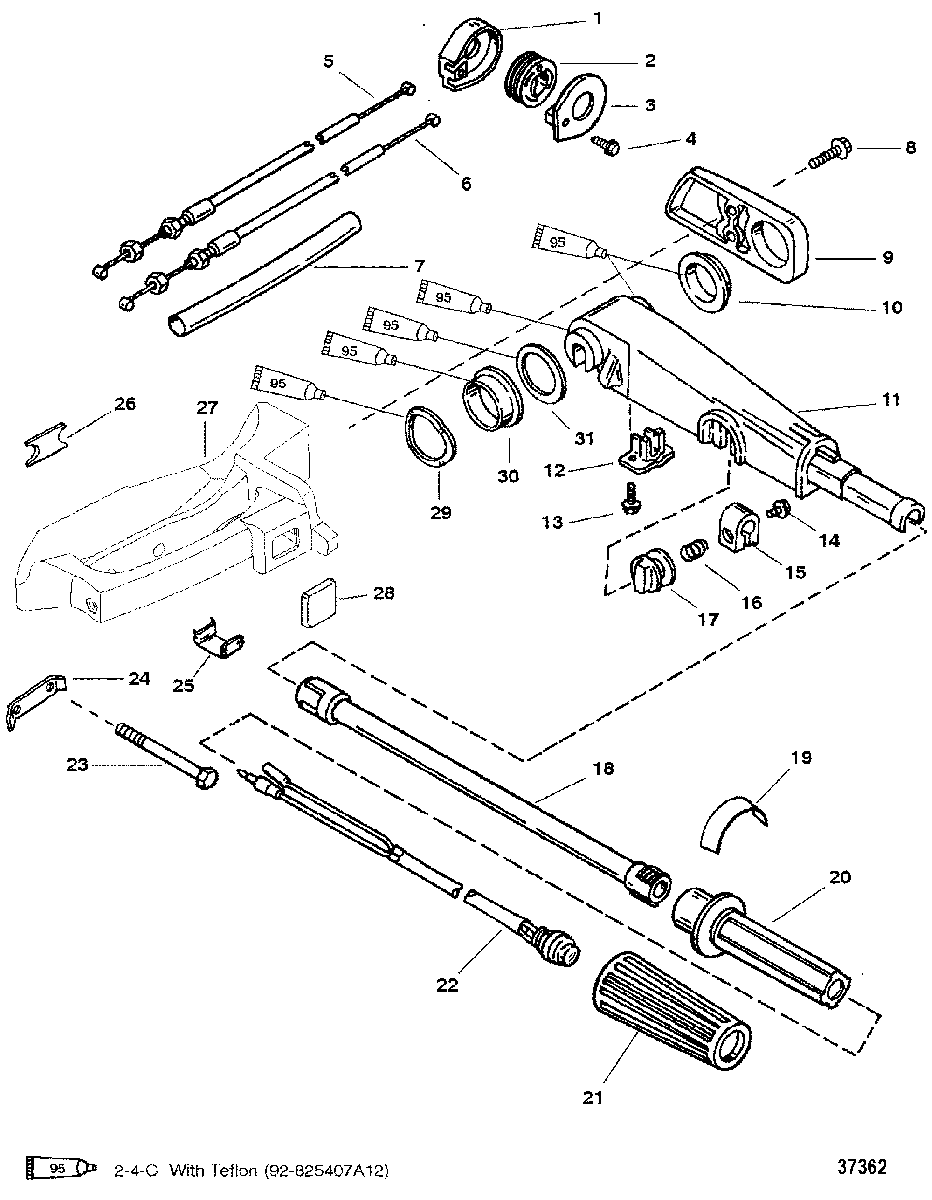

TILLER HANDLE для Mercury - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
1822148A1 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, CASE (PART OF REF #1)NOT SOLD SEPARATE, CASE (PART OF REF #1)
-
410-878608 SCREW, (#10-16 x .500) (SELF TAP)SCREW, (#10-16 x .500) (SELF TAP)
-
5432425 CABLECABLE
-
6432427 CABLECABLE
-
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
810-82526225 SCREW, (M8 x 25 MM) (HEX FLANGE HEAD)SCREW, (M8 x 25 MM) (HEX FLANGE HEAD)
-
98M0072298 COVER
(BLACK)COVER
(BLACK) -
9822407F2 COVER
(GRAY)COVER
(GRAY) -
1023-821477 BUSHINGBUSHING
-
11822325T1 ARM, Steering Handle
(BLACK)ARM, Steering Handle
(BLACK) -
11822325T1 ARM, Steering Handle
(GRAY)ARM, Steering Handle
(GRAY) -
12822441 RETAINERRETAINER
-
1310-82239312 SCREW, (M5 x 12) (HEX FLANGE HEAD)SCREW, (M5 x 12) (HEX FLANGE HEAD)
-
1410-4000330 SCREW, (M6 x 25) ( HEX HEAD CAP)SCREW, (M6 x 25) ( HEX HEAD CAP)
-
15892995 LOCK, ThrottleLOCK, Throttle
-
1624-96203 SPRINGSPRING
-
17821972T KNOB, ThrottleKNOB, Throttle
-
18821463T01 TILLER TUBETILLER TUBE
-
1937-8242004 DECAL
(TURTLE/RABBIT)DECAL
(TURTLE/RABBIT) -
1937-8242002 DECAL
(SLOW/FAST)DECAL
(SLOW/FAST) -
20821465 HANDLE, ThrottleHANDLE, Throttle
-
2199589003 GRIPGRIP
-
2287-8M0104611 SWITCH, StopSWITCH, Stop
-
2310-82484890 SCREW, (M10 x 90) (HEX HEAD CAP)SCREW, (M10 x 90) (HEX HEAD CAP)
-
2414-8M0009820 TAB WASHERTAB WASHER
-
25823687 CLIPCLIP
-
26826658 BUMPERBUMPER
-
27821455A4 BRACKET, Tiller
(BLACK)BRACKET, Tiller
(BLACK) -
27821455A4 BRACKET, Tiller
(GRAY)BRACKET, Tiller
(GRAY) -
2819-17230 PLUGPLUG
-
2913-826792 WAVE WASHERWAVE WASHER
-
3023-821477 BUSHINGBUSHING
-
3112-827314 WASHERWASHER
