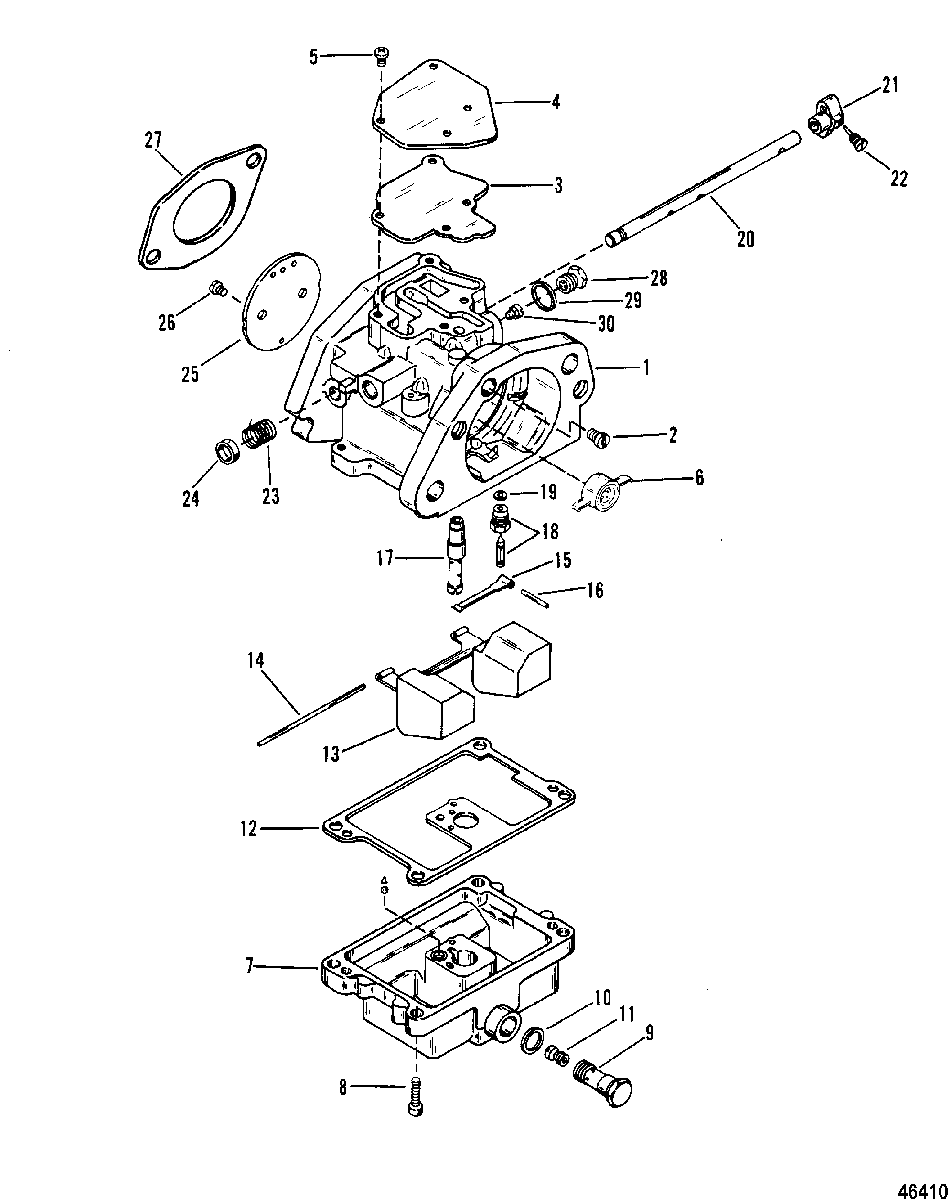

CARBURETOR ASSEMBLY для Mercury - 300 (3.4 LITRE) 5611648 & Up
-
№АртикулНазвание
-
11387-7785A38 CARBURETOR ASSEMBLY (TOP - PORT)
WO-5-1CARBURETOR ASSEMBLY (TOP - PORT)
WO-5-1 -
11387-7785A39 CARBURETOR ASSEMBLY (TOP - STARBOARD)
WO-5-2CARBURETOR ASSEMBLY (TOP - STARBOARD)
WO-5-2 -
11387-7785A40 CARBURETOR ASSEMBLY (CENTER)
WO-5-3CARBURETOR ASSEMBLY (CENTER)
WO-5-3 -
11387-7785A41 CARBURETOR ASSEMBLY (BOTTOM - PORT)
WO-5-4CARBURETOR ASSEMBLY (BOTTOM - PORT)
WO-5-4 -
21395-6201 JET, (.080), VENT BOWL (.080)JET, (.080), VENT BOWL (.080)
-
41395-9122 COVER PLATECOVER PLATE
-
694963 VENTURI
WO-3VENTURI
WO-3 -
71395-9115 BOWL, Fuel
WO-3-1 ONLYBOWL, Fuel
WO-3-1 ONLY -
71395-9116 BOWL, Fuel
WO-3BOWL, Fuel
WO-3 -
61395-9481 VENTURI
WO-5VENTURI
WO-5 -
71395-9478 BOWL, Fuel
WO-5-1 ONLYBOWL, Fuel
WO-5-1 ONLY -
71395-9479 BOWL, Fuel
WO-5BOWL, Fuel
WO-5 -
91395-6199 PLUG, MAIN JETPLUG, MAIN JET
-
111399-3794 JET, (.074), MAIN FUEL (.074)
WO-3-4 ONLYJET, (.074), MAIN FUEL (.074)
WO-3-4 ONLY -
111395-6207 JET, (.072), MAIN FUEL (.072)
WO-3JET, (.072), MAIN FUEL (.072)
WO-3 -
111399-3796 JET, (.076), MAIN FUEL (.076)
WO-5JET, (.076), MAIN FUEL (.076)
WO-5 -
13813470 FLOATFLOAT
-
181395-83181 NEEDLE, InletNEEDLE, Inlet
-
201395-9118 SHAFT, Throttle
WO-3-4/5-4 ONLYSHAFT, Throttle
WO-3-4/5-4 ONLY -
201395-9117 SHAFT, ThrottleSHAFT, Throttle
-
2167752 LEVERLEVER
-
251395-9119 VALVE, Throttle
WO-3VALVE, Throttle
WO-3 -
251395-9480 VALVE, Throttle
WO-5VALVE, Throttle
WO-5 -
2727-886111 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
301395-6359 JET, (.052), IDLE (.052)
WO-3JET, (.052), IDLE (.052)
WO-3 -
301399-4217 JET, Main (.062), IDLE (.062)
WO-5JET, Main (.062), IDLE (.062)
WO-5 -
--1395-9062 GASKET SET, Carburetor
CONTENTS INDICATED BY FOOTNOTE 12.GASKET SET, Carburetor
CONTENTS INDICATED BY FOOTNOTE 12. -
--1395-9063 REPAIR PARTS KIT (WO-3)
CONTENTS INDICATED BY FOOTNOTE 13.REPAIR PARTS KIT (WO-3)
CONTENTS INDICATED BY FOOTNOTE 13. -
--1395-9063 REPAIR PARTS KIT (WO-5)
CONTENTS INDICATED BY FOOTNOTE 14.REPAIR PARTS KIT (WO-5)
CONTENTS INDICATED BY FOOTNOTE 14. -
--27-88605A80 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.
