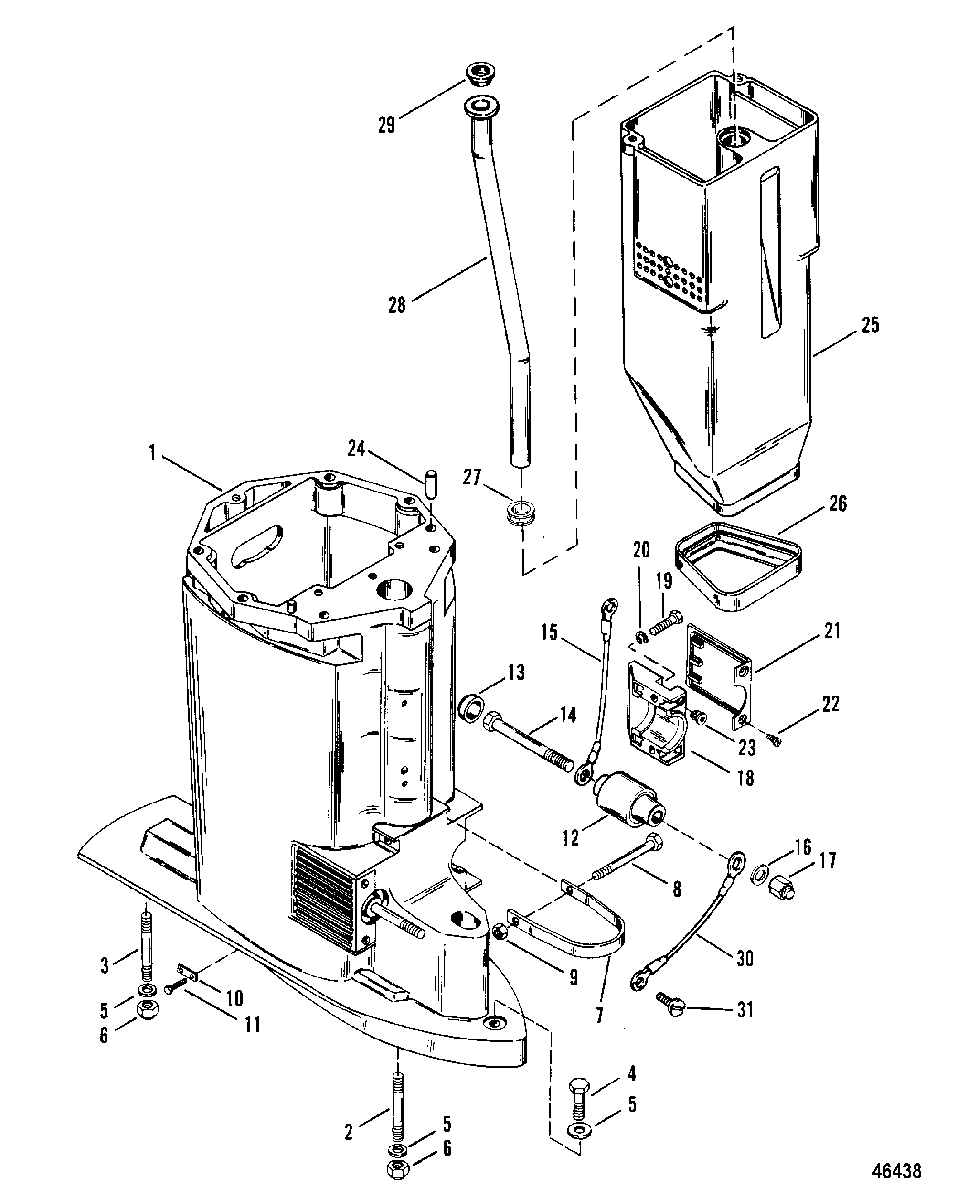

DRIVE SHAFT HOUSING AND EXHAUST TUBE для Mercury - 300 (3.4 LITRE) 5611648 & Up
-
№АртикулНазвание
-
11594-8437A2 HOUSING ASSEMBLY, Driveshaft (LONG)HOUSING ASSEMBLY, Driveshaft (LONG)
-
11594-9099A2 HOUSING ASSEMBLY, Driveshaft (EXTRA LONG)HOUSING ASSEMBLY, Driveshaft (EXTRA LONG)
-
216-8M0034453 STUD, (.437-14/.437-20 x 2.190), Drive shaft housing/gear housing (2-3/16")STUD, (.437-14/.437-20 x 2.190), Drive shaft housing/gear housing (2-3/16")
-
316-57984 STUD, (.437-14/.437-20 x 2.380), Drive shaft housing/gear housing (2-3/8")STUD, (.437-14/.437-20 x 2.380), Drive shaft housing/gear housing (2-3/8")
-
410-54493 SCREW, (.437-14 x 2.500), DRIVE SHAFT HOUSINGSCREW, (.437-14 x 2.500), DRIVE SHAFT HOUSING
-
512-45176 WASHER, DRIVE SHAFT HOUSING STUDWASHER, DRIVE SHAFT HOUSING STUD
-
611-34933 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
788758T STRAP, SWIVEL BRACKET RETAININGSTRAP, SWIVEL BRACKET RETAINING
-
810-67769 SCREW, (.375-24 x 4.00), STRAP TO DRIVE SHAFT HOUSINGSCREW, (.375-24 x 4.00), STRAP TO DRIVE SHAFT HOUSING
-
911-25269 NUT, (.375-24), STRAP TO DRIVE SHAFT HOUSING SCREWNUT, (.375-24), STRAP TO DRIVE SHAFT HOUSING SCREW
-
1094229 TEE WASHERTEE WASHER
-
1110-68513 SCREW, (#10-32 x .375) Stainless Steel, TEE WASHERSCREW, (#10-32 x .375) Stainless Steel, TEE WASHER
-
1277327 MOUNT, LOWERMOUNT, LOWER
-
1325067 BUMPER, LOWER MOUNT SCREWBUMPER, LOWER MOUNT SCREW
-
1410-96853 SCREW, (.500-20 x 6.380), LOWER MOUNTSCREW, (.500-20 x 6.380), LOWER MOUNT
-
1588238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1612-49339 WASHER, (.8125), LOWER MOUNT SCREWWASHER, (.8125), LOWER MOUNT SCREW
-
1711-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
1854-8M0036782 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
1910-40001140 SCREW, (M8 x 35), LOWER MOUNT CLAMPSCREW, (M8 x 35), LOWER MOUNT CLAMP
-
2013-400247 LOCKWASHER, (M8), LOWER MOUNT CLAMP SCREWLOCKWASHER, (M8), LOWER MOUNT CLAMP SCREW
-
21100-8M4500752 COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
2210-88417 SCREW, (#12-24 x .620), COVER ATTACHING (5/8")SCREW, (#12-24 x .620), COVER ATTACHING (5/8")
-
2311-35521 NUT, NYLON - COVER TO CLAMP SCREWNUT, NYLON - COVER TO CLAMP SCREW
-
2417-20433 PIN, Dowel (.375 x 1.00), DRIVE SHAFT HOUSINGPIN, Dowel (.375 x 1.00), DRIVE SHAFT HOUSING
-
2588887T TUBE, Exhaust (LONG)TUBE, Exhaust (LONG)
-
2588887T TUBE, Exhaust (EXTRA LONG)TUBE, Exhaust (EXTRA LONG)
-
2688883 SEAL, EXHAUST TUBE - LOWERSEAL, EXHAUST TUBE - LOWER
-
2725-89417 GROMMET, WATER TUBEGROMMET, WATER TUBE
-
2832-88884 TUBE, WATER (LONG)TUBE, WATER (LONG)
-
2832-89098 TUBE, WATER (EXTRA LONG)TUBE, WATER (EXTRA LONG)
-
2926-89419 SEAL, WATER TUBESEAL, WATER TUBE
-
3088238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3110-73286 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRESCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
-
--27-88605A80 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR PLATE AND REED BLOCK
- COWLS AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND END CAPS
- • DRIVE SHAFT HOUSING AND EXHAUST TUBE
- ENRICHNER VALVE AND HOSES
- EXHAUST MANIFOLD AND CYLINDER HEAD
- EXHAUST PLATE
- FLYWHEEL, STARTER MOTOR AND IGNITION COILS
- FUEL PUMPS
- GEAR HOUSING(DRIVE SHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- HYDRASTEER COMPONENTS
- HYDRAULIC PUMP AND MOUNTING BRACKETS
- HYDRAULIC PUMP(DESIGN I)
- HYDRAULIC PUMP(DESIGN II)
- MISCELLANEOUS PARTS/ACCESSORIES
- SOUND ATTENUATOR AND COWL BRACKET
- STARTER MOTOR ASSEMBLY(BOSCH)
- STARTER MOTOR ASSEMBLY(PRESTOLITE)
- SWIVEL BRACKET AND STEERING ARM
- TACHOMETER, TRIM GAUGE AND ALARM HORN
- THROTTLE LEVER
- TRANSOM BRACKETS
- WIRING HARNESS, STARTER SOLENOID AND RECTIFIER
