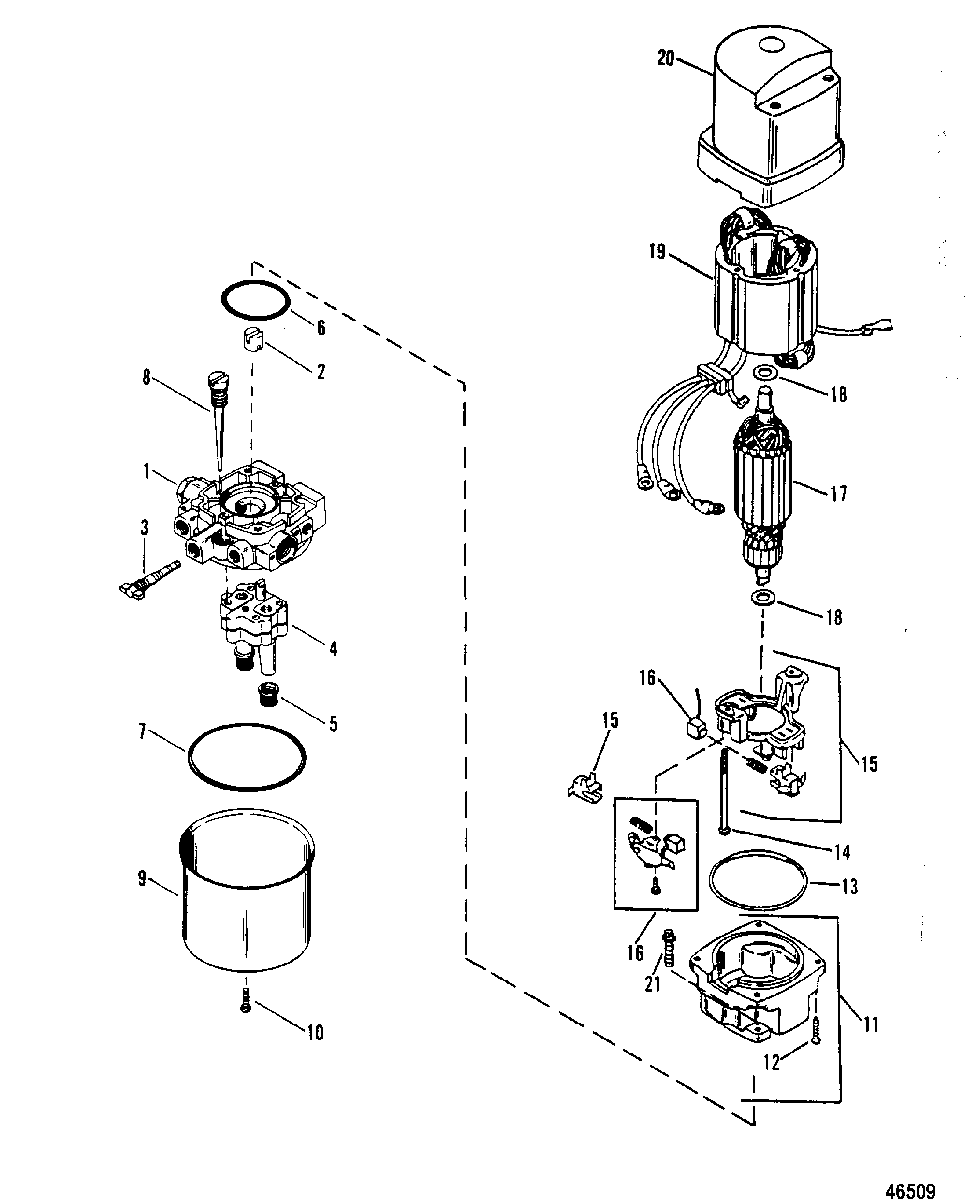

HYDRAULIC PUMP(DESIGN II) для Mercury - 300 (3.4 LITRE) 5611648 & Up
-
№АртикулНазвание
-
-823653A9 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
1801786 ADAPTORADAPTOR
-
2803852 COUPLINGCOUPLING
-
399073A2 MANUAL RELEASEMANUAL RELEASE
-
4801787 PUMP (INCLUDES SCREWS)PUMP (INCLUDES SCREWS)
-
535-89496 FILTERFILTER
-
625-89498 O-RINGO-RING
-
725-89497 O-RINGO-RING
-
889499 DIPSTICKDIPSTICK
-
990587T RESERVOIRRESERVOIR
-
1010-90588 SCREW (INCLUDES O-RING)SCREW (INCLUDES O-RING)
-
-17649A02 MOTORMOTOR
-
11891736T END CAP ASSEMBLY (W/BEARING)END CAP ASSEMBLY (W/BEARING)
-
12891736T SCREWSCREW
-
13891736T O-RINGO-RING
-
14891736T SCREWSCREW
-
15891736T HOLDER KITHOLDER KIT
-
16891736T BRUSH KITBRUSH KIT
-
17891736T ARMATUREARMATURE
-
18891736T WASHERWASHER
-
19891736T FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
20891736T COVER ASSEMBLY (W/BEARING)COVER ASSEMBLY (W/BEARING)
-
2110-823444 SCREWSCREW
-
--812501A1 REPAIR KIT, Relief ValveREPAIR KIT, Relief Valve
-
--99073A2 REPAIR KIT, OverhaulREPAIR KIT, Overhaul
