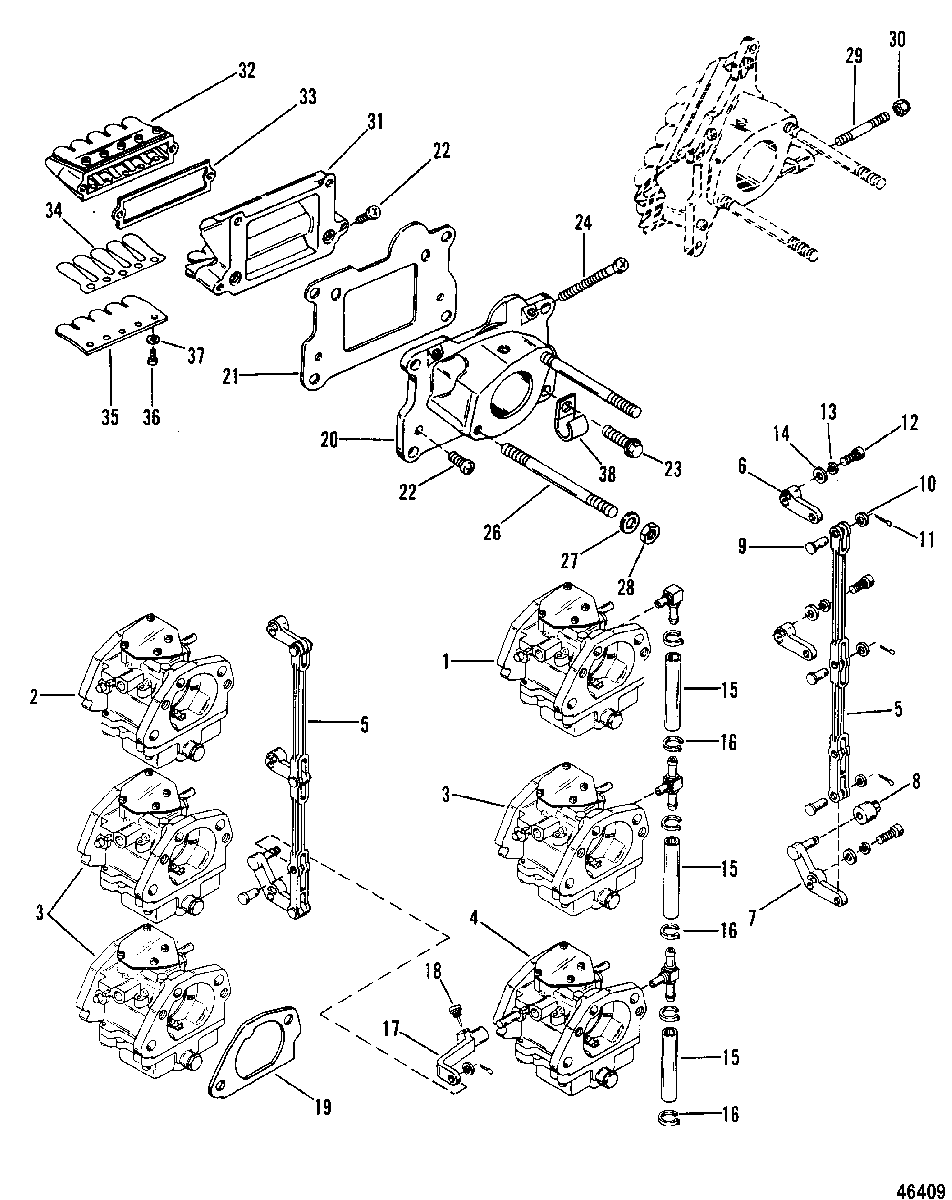

CARBURETOR PLATE AND REED BLOCK для Mercury - 300 (3.4 LITRE) 5611648 & Up
-
№АртикулНазвание
-
11387-7785A38 CARBURETOR ASSEMBLY (TOP - PORT)
(WO-5-1)CARBURETOR ASSEMBLY (TOP - PORT)
(WO-5-1) -
21387-7785A39 CARBURETOR ASSEMBLY (TOP - STARBOARD)
(WO-5-2)CARBURETOR ASSEMBLY (TOP - STARBOARD)
(WO-5-2) -
31387-7785A40 CARBURETOR ASSEMBLY (CENTER)
(WO-5-3)CARBURETOR ASSEMBLY (CENTER)
(WO-5-3) -
41387-7785A41 CARBURETOR ASSEMBLY (B0TTOM - PORT)
(WO-5-4)CARBURETOR ASSEMBLY (B0TTOM - PORT)
(WO-5-4) -
588586 LINK, ThrottleLINK, Throttle
-
688584 LEVER, ThrottleLEVER, Throttle
-
788585 LEVER, Throttle, LOWER - PORTLEVER, Throttle, LOWER - PORT
-
867748 ROLLER, THROTTLE LEVERROLLER, THROTTLE LEVER
-
917-67297 PIN, ClevisPIN, Clevis
-
1012-89302 WASHER, CLEVIS PINWASHER, CLEVIS PIN
-
1118-26953 COTTER PINCOTTER PIN
-
1210-22523 SCREW, (.190-32 x .75), THROTTLE LEVER TO CARBURETORSCREW, (.190-32 x .75), THROTTLE LEVER TO CARBURETOR
-
1313-26996 LOCKWASHER, (#10) Stainless Steel, THROTTLE LEVER SCREWLOCKWASHER, (#10) Stainless Steel, THROTTLE LEVER SCREW
-
1412-24676 WASHER, (.200 x .440 x .032), THROTTLE LEVER SCREWWASHER, (.200 x .440 x .032), THROTTLE LEVER SCREW
-
1532-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
1654-68424 CLAMP, FUEL LINESCLAMP, FUEL LINES
-
17895981 LEVER, Throttle, LOWER CARBURETOR - PORTLEVER, Throttle, LOWER CARBURETOR - PORT
-
181395-6027 SCREW, THROTTLE LEVER TO CARBURETORSCREW, THROTTLE LEVER TO CARBURETOR
-
1927-933531 GASKET, CARBURETOR TO SOUND ATTENUATORGASKET, CARBURETOR TO SOUND ATTENUATOR
-
208M0027809 PLATE, CARBURETOR - PORTPLATE, CARBURETOR - PORT
-
208M0027774 PLATE, CARBURETOR - STARBOARDPLATE, CARBURETOR - STARBOARD
-
2127-886252 GASKET, CARBURETOR PLATE - PORTGASKET, CARBURETOR PLATE - PORT
-
2127-886262 GASKET, CARBURETOR PLATE - STARBOARDGASKET, CARBURETOR PLATE - STARBOARD
-
2210-20540 SCREW, (.250-20 x .62), REED BLOCK ADAPTORSCREW, (.250-20 x .62), REED BLOCK ADAPTOR
-
2310-40011149 SCREW, CARBURETOR PLATESCREW, CARBURETOR PLATE
-
2410-90199 SCREW, REED BLOCK ADAPTORSCREW, REED BLOCK ADAPTOR
-
2616-815158 STUD, CARBURETORSTUD, CARBURETOR
-
2712-4002217 WASHER, CARBURETOR STUDWASHER, CARBURETOR STUD
-
2811-401368 NUT, (M8), CARBURETOR STUDNUT, (M8), CARBURETOR STUD
-
2916-20500 STUD, PORT CARBURETOR PLATESTUD, PORT CARBURETOR PLATE
-
3011-36069 NUT, STUDNUT, STUD
-
31884293 ADAPTOR, REED BLOCKADAPTOR, REED BLOCK
-
3275953 REED BLOCKREED BLOCK
-
3327-657443 GASKET, REED BLOCKGASKET, REED BLOCK
-
3434-75362A1 REED ASSEMBLYREED ASSEMBLY
-
3534-67298 STOP, ReedSTOP, Reed
-
3610-57583T SCREW, (#8-32 x .375), REED ATTACHINGSCREW, (#8-32 x .375), REED ATTACHING
-
3713-26996 LOCKWASHER, (#10) Stainless Steel, REED SCREWLOCKWASHER, (#10) Stainless Steel, REED SCREW
-
3854-61001 J CLIP, HOSEJ CLIP, HOSE
-
--27-88605A80 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.
