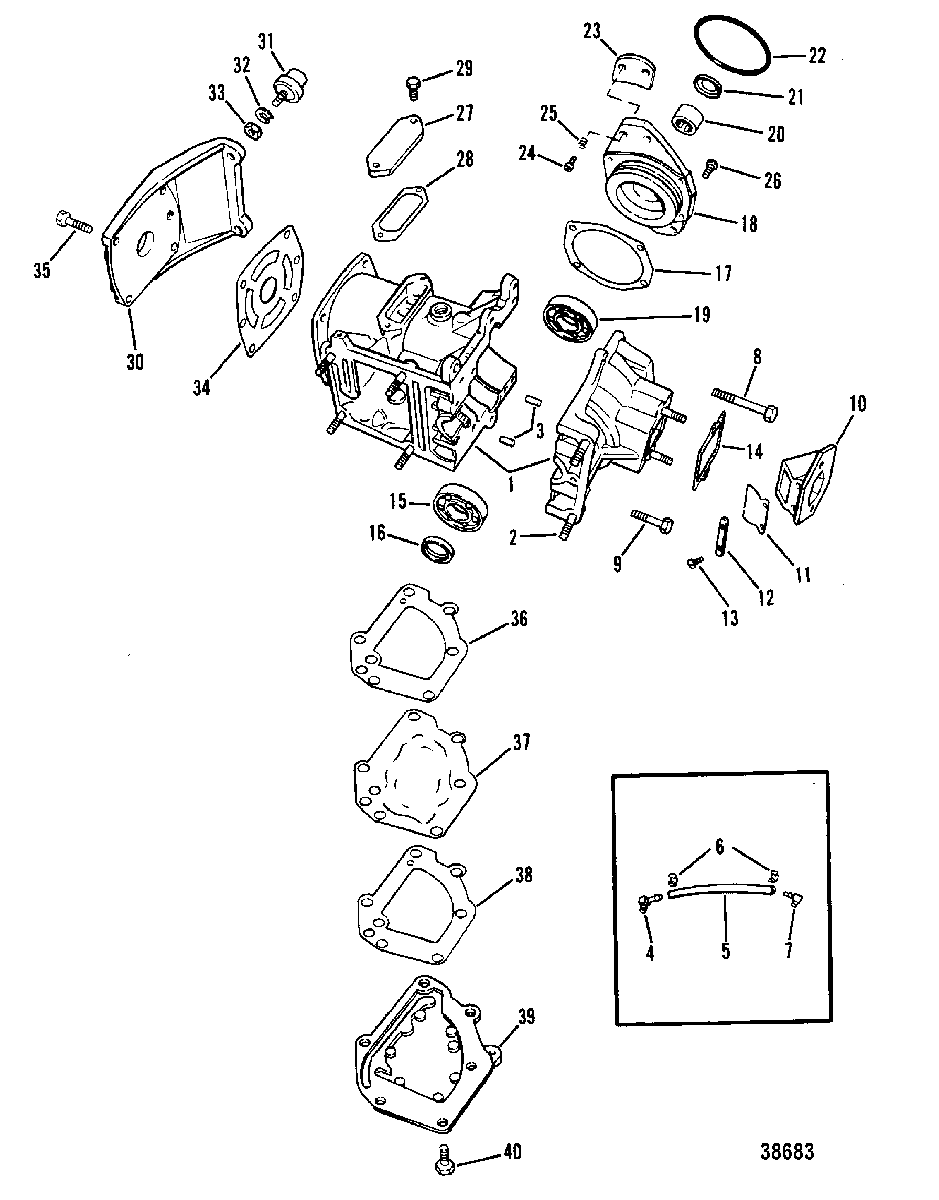

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 4 (1 CYL. PRODUCT OF USA) 9258281 & Up
-
№АртикулНазвание
-
1843-8694A3 CYLINDER BLOCKCYLINDER BLOCK
-
216-66021 STUDSTUD
-
317-8M0084726 PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCKPIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
-
422-89275 FITTING, BLEED DRAINFITTING, BLEED DRAIN
-
532-9912688 TUBING, (36.00 Inches Bulk), BLEED DRAINTUBING, (36.00 Inches Bulk), BLEED DRAIN
-
654-68424 CLAMP, BLEED HOSE ATTACHINGCLAMP, BLEED HOSE ATTACHING
-
722-887801 ELBOW, Tell-Tale Tubing, BLEED DRAINELBOW, Tell-Tale Tubing, BLEED DRAIN
-
810-73280 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
-
910-76621 SCREW, CRANKCASE TO CYLINDER BLOCK (1")SCREW, CRANKCASE TO CYLINDER BLOCK (1")
-
1070726 REED BLOCKREED BLOCK
-
1134-35836 REED, INLET VALVEREED, INLET VALVE
-
1234-22215 RETAINER, REEDRETAINER, REED
-
1310-28430 SCREW, (#6-32 x .25)SCREW, (#6-32 x .25)
-
1427-357391 GASKET, REED BLOCK TO CRANKCASEGASKET, REED BLOCK TO CRANKCASE
-
1530-72961 BEARING, Ball, CRANKCASE (LOWER)BEARING, Ball, CRANKCASE (LOWER)
-
1626-56397 SEAL, Oil, CRANKCASE (LOWER)SEAL, Oil, CRANKCASE (LOWER)
-
1715-31412A1 SHIMSHIM
-
181132-6352A1 HOUSING ASSEMBLY, Bearing, UPPERHOUSING ASSEMBLY, Bearing, UPPER
-
1930-72961 BEARING, Ball, UPPER BEARING HOUSINGBEARING, Ball, UPPER BEARING HOUSING
-
2031-31410 BEARING, Roller, UPPER BEARING HOUSINGBEARING, Roller, UPPER BEARING HOUSING
-
2126-66301 SEAL, Oil, UPPER BEARING HOUSINGSEAL, Oil, UPPER BEARING HOUSING
-
2225-20863 O-RING, UPPER BEARING HOUSINGO-RING, UPPER BEARING HOUSING
-
2354-34598 CLAMP, HOLD DOWNCLAMP, HOLD DOWN
-
2410-36205 SCREW, (#10-24 x .563)SCREW, (#10-24 x .563)
-
2524-34731 SPRING, HOLD DOWN RING CLAMPSPRING, HOLD DOWN RING CLAMP
-
2610-39002 SCREW (1/2")SCREW (1/2")
-
2735658 COVER, TRANSFER COVERCOVER, TRANSFER COVER
-
2827-35657 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2910-20720 SCREW, (.190-24 x .62)SCREW, (.190-24 x .62)
-
301016-7070A1 COVER ASSEMBLY, CYLINDER BLOCKCOVER ASSEMBLY, CYLINDER BLOCK
-
3166019 MOUNT, RUBBER - COVER TO TOP COWLMOUNT, RUBBER - COVER TO TOP COWL
-
3213-20202 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
3311-22053 NUT, (.312-24), RUBBER MOUNT TO COVERNUT, (.312-24), RUBBER MOUNT TO COVER
-
3427-416151 GASKET, COVER TO CYLINDER BLOCKGASKET, COVER TO CYLINDER BLOCK
-
3510-76630 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
3627-416141 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
3746234 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
3827-416141 GASKETGASKET
-
3946171 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
4010-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
-27-78139A80 GASKET SETGASKET SET
-
-87096A79 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
