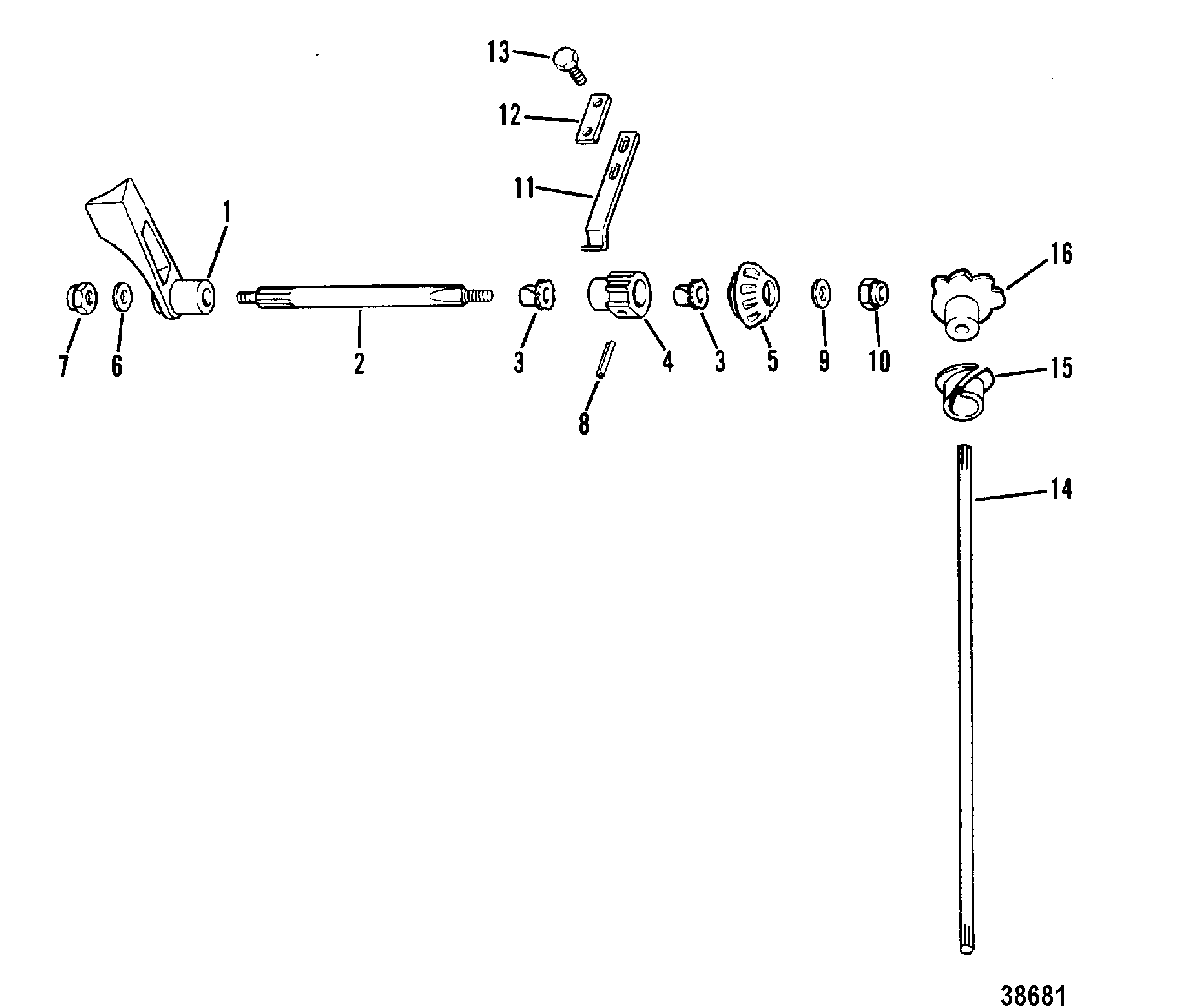

SHIFT CONTROL LINKAGE для Mercury - 4 (1 CYL. PRODUCT OF USA) 9258281 & Up
-
№АртикулНазвание
-
193730T HANDLE, SHIFT CONTROLHANDLE, SHIFT CONTROL
-
266378 SHAFT, CONTROL HANDLESHAFT, CONTROL HANDLE
-
323-66375 BUSHING, NYLON - SHIFT CONTROL HANDLEBUSHING, NYLON - SHIFT CONTROL HANDLE
-
466414 CAM, SHIFT SHAFTCAM, SHIFT SHAFT
-
543-66377 SECTOR GEAR, SHIFT CONTROL HANDLESECTOR GEAR, SHIFT CONTROL HANDLE
-
612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
711-826709109 NUTNUT
-
817-25905 PIN, DETENT CAM TO SHIFT SHAFTPIN, DETENT CAM TO SHIFT SHAFT
-
912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1011-8267089 NUT, (.250-28)NUT, (.250-28)
-
1124-39627 SPRING, DETENT - CRANKCASESPRING, DETENT - CRANKCASE
-
1239601 PLATE, DETENT SPRINGPLATE, DETENT SPRING
-
1310-25764 SCREW, (.190-32 x .50)SCREW, (.190-32 x .50)
-
1471660 SHIFT SHAFT, UPPERSHIFT SHAFT, UPPER
-
1523-30677 BUSHING, NYLON - SHIFT CONTROL SHAFTBUSHING, NYLON - SHIFT CONTROL SHAFT
-
1643-86686A1 SECTOR GEAR, SHIFT SHAFTSECTOR GEAR, SHIFT SHAFT
