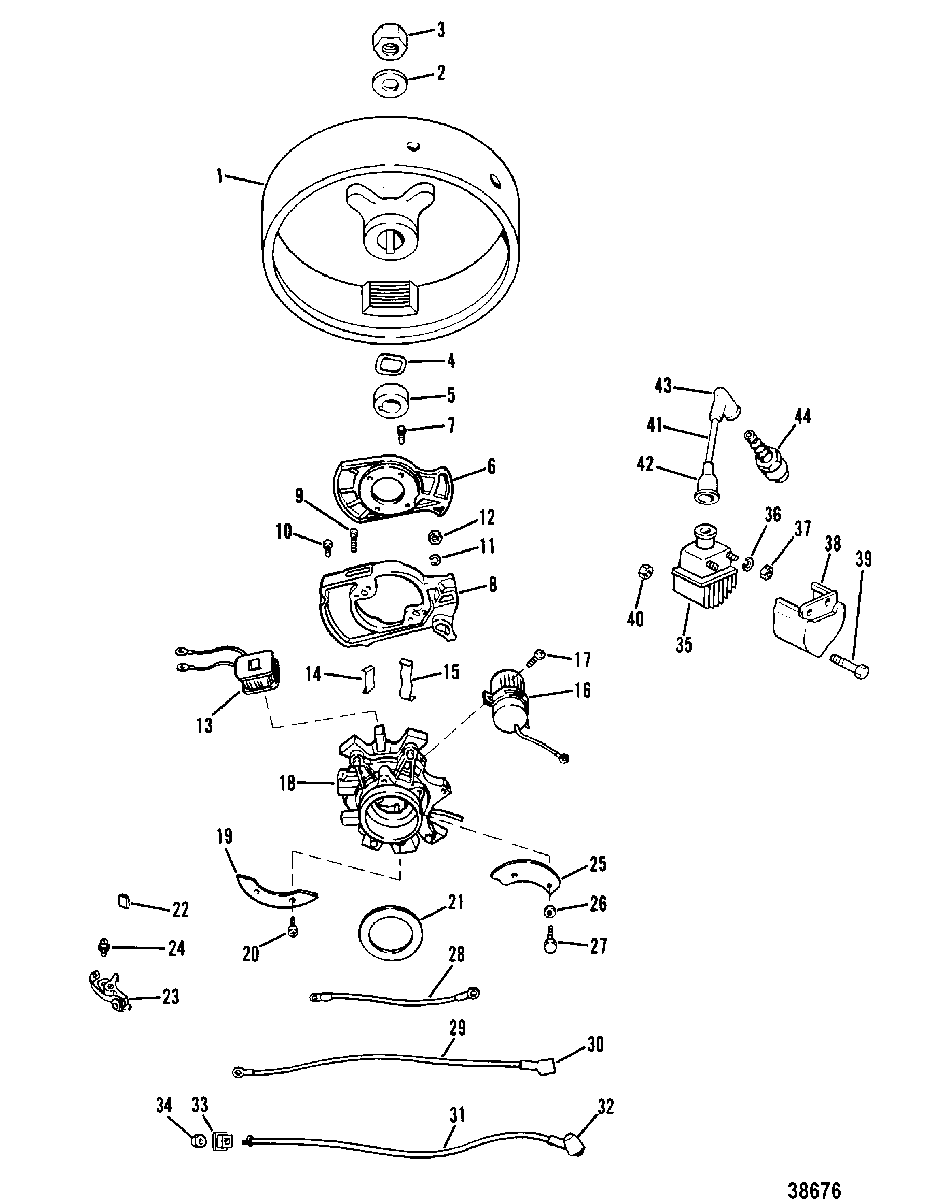

FLYWHEEL AND IGNITION COMPONENTS для Mercury - 4 (1 CYL. PRODUCT OF USA) 9258281 & Up
-
№АртикулНазвание
-
1236-4475A1 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
212-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
311-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
413-35629 WASHER, WAVE-CAM TENSIONWASHER, WAVE-CAM TENSION
-
5336-4465 CAMCAM
-
6336-4524A1 COVER ASSEMBLYCOVER ASSEMBLY
-
710-60491 SCREW, (#8-32 x .620), COVER TO MODULESCREW, (#8-32 x .620), COVER TO MODULE
-
8336-4516A2 IGNITION MODULE ASSEMBLYIGNITION MODULE ASSEMBLY
-
910-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
1010-36046 SCREW, MODULE-COIL LEAD (1/4")SCREW, MODULE-COIL LEAD (1/4")
-
1113-26996 LOCKWASHER, (#10) Stainless Steel, MODUEL TERMINALSLOCKWASHER, (#10) Stainless Steel, MODUEL TERMINALS
-
1211-45076 NUT, (#10-32) Brass, MODULE TERMINALSNUT, (#10-32) Brass, MODULE TERMINALS
-
13336-4470A1 COIL ASSEMBLY
HIGH SPPEDCOIL ASSEMBLY
HIGH SPPED -
13336-4469A1 COIL ASSEMBLY
LOW SPEEDCOIL ASSEMBLY
LOW SPEED -
1454-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1554-59539 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
16336-4463 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
1710-62269 SCREW, (#10-32 x .437), CONDENSER ATTACHINGSCREW, (#10-32 x .437), CONDENSER ATTACHING
-
18336-4476A6 STATOR ASSEMBLYSTATOR ASSEMBLY
-
19336-4458 PLATE, STATOR HOLD DOWNPLATE, STATOR HOLD DOWN
-
2010-35400 SCREW, HOLD DOWN PLATE TO STATOR (7/16")SCREW, HOLD DOWN PLATE TO STATOR (7/16")
-
2115-33910015 SHIM, STATOR PLATE TO UPPER END CAPSHIM, STATOR PLATE TO UPPER END CAP
-
22336-3989 WICK, CAM WIPERWICK, CAM WIPER
-
23336-4318A2 MAKER ASSEMBLY, STATOR HOUSINGMAKER ASSEMBLY, STATOR HOUSING
-
2410-56266 SCREW, MAKER TO STATOR HOUSING (3/8")SCREW, MAKER TO STATOR HOUSING (3/8")
-
2556520 CAMCAM
-
2610-69054 SCREW, (.250-20 x .620), THROTTLE CAM TO CONTACT HOUSINGSCREW, (.250-20 x .620), THROTTLE CAM TO CONTACT HOUSING
-
2712-37998 WASHER, THROTTLE CAM ATTACHING SCREWWASHER, THROTTLE CAM ATTACHING SCREW
-
2856757A5 WIRE ASSEMBLY, Jumper (BLACK-4-1/4")WIRE ASSEMBLY, Jumper (BLACK-4-1/4")
-
2956318A11 LEAD ASSEMBLY (GREEN-12-1/4")LEAD ASSEMBLY (GREEN-12-1/4")
-
3038938 BOOT, LEAD ASSEMBLYBOOT, LEAD ASSEMBLY
-
3156316A4 CABLE ASSEMBLY, STATOR HOUSING (WHITE-103/4")CABLE ASSEMBLY, STATOR HOUSING (WHITE-103/4")
-
3238938 BOOT, CABLEBOOT, CABLE
-
33336-4460 INSULATOR, CABLE TO CONTACT HOUSINGINSULATOR, CABLE TO CONTACT HOUSING
-
3411-56325 NUT, CABLE INSULATORNUT, CABLE INSULATOR
-
35336-4528T2 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
3613-26996 LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINALLOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
-
3711-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
3866355 COVERCOVER
-
3910-61530 SCREWSCREW
-
4011-27164 NUT AND LOCKWASHER, (#10-32), COIL COVER SCREWNUT AND LOCKWASHER, (#10-32), COIL COVER SCREW
-
4184-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
42332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
4385-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
4433-97182Q SPARK PLUG (NGK #BUHW-2)SPARK PLUG (NGK #BUHW-2)
-
4433-14103Q SPARK PLUG
CANADA AND BELGIUMSPARK PLUG
CANADA AND BELGIUM
