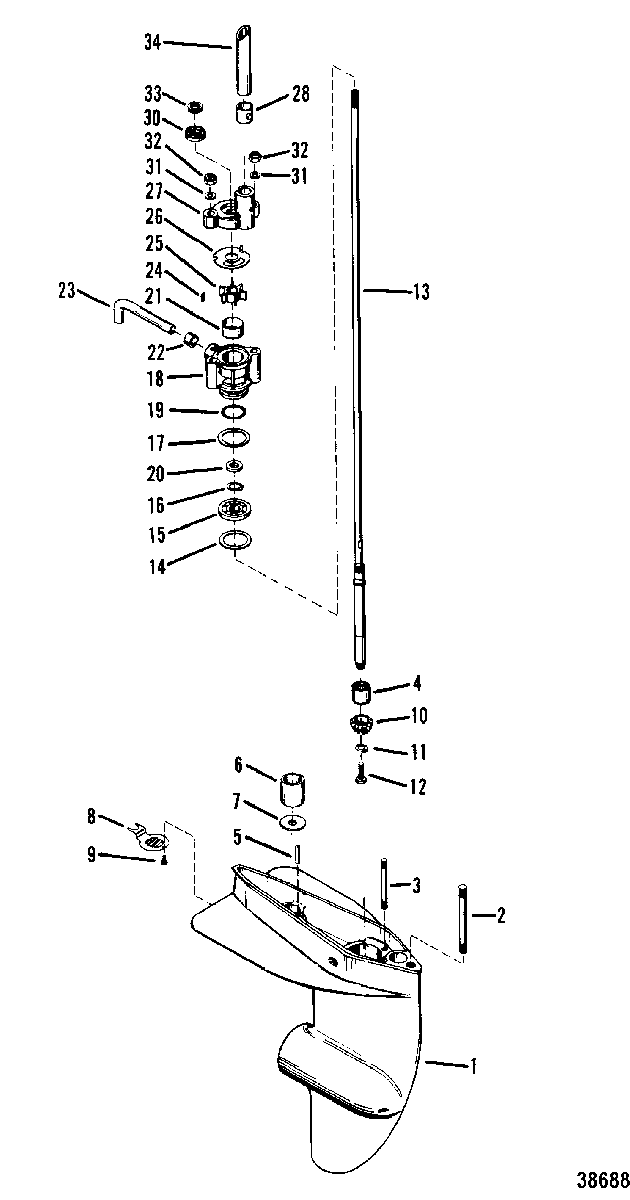

GEAR HOUSING(DRIVESHAFT) для Mercury - 4 (1 CYL. PRODUCT OF USA) 9258281 & Up
-
№АртикулНазвание
-
-1630-7360A29 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) -
-1630-7360A30 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) -
11630-7360A11 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-58138 STUD, GEAR HOUSING (3-1/2")STUD, GEAR HOUSING (3-1/2")
-
316-58136 STUD, WATER PUMP HOUSING (2-3/4")STUD, WATER PUMP HOUSING (2-3/4")
-
431-22756 BEARING, Roller, DRIVE SHAFTBEARING, Roller, DRIVE SHAFT
-
517-20032 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
626-33613 SEAL, RUBBER - WATER INTAKE TUBESEAL, RUBBER - WATER INTAKE TUBE
-
723-86215 BEARING, NYLON - INTAKE TUBE SEALBEARING, NYLON - INTAKE TUBE SEAL
-
835-33425 SCREEN, WATER INTAKESCREEN, WATER INTAKE
-
910-25612 SCREW, WATER INTAKE SCREENSCREW, WATER INTAKE SCREEN
-
1043-98696 GEAR, PinionGEAR, Pinion
-
1114-30377 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
1210-30376 SCREW, (#12-28 x .750), PINION GEAR TO DRIVE SHAFTSCREW, (#12-28 x .750), PINION GEAR TO DRIVE SHAFT
-
1345-95873A1 DRIVESHAFT
(SHORT SHAFT)(USE WITH 47-89980 IMPELLER)DRIVESHAFT
(SHORT SHAFT)(USE WITH 47-89980 IMPELLER) -
1345-95874A1 DRIVESHAFT
(LONG SHAFT)(USE WITH 47-89980 IMPELLER)DRIVESHAFT
(LONG SHAFT)(USE WITH 47-89980 IMPELLER) -
1415-30527A1 SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
-
1530-70944 BEARING, Ball, DRIVE SHAFTBEARING, Ball, DRIVE SHAFT
-
1653-30523 RING, Retaining, BALL BEARINGRING, Retaining, BALL BEARING
-
1715-30527A1 SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
-
1846-70941T01 HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89981 IMPELLER)HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89981 IMPELLER) -
1846-92970A1 HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89980 IMPELLER)HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89980 IMPELLER) -
1925-29439 O-RINGO-RING
-
2026-30900T SEAL, Oil
(USE WITH 47-89981 IMPELLER)SEAL, Oil
(USE WITH 47-89981 IMPELLER) -
2026-897153 SEAL, Oil
(USE WITH 47-89980 IMPELLER)SEAL, Oil
(USE WITH 47-89980 IMPELLER) -
2170977T INSERTINSERT
-
2226-33613 SEAL, WATER INTAKE TUBESEAL, WATER INTAKE TUBE
-
2332-34293 TUBE, WATER INTAKETUBE, WATER INTAKE
-
2428-8M0032835 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2547-89981 IMPELLER
(MOLDED 47-89981 - .456 I.D.)IMPELLER
(MOLDED 47-89981 - .456 I.D.) -
2547-89980 IMPELLER
(MOLDED 47-89980 - .438 I.D.)IMPELLER
(MOLDED 47-89980 - .438 I.D.) -
2646895 FACE PLATE, WATER PUMPFACE PLATE, WATER PUMP
-
2793224A1 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2826-36558 SEAL, WATER PUMP COVERSEAL, WATER PUMP COVER
-
3026-30913 SEAL, Oil, WATER PUMP COVERSEAL, Oil, WATER PUMP COVER
-
3112-20533 WASHERWASHER
-
3211-8267119 NUT, (.250-28), WATER PUMP HOUSING STUDNUT, (.250-28), WATER PUMP HOUSING STUD
-
3325-30526 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
3423-31792T SLEEVE, GUIDE - INLET TUBESLEEVE, GUIDE - INLET TUBE
-
-27-78139A80 GASKET SETGASKET SET
-
-46-70941A3 REPAIR KIT, Water Pump
(USE WITH 47-89981 IMPELLER)REPAIR KIT, Water Pump
(USE WITH 47-89981 IMPELLER) -
-46-92970A5 REPAIR KIT, Water Pump
(USE WITH 47-89980 IMPELLER)REPAIR KIT, Water Pump
(USE WITH 47-89980 IMPELLER) -
-26-77066A1 SEAL KIT, Water PumpSEAL KIT, Water Pump
