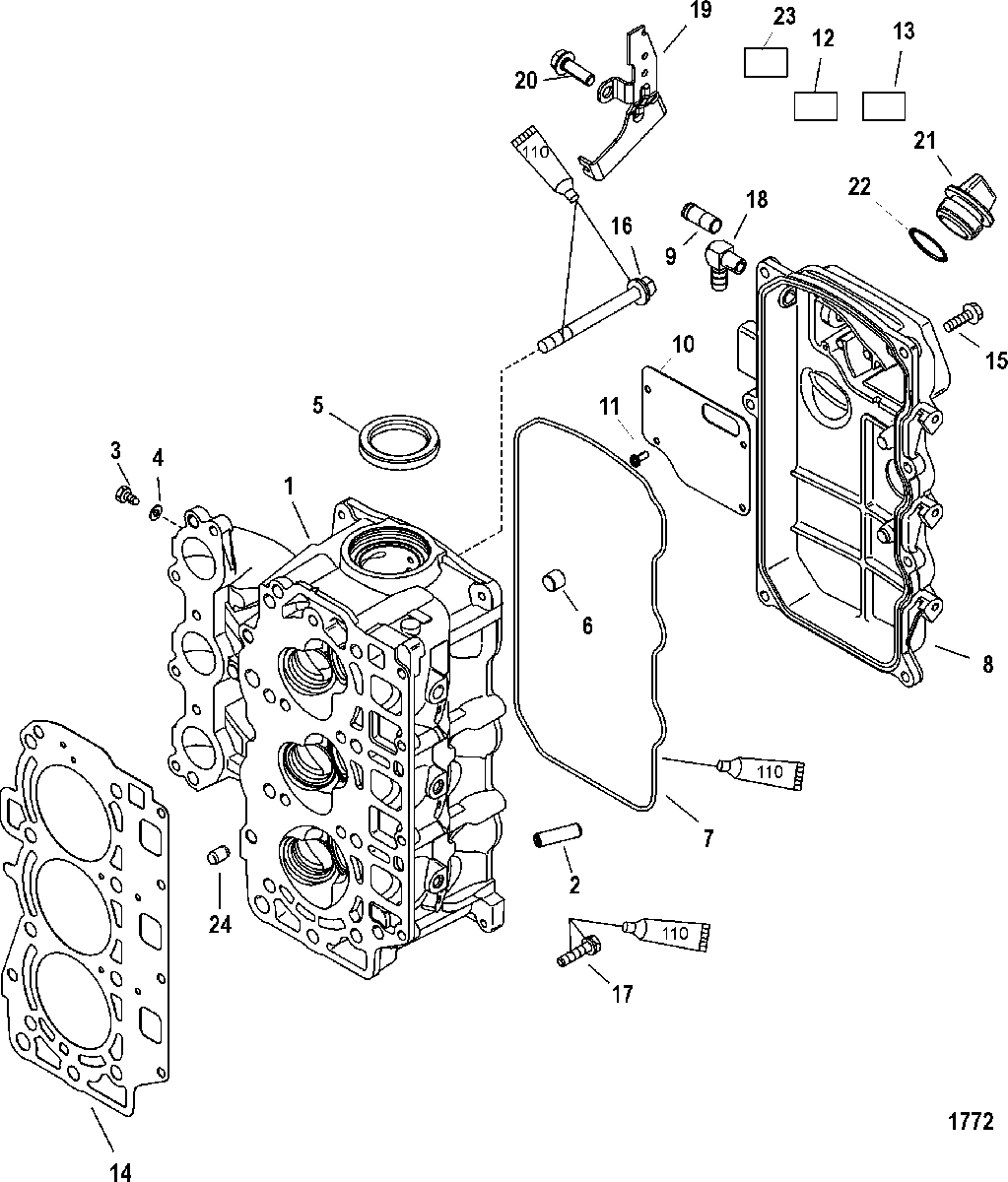

Cylinder Head для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
-893504T01 CYLINDER HEAD ASSEMBLY
(ELECTRIC)CYLINDER HEAD ASSEMBLY
(ELECTRIC) -
-893504T02 CYLINDER HEAD ASSEMBLY
(MANUAL)CYLINDER HEAD ASSEMBLY
(MANUAL) -
1893504T CYLINDER HEAD
(USE W/OIL PUMP THAT HAS OVAL PORT)CYLINDER HEAD
(USE W/OIL PUMP THAT HAS OVAL PORT) -
1834778T2 CYLINDER HEAD
(USE W/ OIL PUMP THAT HAS ROUND PORT)CYLINDER HEAD
(USE W/ OIL PUMP THAT HAS ROUND PORT) -
2858266 GUIDEGUIDE
-
310-4000325 SCREW, (M6 x 8)SCREW, (M6 x 8)
-
412-859768 WASHERWASHER
-
526-893549 SEAL, OilSEAL, Oil
-
622-875209 PIPE PLUGPIPE PLUG
-
725-893898 O-RINGO-RING
-
8893693A04 COVERCOVER
-
922-825054 BREATHER PIPEBREATHER PIPE
-
10855236 PLATE, BafflePLATE, Baffle
-
1110-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
12NSS NOT SOLD SEPARATE, Decal- Servicing ReferralNOT SOLD SEPARATE, Decal- Servicing Referral
-
13NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve ClearanceNOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
-
1427-8M0118180 GASKETGASKET
-
1510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1610-82503395 SCREW, (M9 x 95)SCREW, (M9 x 95)
-
1710-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1822-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
19830294T1 BRACKET
(HANDLE)BRACKET
(HANDLE) -
2010-40011126 SCREW, (M6 x 13) Stainless Steel
(HANDLE)SCREW, (M6 x 13) Stainless Steel
(HANDLE) -
21859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
2225-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
23NSS NOT SOLD SEPARATE, Decal- HP-IDNOT SOLD SEPARATE, Decal- HP-ID
-
2417-825010 PIN, DowelPIN, Dowel
-
-27-825231A02 GASKET SET, EngineGASKET SET, Engine
-
-61-803017T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-803016T01 POWERHEAD ASSEMBLY
(BIGFOOT)POWERHEAD ASSEMBLY
(BIGFOOT)
