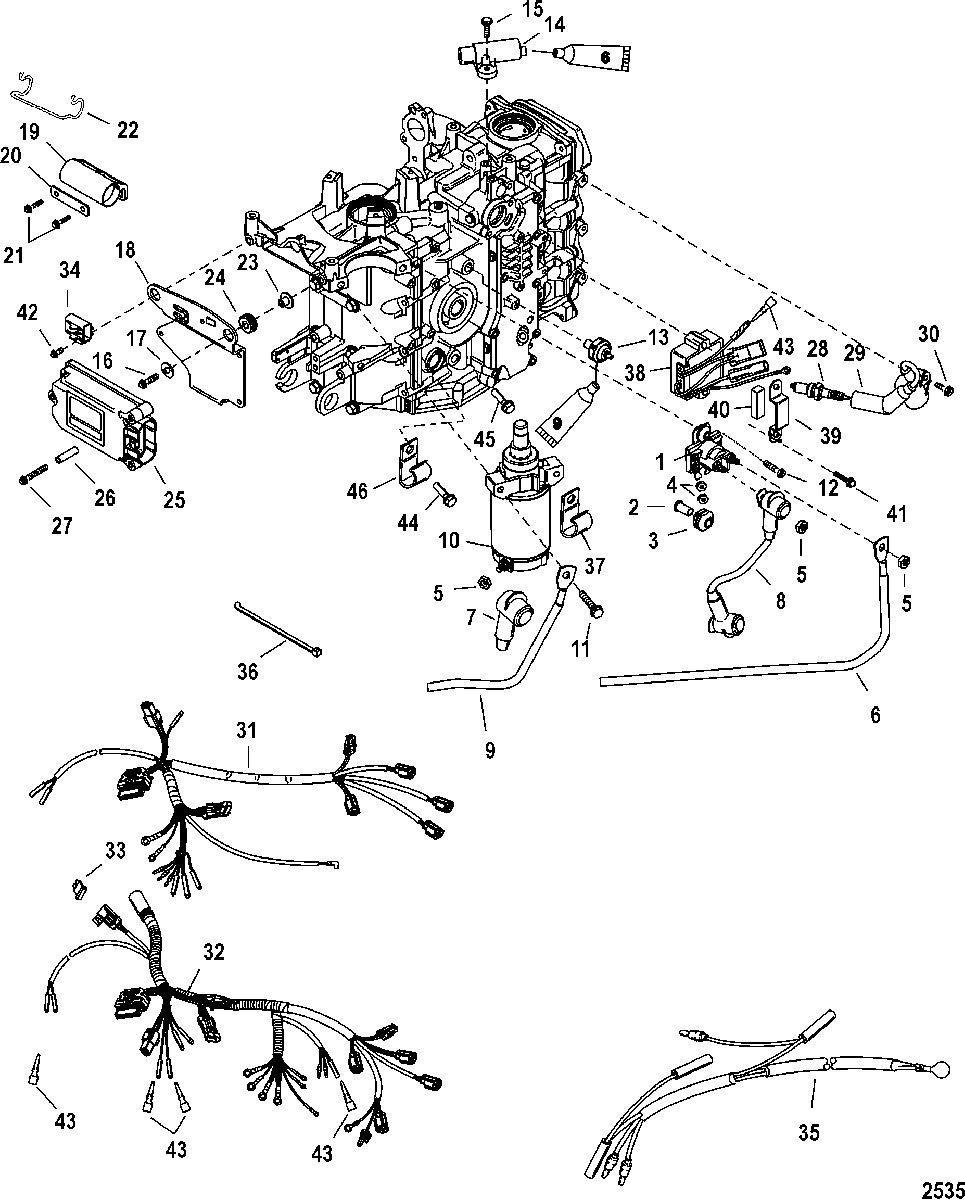

Electrical Components для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
189-850187T1 SOLENOID ASSEMBLY
(ELECTRIC)SOLENOID ASSEMBLY
(ELECTRIC) -
223-818968 BUSHING
(ELECTRIC)BUSHING
(ELECTRIC) -
325-818967 GROMMET
(ELECTRIC)GROMMET
(ELECTRIC) -
411-26419 NUT, (#8-32) Brass
(ELECTRIC)NUT, (#8-32) Brass
(ELECTRIC) -
511-94330 NUT, (.250-20) Brass
(ELECTRIC)NUT, (.250-20) Brass
(ELECTRIC) -
684-88439A9 CABLE ASSEMBLY, Battery - Positive
(ELECTRIC)CABLE ASSEMBLY, Battery - Positive
(ELECTRIC) -
785-880786 BOOT, Insulator - Red
(ELECTRIC)BOOT, Insulator - Red
(ELECTRIC) -
884-93388A16 CABLE ASSEMBLY, (8.50 Inches)
(ELECTRIC)CABLE ASSEMBLY, (8.50 Inches)
(ELECTRIC) -
984-88439A4 CABLE ASSEMBLY, Battery - Negative
(ELECTRIC)CABLE ASSEMBLY, Battery - Negative
(ELECTRIC) -
1050-893887T STARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T800999/BEL-0P267999 and below & BelowSTARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T800999/BEL-0P267999 and below & Below -
1050-893887T STARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T801000/BEL-0P268000 and up & UpSTARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T801000/BEL-0P268000 and up & Up -
1110-40011153 SCREW, (M8 x 45) Stainless Steel
(ELECTRIC)SCREW, (M8 x 45) Stainless Steel
(ELECTRIC) -
1110-40011149 SCREW, (M8 x 25) Stainless Steel
(MANUAL)SCREW, (M8 x 25) Stainless Steel
(MANUAL) -
1210-82684430 SCREW, (M6 x 30)
(ELECTRIC)SCREW, (M6 x 30)
(ELECTRIC) -
1210-8248324 SCREW, (M6 x 16)
(MANUAL)SCREW, (M6 x 16)
(MANUAL) -
1387-8M0098207 PRESSURE SWITCHPRESSURE SWITCH
-
148M0082988 SENSORSENSOR
-
1510-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1610-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1712-4002316 WASHERWASHER
-
18859224 PLATEPLATE
-
19856836001 RETAINER
(ELECTRIC)RETAINER
(ELECTRIC) -
20856040 BRACKET
(ELECTRIC)BRACKET
(ELECTRIC) -
2110-82129114 SCREW, (M6 x 14)
(ELECTRIC)SCREW, (M6 x 14)
(ELECTRIC) -
2292753 RETAINER
(ELECTRIC)(QTY. OF 2 ON HANDLE)RETAINER
(ELECTRIC)(QTY. OF 2 ON HANDLE) -
2323-856954 BUSHINGBUSHING
-
2425-834985 GROMMETGROMMET
-
2587843302S ECM, Engine Control ModuleECM, Engine Control Module
-
2623-8539201 BUSHINGBUSHING
-
2710-82129140 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2833-827858Q SPARK PLUG, NGK-DPR6EA-9SPARK PLUG, NGK-DPR6EA-9
-
29339-858942T1 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
3010-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3184-859196T1 HARNESS ASSEMBLY, Engine Wiring
(MANUAL)HARNESS ASSEMBLY, Engine Wiring
(MANUAL) -
3284-859197T3 HARNESS ASSEMBLY, Engine Wiring
(ELECTRIC)HARNESS ASSEMBLY, Engine Wiring
(ELECTRIC) -
3388-812619 FUSE, Yellow - 20 Ampere
(ELECTRIC)FUSE, Yellow - 20 Ampere
(ELECTRIC) -
34828054 COVER, Fuse
(ELECTRIC)COVER, Fuse
(ELECTRIC) -
3584-852375A6 HARNESS ASSEMBLY, Extension
(ELECTRIC HANDLE)HARNESS ASSEMBLY, Extension
(ELECTRIC HANDLE) -
3654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3754-55098 J CLIP
(MANUAL)J CLIP
(MANUAL) -
38883071T1 REGULATOR, Voltage
(ELECTRIC)REGULATOR, Voltage
(ELECTRIC) -
39893771 BRACKET
(ELECTRIC)BRACKET
(ELECTRIC) -
408308971 FOAM PAD
(ELECTRIC)FOAM PAD
(ELECTRIC) -
4110-8248329 SCREW, (M6 x 40)
(ELECTRIC)SCREW, (M6 x 40)
(ELECTRIC) -
4110-8248324 SCREW, (M6 x 16)
(MANUAL)SCREW, (M6 x 16)
(MANUAL) -
4210-82129110 SCREW, (M6 x 10)
(ELECTRIC)SCREW, (M6 x 10)
(ELECTRIC) -
4313541 PLUG, Male
(MALE)PLUG, Male
(MALE) -
4410-8248324 SCREW, (M6 x 16)
(ELECTRIC-NON POWER TRIM)SCREW, (M6 x 16)
(ELECTRIC-NON POWER TRIM) -
4510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4654-65292 J CLIP
(ELECTRIC-NON POWER TRIM)J CLIP
(ELECTRIC-NON POWER TRIM) -
-61-803017T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-803016T01 POWERHEAD ASSEMBLY
(BIGFOOT)POWERHEAD ASSEMBLY
(BIGFOOT)
