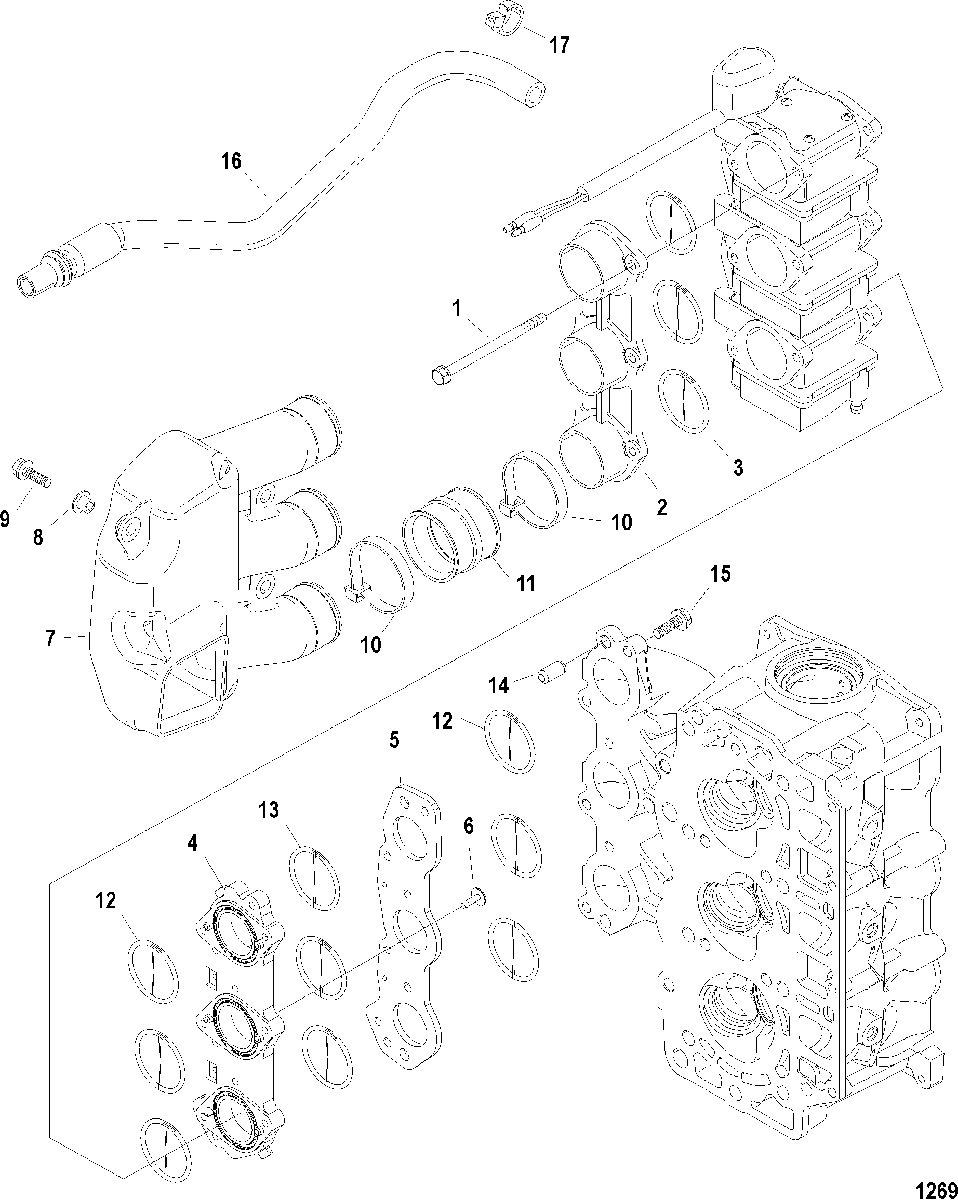

Intake для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
110-82615890 SCREW, (M6 x 90)SCREW, (M6 x 90)
-
2856126T INTAKE, AirINTAKE, Air
-
325-856525 O-RINGO-RING
-
4834783T PLATEPLATE
-
5834784T ISOLATOR
(40)ISOLATOR
(40) -
5834784T1 ISOLATOR
(30)ISOLATOR
(30) -
619-827633 PLUGPLUG
-
7856127A2 ATTENUATOR ASSEMBLY, SoundATTENUATOR ASSEMBLY, Sound
-
823-856954 BUSHINGBUSHING
-
910-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1054-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
1126-856128001 SEAL
SN# USA-0T979999/BEL-0P325499 and below & BelowSEAL
SN# USA-0T979999/BEL-0P325499 and below & Below -
1126-856128001 SEAL
SN# USA-0T980000/BEL-0P325500 and up & UpSEAL
SN# USA-0T980000/BEL-0P325500 and up & Up -
1225-8250572 O-RINGO-RING
-
1325-8250572 O-RINGO-RING
-
1417-23784 PIN, DowelPIN, Dowel
-
1510-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1632-8M0021347 BREATHER HOSEBREATHER HOSE
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
-27-825231A02 GASKET SET, EngineGASKET SET, Engine
