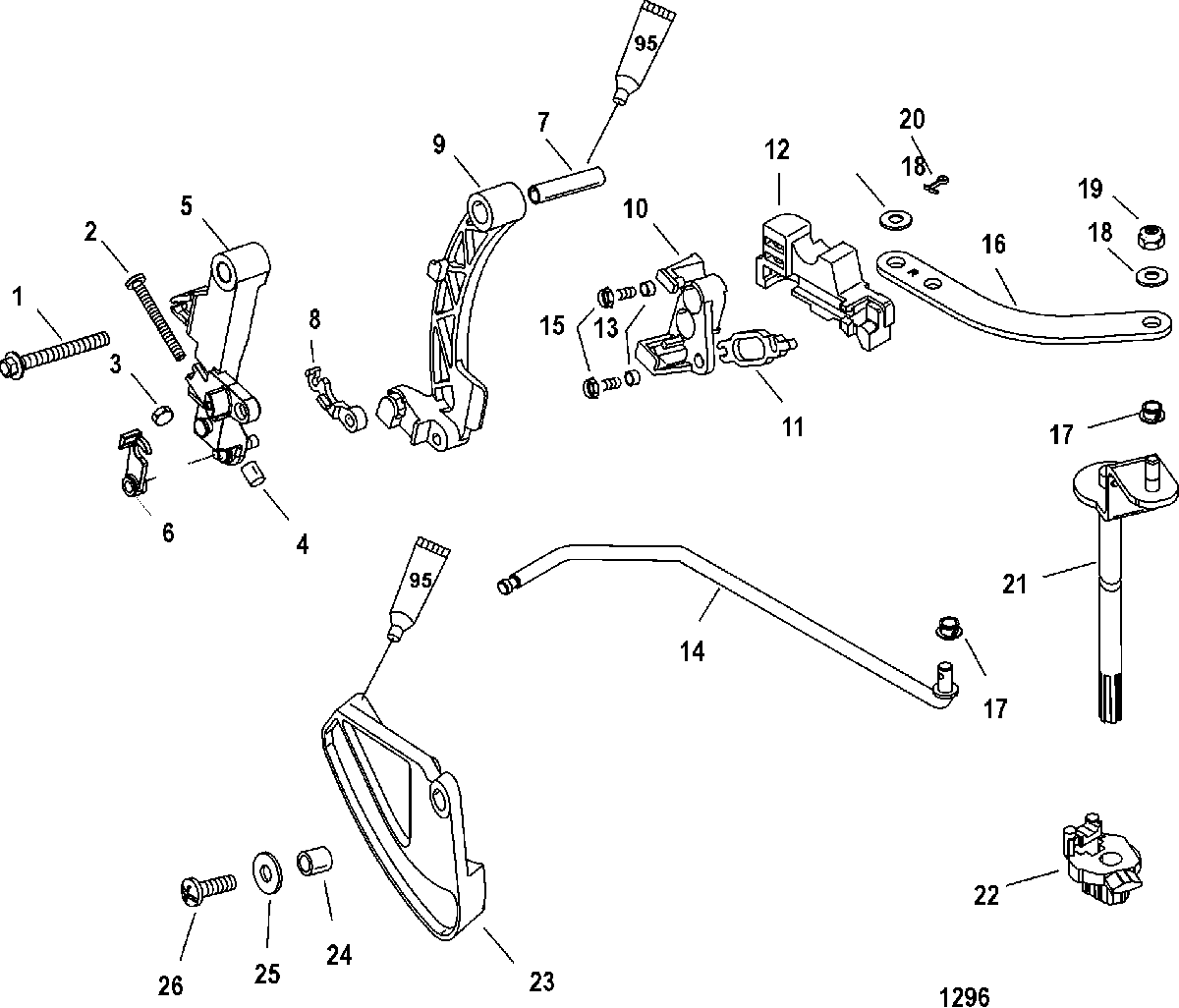

Linkage(Electric Bigfoot) для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
6883160 RETAINERRETAINER
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINERRETAINER
-
98259571 LEVER, ShiftLEVER, Shift
-
10827706A4 BRACKET
SN# 0T549732 and below & BelowBRACKET
SN# 0T549732 and below & Below -
10827706A4 BRACKET
SN# 0T549733 and up & UpBRACKET
SN# 0T549733 and up & Up -
1198889 LATCHLATCH
-
12NSS NOT SOLD SEPARATE, Guide-Shift Rod
SN# 0T549733 and up & UpNOT SOLD SEPARATE, Guide-Shift Rod
SN# 0T549733 and up & Up -
12827706A4 GUIDE, Shift Rod
SN# 0T549732 and below & BelowGUIDE, Shift Rod
SN# 0T549732 and below & Below -
1323-15885 SLEEVESLEEVE
-
14893777 SHIFT RODSHIFT ROD
-
1510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
16893769A01 SHIFT LINKSHIFT LINK
-
1723-48475 BUSHINGBUSHING
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2018-210711 COTTER PINCOTTER PIN
-
21850166T2 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
2223-850165 BUSHINGBUSHING
-
238535853 CAM, ThrottleCAM, Throttle
-
2423-309772 SPACERSPACER
-
2512-4002314 WASHERWASHER
-
2610-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
