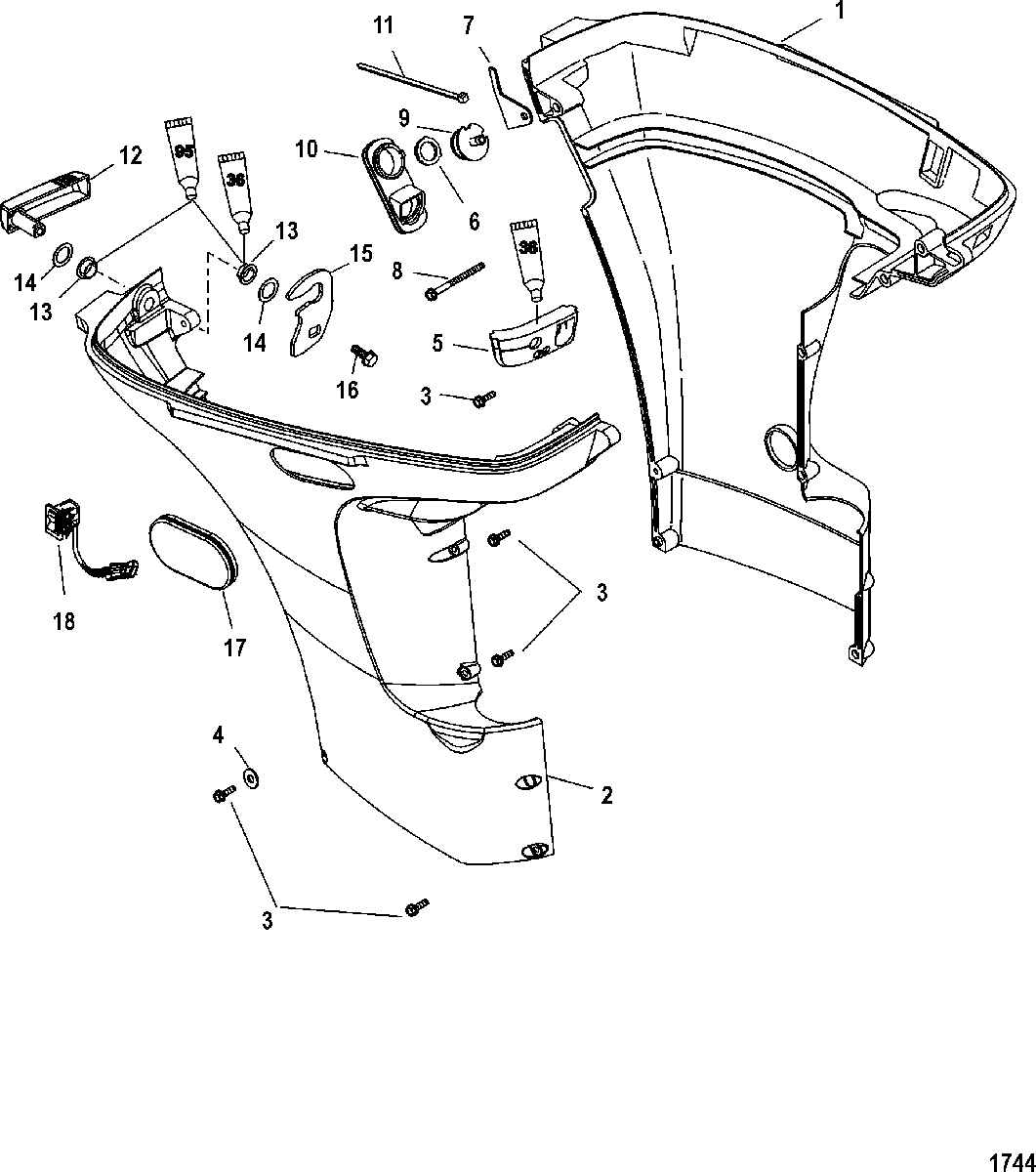

Bottom Cowl для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
14020-826277T1 BOTTOM COWL (Port)BOTTOM COWL (Port)
-
24020-826278T7 BOTTOM COWL (Starboard)BOTTOM COWL (Starboard)
-
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5825238002 SEAL
SN# USA-0T979999/Bel-0P325499 & BelowSEAL
SN# USA-0T979999/Bel-0P325499 & Below -
5825238002 SEAL
SN# USA-0T980000/Bel-0P325500 & UpSEAL
SN# USA-0T980000/Bel-0P325500 & Up -
612-855576 WASHERWASHER
-
727-855627 GASKETGASKET
-
810-82684460 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
922-827948 FITTINGFITTING
-
10826273001 BOOT
SN# USA-0T979999/Bel-0P325499 & BelowBOOT
SN# USA-0T979999/Bel-0P325499 & Below -
10826273001 BOOT
SN# USA-0T980000/Bel-0P325500 & UpBOOT
SN# USA-0T980000/Bel-0P325500 & Up -
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
12825782F1 LEVER, Cowl LatchLEVER, Cowl Latch
-
1323-812707 BUSHINGBUSHING
-
1413-12134 WASHER, WaveWASHER, Wave
-
15893766 LATCH HOOKLATCH HOOK
-
1610-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1725-883307 GROMMETGROMMET
-
1887-8M0042300 SWITCH, Trim
SN# 1B226999 & BelowSWITCH, Trim
SN# 1B226999 & Below -
1887-8M0042300 SWITCH, Trim
SN# 0P400999 & BelowSWITCH, Trim
SN# 0P400999 & Below -
1887-8M0042300 SWITCH, Trim
SN# 1B227000 & UpSWITCH, Trim
SN# 1B227000 & Up -
1887-8M0042300 SWITCH, Trim
SN# 0P401000 & UpSWITCH, Trim
SN# 0P401000 & Up -
1887-8M0042300 SWITCH, Trim
SN# 1C000001 & UpSWITCH, Trim
SN# 1C000001 & Up
