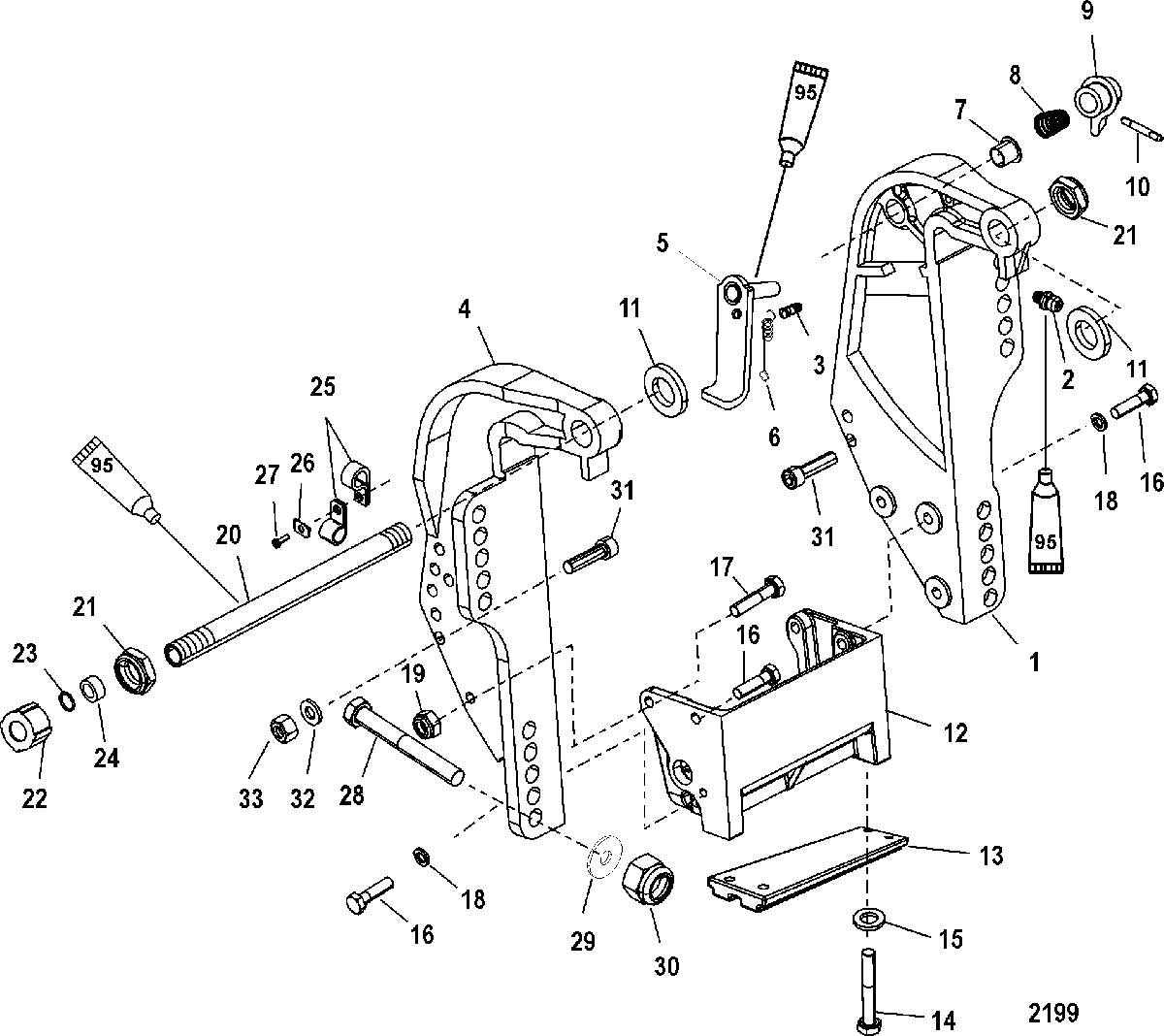

Transom Bracket для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
13418-822866T04 BRACKET ASSEMBLY, Transom (Port)
SN# USA-1B226999 & BelowBRACKET ASSEMBLY, Transom (Port)
SN# USA-1B226999 & Below -
13418-822866T04 BRACKET ASSEMBLY, Transom
SN# Bel-0P400999 & BelowBRACKET ASSEMBLY, Transom
SN# Bel-0P400999 & Below -
13418-822866T04 BRACKET, Transom - Port
SN# USA-1B227000 & UpBRACKET, Transom - Port
SN# USA-1B227000 & Up -
13418-822866T04 BRACKET, Transom - Port
SN# Bel-0P401000 & UpBRACKET, Transom - Port
SN# Bel-0P401000 & Up -
13418-822866T04 BRACKET, Transom - Port
SN# 1C000001 & UpBRACKET, Transom - Port
SN# 1C000001 & Up -
222-98727 FITTING, GreaseFITTING, Grease
-
317-99604 PIN, GroovePIN, Groove
-
43418-822865T05 BRACKET, Transom (Starboard)BRACKET, Transom (Starboard)
-
43418-822865T05 BRACKET, Transom - StarboardBRACKET, Transom - Starboard
-
5893704T01 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOBKNOB
-
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, Anchor
SN# 1B270274 & BelowBRACKET, Anchor
SN# 1B270274 & Below -
1218486A08 BRACKET, Anchor
SN# 0P413370 & BelowBRACKET, Anchor
SN# 0P413370 & Below -
1218486A08 BRACKET, Anchor
SN# 1C006428 & BelowBRACKET, Anchor
SN# 1C006428 & Below -
1218486A08 BRACKET KIT, Anchor
SN# 1B270275 & UpBRACKET KIT, Anchor
SN# 1B270275 & Up -
1218486A08 BRACKET KIT, Anchor
SN# 0P413371 & UpBRACKET KIT, Anchor
SN# 0P413371 & Up -
1218486A08 BRACKET KIT, Anchor
SN# 1C006429 & UpBRACKET KIT, Anchor
SN# 1C006429 & Up -
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-4000354 SCREW, (M8 x 30)
SN# 1B270274 & BelowSCREW, (M8 x 30)
SN# 1B270274 & Below -
1610-4000354 SCREW, (M8 x 30)
SN# 0P413370 & BelowSCREW, (M8 x 30)
SN# 0P413370 & Below -
1610-4000354 SCREW, (M8 x 30)
SN# 1C006428 & BelowSCREW, (M8 x 30)
SN# 1C006428 & Below -
1610-85594030 SCREW, (M8 x 30)
(Included with Anchor Bracket Kit) SN# 1B270275 & UpSCREW, (M8 x 30)
(Included with Anchor Bracket Kit) SN# 1B270275 & Up -
1610-85594030 SCREW, (M8 x 30)
(Included with Anchor Bracket Kit) SN# 0P413371 & UpSCREW, (M8 x 30)
(Included with Anchor Bracket Kit) SN# 0P413371 & Up -
1610-85594030 SCREW, (M8 x 30)
(Included with Anchor Bracket Kit) SN# 1C006429 & UpSCREW, (M8 x 30)
(Included with Anchor Bracket Kit) SN# 1C006429 & Up -
1710-4000355 SCREW, (M8 x 35)
SN# 1B270274 & BelowSCREW, (M8 x 35)
SN# 1B270274 & Below -
1710-4000355 SCREW, (M8 x 35)
SN# 0P413370 & BelowSCREW, (M8 x 35)
SN# 0P413370 & Below -
1710-4000355 SCREW, (M8 x 35)
SN# 1C006428 & BelowSCREW, (M8 x 35)
SN# 1C006428 & Below -
1710-8M0000586 SCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 1B270275 & UpSCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 1B270275 & Up -
1710-8M0000586 SCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 0P413371 & UpSCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 0P413371 & Up -
1710-8M0000586 SCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 1C006429 & UpSCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 1C006429 & Up -
1813-400257 LOCKWASHER, (M8)
SN# 1B270274 & BelowLOCKWASHER, (M8)
SN# 1B270274 & Below -
1813-400257 LOCKWASHER, (M8)
SN# 0P413370 & BelowLOCKWASHER, (M8)
SN# 0P413370 & Below -
1813-400257 LOCKWASHER, (M8)
SN# 1C006428 & BelowLOCKWASHER, (M8)
SN# 1C006428 & Below -
1812-843108 WASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 1B270275 & UpWASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 1B270275 & Up -
1812-843108 WASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 0P413371 & UpWASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 0P413371 & Up -
1812-843108 WASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 1C006429 & UpWASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 1C006429 & Up -
1911-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
208M0041938 TILT TUBETILT TUBE
-
2111-858869 NUT, (.875-14)NUT, (.875-14)
-
2219624A1 SEAL KIT (Non-Handle)SEAL KIT (Non-Handle)
-
2325-29619 O-RING, (.583 x .103) (Non-Handle)O-RING, (.583 x .103) (Non-Handle)
-
2423-78861 SPACER (Non-Handle)SPACER (Non-Handle)
-
2554-22740 CLIPCLIP
-
268M0084613 C WASHERC WASHER
-
2710-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
2810-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2912-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
3011-82671117 NUT, (.500-20)NUT, (.500-20)
-
3110-4009040 SCREW, (M10 x 40) Stainless SteelSCREW, (M10 x 40) Stainless Steel
-
3212-4002319 WASHERWASHER
-
3311-40140 NUT, (M10)NUT, (M10)
