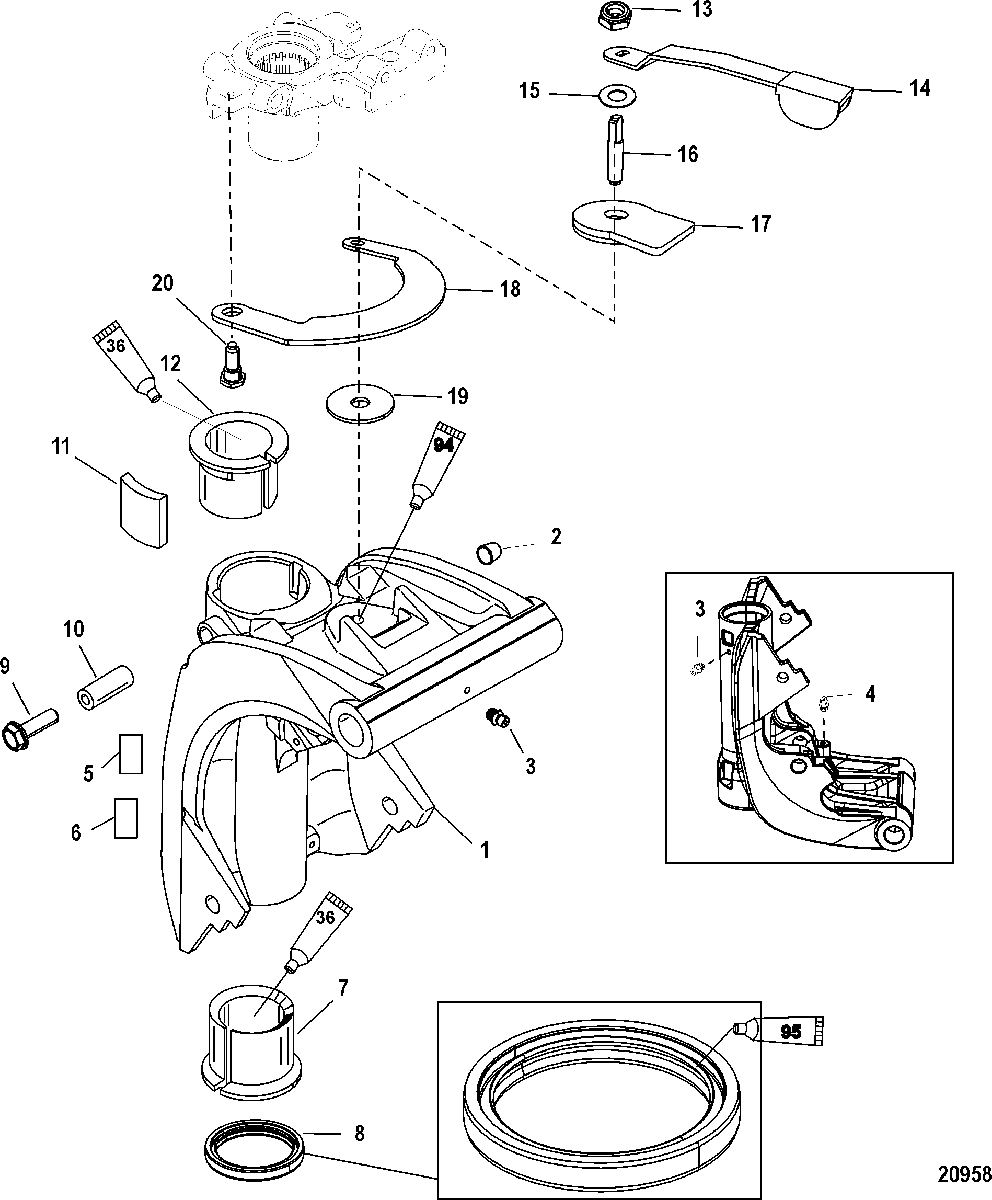

Swivel Bracket для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
11401-850066T01 SWIVEL BRACKETSWIVEL BRACKET
-
223-19606 BEARING, Trim PinBEARING, Trim Pin
-
322-74036 FITTING, GreaseFITTING, Grease
-
422-74036 FITTING, Grease
(Handle)FITTING, Grease
(Handle) -
537-8237011 DECAL, Co-Pilot (Handle)DECAL, Co-Pilot (Handle)
-
6NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
723-821777 BUSHING (Lower)BUSHING (Lower)
-
826-822404 SEALSEAL
-
910-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
910-4008910 SCREW, (M8 x 10) Stainless SteelSCREW, (M8 x 10) Stainless Steel
-
108282451 SEAL, Co-PilotSEAL, Co-Pilot
-
11822397 PUCK (Non Handle)PUCK (Non Handle)
-
1223-8217711 BUSHINGBUSHING
-
1311-8M0042636 NUT, (.375-24) Stainless Steel (Handle)NUT, (.375-24) Stainless Steel (Handle)
-
14823792 LEVER, Co-Pilot (Handle)LEVER, Co-Pilot (Handle)
-
1512-29330 WASHER (Handle)WASHER (Handle)
-
16821961 ROD (Threaded)(Handle)ROD (Threaded)(Handle)
-
178M0006845 PLATE/DISC ASSEMBLY (Handle)PLATE/DISC ASSEMBLY (Handle)
-
188M0007471 PLATE, Swivel Head (Handle)PLATE, Swivel Head (Handle)
-
198165621 DISC, Friction (Handle)DISC, Friction (Handle)
-
2010-768042 SHOULDER SCREW, Hex (Handle)SHOULDER SCREW, Hex (Handle)
