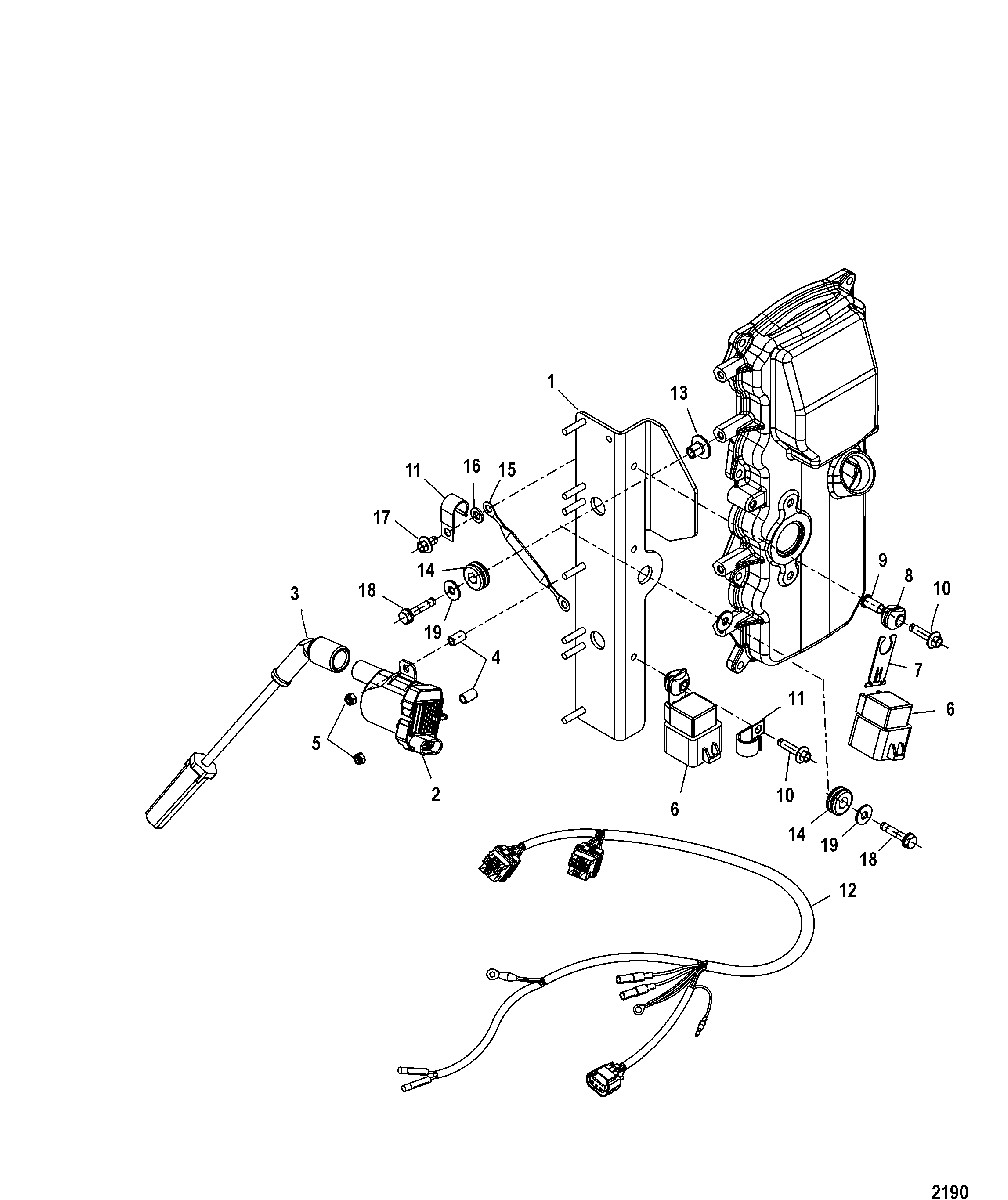

Coil Mounting, USA-0T979999/BEL-0P325499 and Below для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
18778031 PLATE, CoilPLATE, Coil
-
2339-877807A2 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
384-821945T68 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
423-309773 SPACERSPACER
-
511-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
6882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
7828102 BRACKETBRACKET
-
825-818967 GROMMETGROMMET
-
923-818968 BUSHINGBUSHING
-
1010-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1154-55098 J CLIPJ CLIP
-
1284-826802T16 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
1323-856954 BUSHINGBUSHING
-
1425-834985 GROMMETGROMMET
-
1584-858414A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1710-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1810-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1912-4002316 WASHERWASHER
