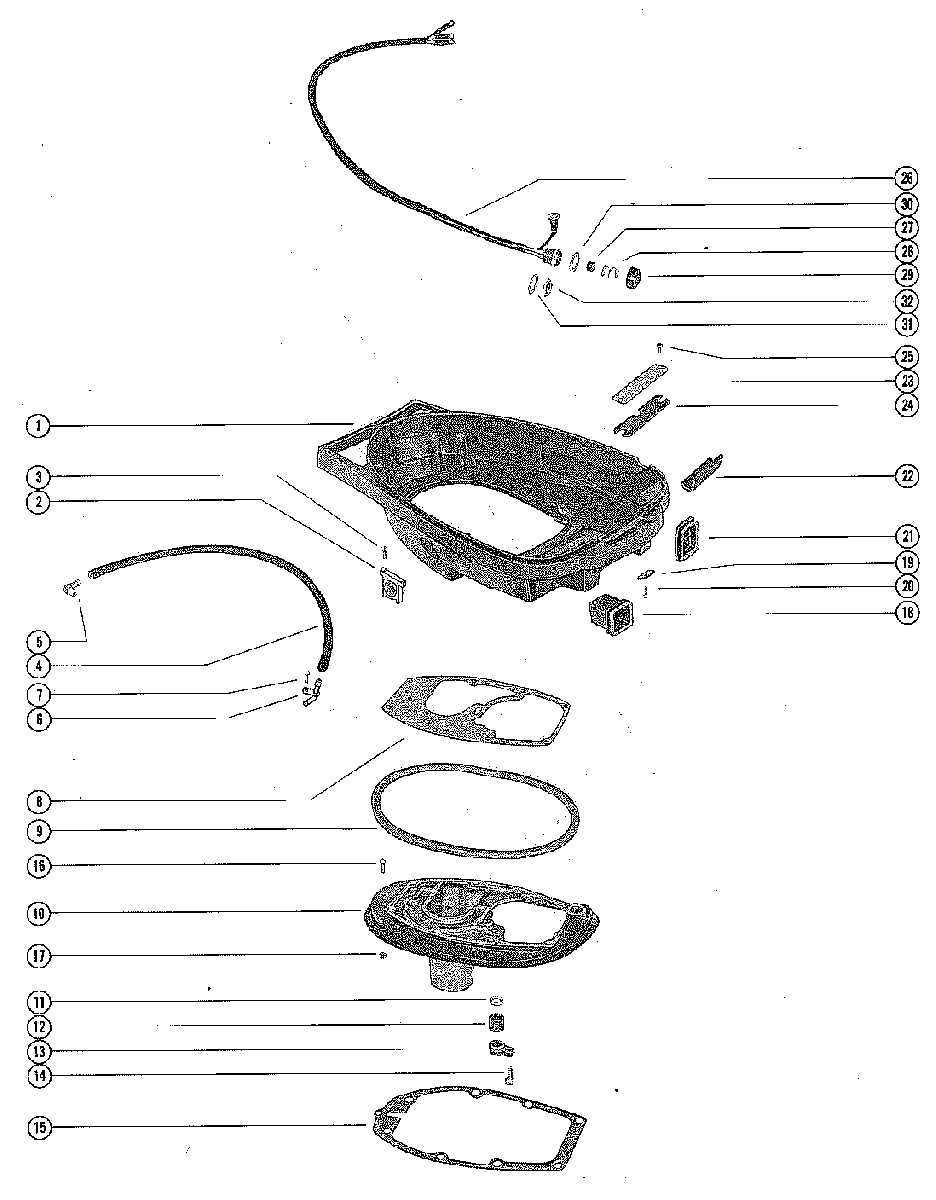

BOTTOM COWL AND EXHAUST PLATE ASSEMBLY для Mercury - 400 (2 CYL.) 2874704 THRU 3336257
-
№АртикулНазвание
-
12139-3882 BOTTOM COWLBOTTOM COWL
-
248472 COVER, PLUG - BOTTOM COWL HARNESS HOLE (MANUAL)COVER, PLUG - BOTTOM COWL HARNESS HOLE (MANUAL)
-
310-20189 SCREW, PLUG COVER TO BOTTOM COWL (3/4")SCREW, PLUG COVER TO BOTTOM COWL (3/4")
-
432-8M0108355 HOSE, TELL TALE - COWL TO EXHAUST COVER (12")HOSE, TELL TALE - COWL TO EXHAUST COVER (12")
-
522-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
652889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
710-35519 SCREW, NOZZLE TO BOTTOM COWLSCREW, NOZZLE TO BOTTOM COWL
-
827-628601 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
939622 SEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWLSEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWL
-
1042818A1 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
1112-38453 WASHER, NYLON - WATER OUTLET TUBEWASHER, NYLON - WATER OUTLET TUBE
-
1226-38452 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
1338500 RETAINER, WATER OUTLET TUBE SEALRETAINER, WATER OUTLET TUBE SEAL
-
1410-69069 SCREW, RETAINER TO EXHAUST PLATE (3/4")SCREW, RETAINER TO EXHAUST PLATE (3/4")
-
1527-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
-
1610-56500 SCREW, EXHAUST PLATE TO BOTTOM COWL (1 1/4")SCREW, EXHAUST PLATE TO BOTTOM COWL (1 1/4")
-
1711-20184 NUT, EXHAUST PLATE SCREWNUT, EXHAUST PLATE SCREW
-
1837637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1955170 COVER, VENT - BOTTOM COWLCOVER, VENT - BOTTOM COWL
-
2010-52867 SCREW. VENT COVER TO BOTTOM COWLSCREW. VENT COVER TO BOTTOM COWL
-
2139616 BOOT, CONTROL CABLE - BOTTOM COWLBOOT, CONTROL CABLE - BOTTOM COWL
-
2239630 CUSHION, RUBBER - BOTTOM COWLCUSHION, RUBBER - BOTTOM COWL
-
2339555A2 COVER PLATE ASSEMBLYCOVER PLATE ASSEMBLY
-
2457596 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
2510-8M0113176 SCREW, COVER PLATE TO BOTTOM COWLSCREW, COVER PLATE TO BOTTOM COWL
-
2659065A6 STOP SWITCH ASSEMBLY MANUAL ONLYSTOP SWITCH ASSEMBLY MANUAL ONLY
-
2730859 INSULATOR, SLEEVE - INNER SWITCH TERMINALS(MANUAL)INSULATOR, SLEEVE - INNER SWITCH TERMINALS(MANUAL)
-
2824-30858A1 SPRING AND CONTACT ASSEMBLY (MANUAL)SPRING AND CONTACT ASSEMBLY (MANUAL)
-
2938950A1 COVER ASSEMBLY, STOP SWITCH (MANUAL)COVER ASSEMBLY, STOP SWITCH (MANUAL)
-
3012-38949 WASHER, SEALING - STOP SWITCH (MANUAL)WASHER, SEALING - STOP SWITCH (MANUAL)
-
3113-21972 LOCKWASHER, STOP SWITCH CONNECTOR(MANUAL)LOCKWASHER, STOP SWITCH CONNECTOR(MANUAL)
-
3211-21971 NUT, STOP SWITCH TO BOTTOM COWL (MANUAL)NUT, STOP SWITCH TO BOTTOM COWL (MANUAL)
