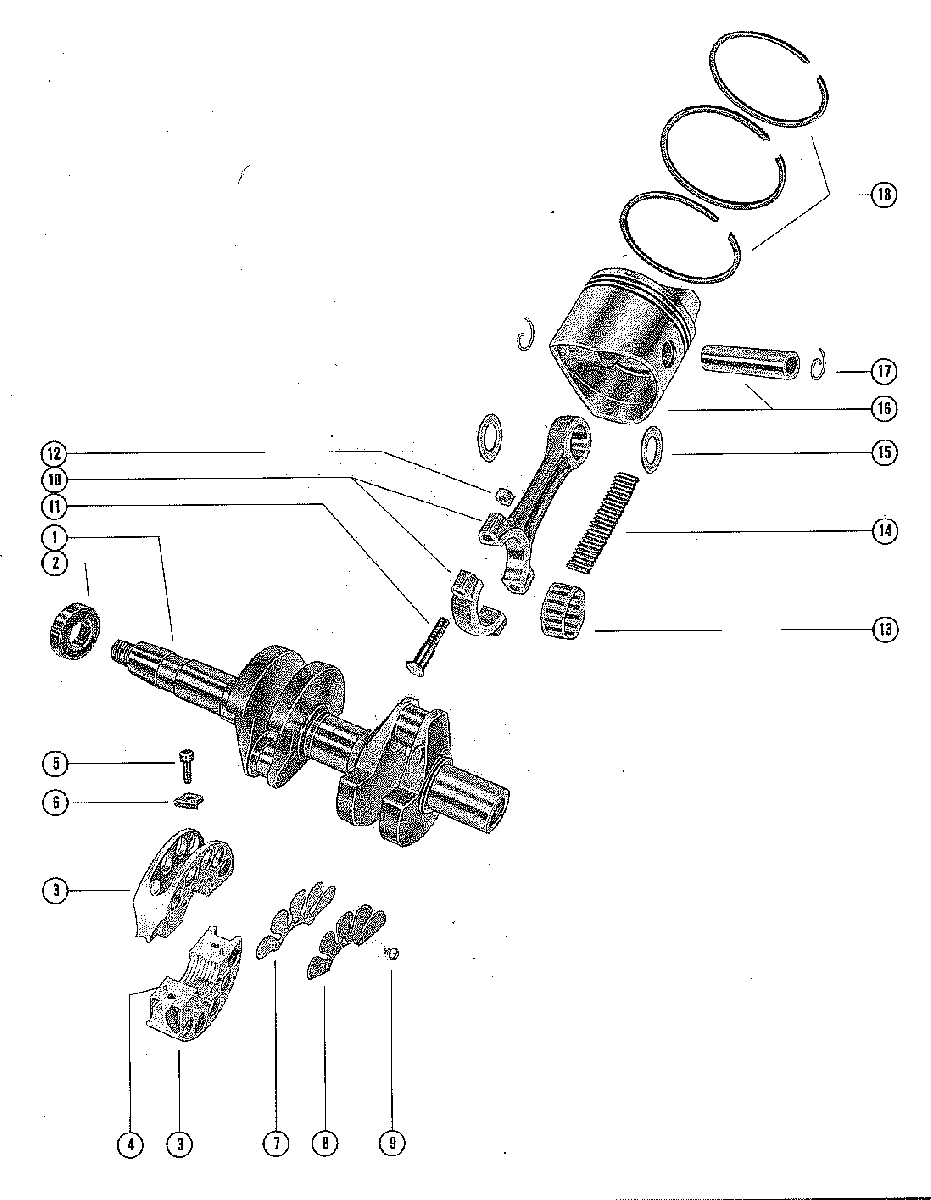

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 400 (2 CYL.) 2874704 THRU 3336257
-
№АртикулНазвание
-
1444-3875A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-62567T BALL BEARING, CRANKSHAFT (UPPER)BALL BEARING, CRANKSHAFT (UPPER)
-
3540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
417-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
510-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
611-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
734-56007A1 REED SET, MAIN BEARING (MATCHED)REED SET, MAIN BEARING (MATCHED)
-
834-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
910-20055 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
10624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1110-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
1211-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1331-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
1429-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
1512-8M0032839 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
16774-9137A12 PISTON AND PISTON PIN ASSEMBLY
SERIAL 00000000-03045259PISTON AND PISTON PIN ASSEMBLY
SERIAL 00000000-03045259 -
16774-9137A12 PISTON AND PISTON PIN ASSEMBLY
SERIAL 03045260-09999999PISTON AND PISTON PIN ASSEMBLY
SERIAL 03045260-09999999 -
1753-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1839-78816A12 RING, PISTONRING, PISTON
-
-745-4513A1 PISTON AND PISTON PIN ASSEMBLY(.015 OVERSIZE)
SERIAL 00000000-03045259PISTON AND PISTON PIN ASSEMBLY(.015 OVERSIZE)
SERIAL 00000000-03045259 -
-774-9137A13 PISTON AND PISTON PIN ASSEMBLY(.015 OVERSIZE)
SERIAL 03045260-09999999PISTON AND PISTON PIN ASSEMBLY(.015 OVERSIZE)
SERIAL 03045260-09999999 -
-39-78811A12 RING, PISTON (.015 OVERSIZE)RING, PISTON (.015 OVERSIZE)
