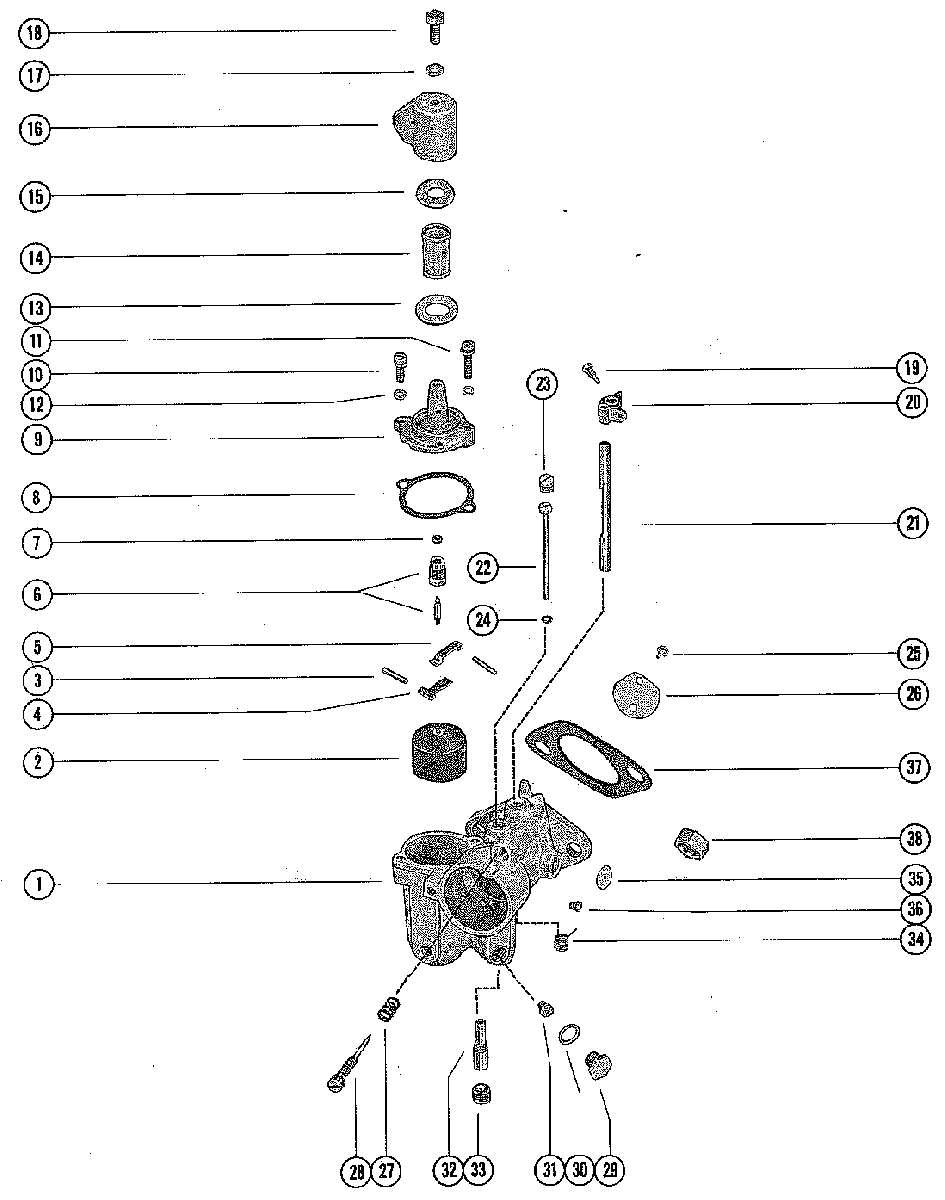

CARBURETOR ASSEMBLY для Mercury - 400 (2 CYL.) 2874704 THRU 3336257
-
№АртикулНазвание
-
11352-4511A1 CARBURETOR ASSEMBLY, COMPLETE (KD-5A)
SERIAL 00000000-02979678CARBURETOR ASSEMBLY, COMPLETE (KD-5A)
SERIAL 00000000-02979678 -
11352-4511A1 CARBURETOR ASSEMBLY, COMPLETE (WMK-1)
SERIAL 03043031-09999999CARBURETOR ASSEMBLY, COMPLETE (WMK-1)
SERIAL 03043031-09999999 -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKET
SERIAL 00000000-02979678INLET NEEDLE, SEAT AND GASKET
SERIAL 00000000-02979678 -
61395-83181 INLET NEEDLE, SEAT AND GASKET
SERIAL 03043031-09999999INLET NEEDLE, SEAT AND GASKET
SERIAL 03043031-09999999 -
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWL
SERIAL 00000000-02979678COVER, FLOAT BOWL
SERIAL 00000000-02979678 -
91399-4559 COVER, FLOAT BOWL
SERIAL 03043031-09999999COVER, FLOAT BOWL
SERIAL 03043031-09999999 -
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-2371 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
2074371 CLUSTER, THROTTLE STOPCLUSTER, THROTTLE STOP
-
211395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2310-23178 SCREW, BODY (IDLE TUBE)
SERIAL 00000000-02979678SCREW, BODY (IDLE TUBE)
SERIAL 00000000-02979678 -
231395-4540 SCREW, BODY (IDLE TUBE)
SERIAL 03043031-09999999SCREW, BODY (IDLE TUBE)
SERIAL 03043031-09999999 -
2490-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2590-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
261395-9017 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2790-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
281399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2910-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
SERIAL 00000000-02979678SCREW, PLUG - MAIN FUEL JET CHANNEL
SERIAL 00000000-02979678 -
291395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL
SERIAL 03043031-09999999SCREW, PLUG - MAIN FUEL JET CHANNEL
SERIAL 03043031-09999999 -
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
311395-6201 JET, MAIN FUEL (.080)JET, MAIN FUEL (.080)
-
311399-3520 JET, MAIN FUEL (.0785) - STANDARDJET, MAIN FUEL (.0785) - STANDARD
-
311399-3796 JET, MAIN FUEL (.076)JET, MAIN FUEL (.076)
-
311399-3794 JET, MAIN FUEL (.074)JET, MAIN FUEL (.074)
-
3290-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
331399-3522 SCREW, PLUG - MAIN NOZZLE
SERIAL 00000000-02979678SCREW, PLUG - MAIN NOZZLE
SERIAL 00000000-02979678 -
331395-4542 SCREW, PLUG - MAIN NOZZLE
SERIAL 03043031-09999999SCREW, PLUG - MAIN NOZZLE
SERIAL 03043031-09999999 -
3490-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
3590-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
3610-23030 SCREW, BODY CHANNEL
SERIAL 00000000-02979678SCREW, BODY CHANNEL
SERIAL 00000000-02979678 -
361395-4543 SCREW, BODY CHANNEL
SERIAL 03043031-09999999SCREW, BODY CHANNEL
SERIAL 03043031-09999999 -
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
SERIAL 00000000-02979678REPAIR PARTS KIT (1 PER CARBURETOR)
SERIAL 00000000-02979678 -
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
SERIAL 03043031-09999999REPAIR PARTS KIT (1 PER CARBURETOR)
SERIAL 03043031-09999999 -
3727-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3811-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
