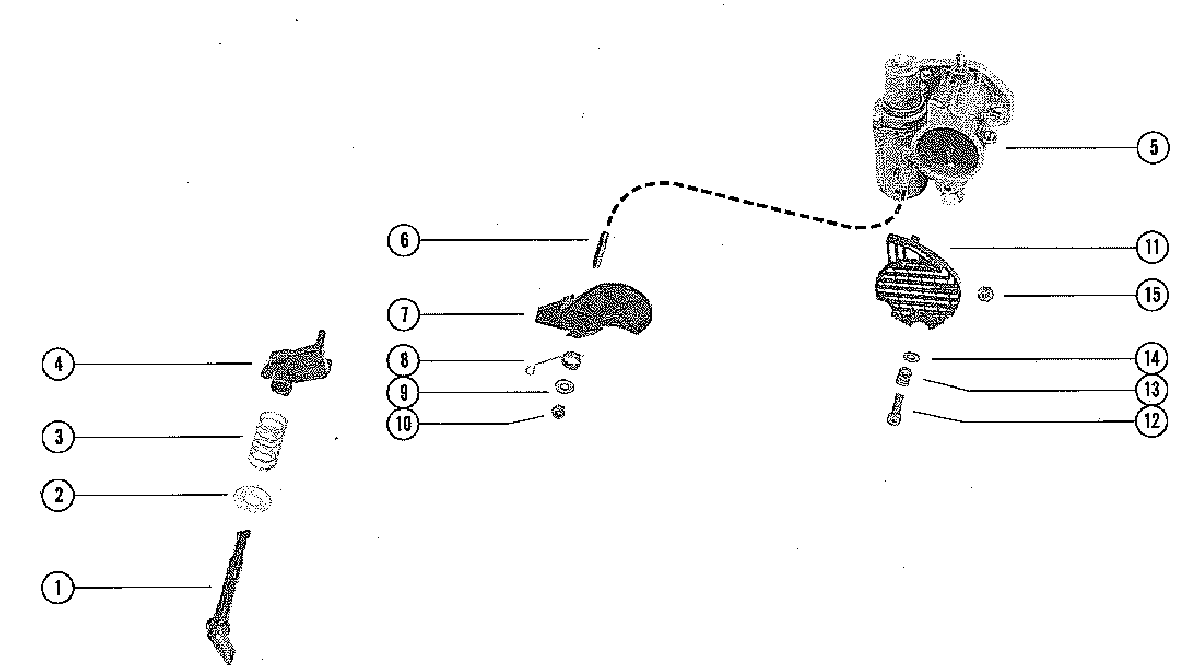

CARBURETOR CHOKE LINKAGE для Mercury - 400 (2 CYL.) 2874704 THRU 3336257
-
№АртикулНазвание
-
147969 KNOB AND SHAFT, CHOKEKNOB AND SHAFT, CHOKE
-
212-30314 WASHER, CHOKE SHAFTWASHER, CHOKE SHAFT
-
324-47968 SPRING, COMPRESSION - CHOKE SHAFTSPRING, COMPRESSION - CHOKE SHAFT
-
455180 LEVER, CHOKELEVER, CHOKE
-
51352-4511A1 CARBURETOR ASSEMBLY -SEE PAGE 7 FOR BREAKDOWN
SERIAL 00000000-02979678CARBURETOR ASSEMBLY -SEE PAGE 7 FOR BREAKDOWN
SERIAL 00000000-02979678 -
51352-4511A1 CARBURETOR ASSEMBLY-SEE PAGE 7 FOR BREAKDOWN
SERIAL 03043031-09999999CARBURETOR ASSEMBLY-SEE PAGE 7 FOR BREAKDOWN
SERIAL 03043031-09999999 -
616-69016 STUD, CHOKE SHUTTER PIVOT (CARBURETOR)STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
-
755179 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
824-55163 SPRING, TENSION - CHOKE SHUTTERSPRING, TENSION - CHOKE SHUTTER
-
912-47960 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
1011-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
1135-57819 SCREEN, CARBURETORSCREEN, CARBURETOR
-
1210-58185 SCREW, SCREEN TO CARBURETOR (1")SCREW, SCREEN TO CARBURETOR (1")
-
1324-57818 SPRING, TENSION - SCREEN SCREWSPRING, TENSION - SCREEN SCREW
-
1412-30164 WASHER, SCREEN SCREWWASHER, SCREEN SCREW
-
1511-20110 NUT, SCREEN SCREWNUT, SCREEN SCREW
