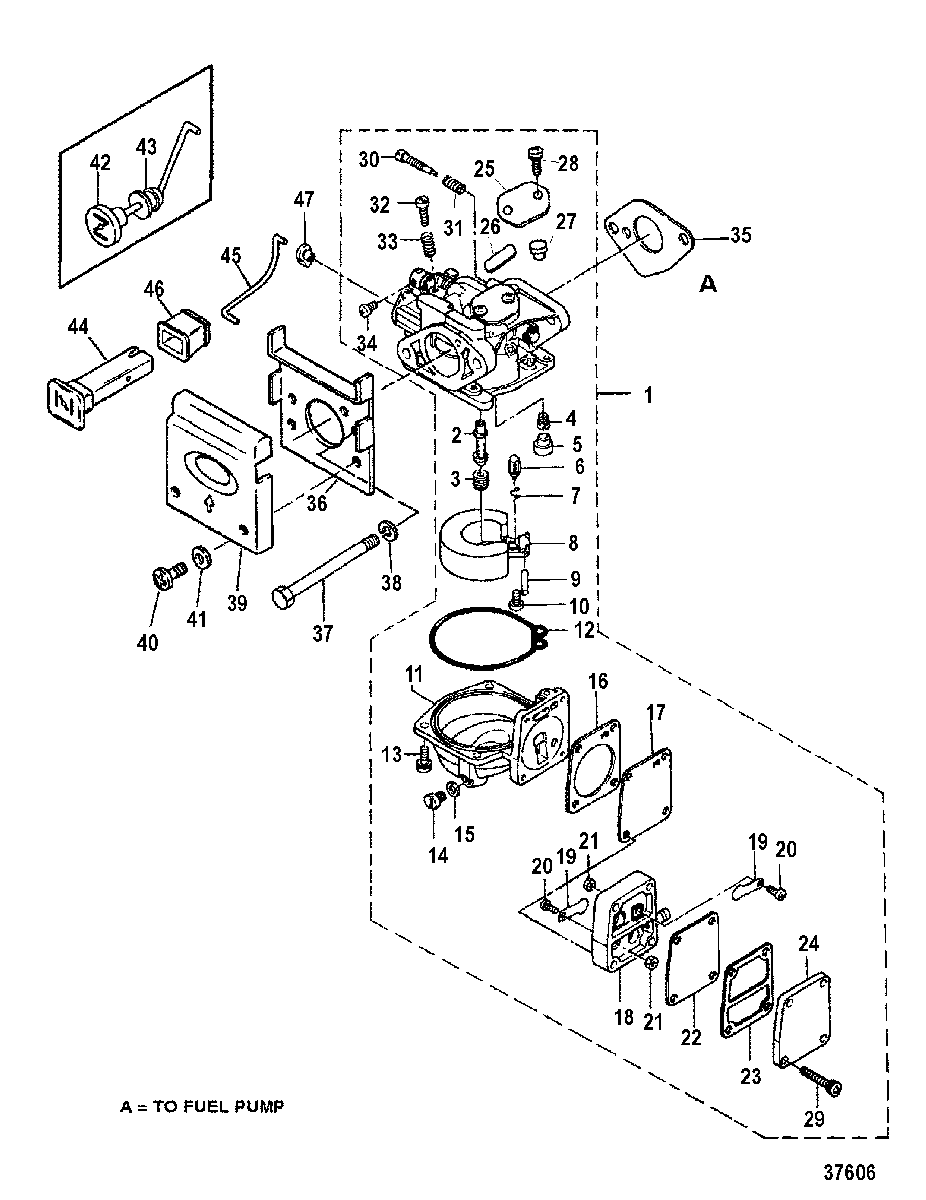

CARBURETOR для Mercury - 4/5 9589154 THRU 0P016999
-
№АртикулНазвание
-
13303-812647T1 CARBURETOR
(4 H.P)CARBURETOR
(4 H.P) -
13303-812648T CARBURETOR
(5 H.P.)CARBURETOR
(5 H.P.) -
2812649 MAIN NOZZLE
(4 H.P.)MAIN NOZZLE
(4 H.P.) -
2812650 MAIN NOZZLE
(4 H.P.) (SEE NOTE 1)MAIN NOZZLE
(4 H.P.) (SEE NOTE 1) -
2812650 MAIN NOZZLE
(5 H.P.) (SEE NOTE 1)MAIN NOZZLE
(5 H.P.) (SEE NOTE 1) -
316250 MAIN JET (#78)MAIN JET (#78)
-
4162512 JET, Pilot (#55)
(4 H.P.)JET, Pilot (#55)
(4 H.P.) -
416251 JET, Pilot (#52)
(5 H.P.)JET, Pilot (#52)
(5 H.P.) -
516252 CAPCAP
-
616254 FLOAT VALVEFLOAT VALVE
-
754-16255 CLIPCLIP
-
816253 FLOATFLOAT
-
917-16256 PINPIN
-
1010-16257 SCREWSCREW
-
1116258 FLOAT BOWLFLOAT BOWL
-
1225-16259 O-RINGO-RING
-
1310-16260 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
1410-16261 SCREW, DrainSCREW, Drain
-
1527-16262 GASKETGASKET
-
1627-16326 GASKETGASKET
-
1716325 DIAPHRAGMDIAPHRAGM
-
1816268 BODY, PumpBODY, Pump
-
1921-16269 CHECK VALVECHECK VALVE
-
2010-16270 SCREWSCREW
-
2111-16271 NUTNUT
-
2216275 DIAPHRAGMDIAPHRAGM
-
2327-16274 GASKETGASKET
-
2416272 COVER, PumpCOVER, Pump
-
25855540 COVER, CarburetorCOVER, Carburetor
-
2627-855541 GASKETGASKET
-
2727-8555411 GASKETGASKET
-
2810-855542 SCREWSCREW
-
2910-162606 SCREWSCREW
-
3010-16265 SCREW, Adjusting
(4 H.P.)SCREW, Adjusting
(4 H.P.) -
3010-812935 SCREW, Adjusting
(5 H.P.)SCREW, Adjusting
(5 H.P.) -
3124-16266 SPRINGSPRING
-
3210-16263 SCREWSCREW
-
3324-16264 SPRINGSPRING
-
3410-16267 SCREW (USE WHERE APPLICABLE)SCREW (USE WHERE APPLICABLE)
-
3527-16327 GASKETGASKET
-
3616328 BRACKETBRACKET
-
3710-855809003 BOLT, (M6 x 85)BOLT, (M6 x 85)
-
3813-16818 LOCKWASHERLOCKWASHER
-
39812936 PLATE, BafflePLATE, Baffle
-
4010-16334 SCREWSCREW
-
4112-16335 WASHERWASHER
-
4216331 ROD, Choke
ROUND DESIGNROD, Choke
ROUND DESIGN -
4325-16332 GROMMET
ROUND DESIGNGROMMET
ROUND DESIGN -
44163312 ROD, Choke
SQUARE DESIGNROD, Choke
SQUARE DESIGN -
45827662 LINK, Choke
SQUARE DESIGNLINK, Choke
SQUARE DESIGN -
4625-163321 GROMMET
SQUARE DESIGNGROMMET
SQUARE DESIGN -
4716333 ROD, SnapROD, Snap
-
-855546A1 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-16115A03 GASKET SET, PowerheadGASKET SET, Powerhead
