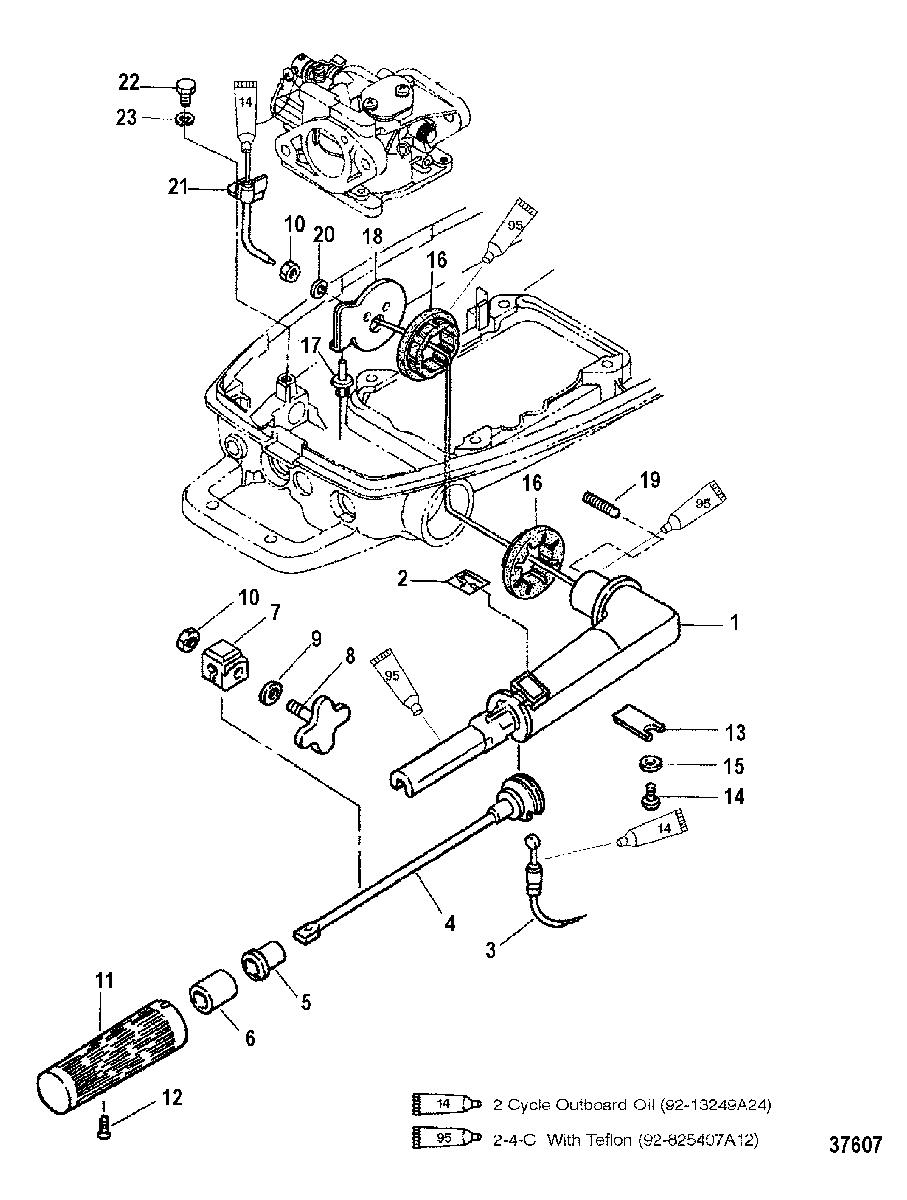

THROTTLE COMPONENTS для Mercury - 4/5 9589154 THRU 0P016999
-
№АртикулНазвание
-
116075T4 HANDLE, Throttle
(BLACK)HANDLE, Throttle
(BLACK) -
116075T4 HANDLE, Throttle
(GRAY)HANDLE, Throttle
(GRAY) -
237-8M0097201 DECALDECAL
-
316088 WIRE, ThrottleWIRE, Throttle
-
416093 SHAFT, ThrottleSHAFT, Throttle
-
523-8M0130166 BUSHINGBUSHING
-
623-16191 SPACERSPACER
-
7813026 FRICTION PIECEFRICTION PIECE
-
810-16087 SCREW, AdjustingSCREW, Adjusting
-
912-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1116086 GRIPGRIP
-
1210-16094 SCREWSCREW
-
1316338 BRACKETBRACKET
-
1410-16827 SCREWSCREW
-
1512-16826 WASHER, Stainless Steel (USE WHERE APPLICABLE)WASHER, Stainless Steel (USE WHERE APPLICABLE)
-
1623-16083005 BUSHINGBUSHING
-
1717-16085 PINPIN
-
1816084 RETAINERRETAINER
-
1916-815028 STUD BOLTSTUD BOLT
-
2013-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2116089 BRACKETBRACKET
-
2210-168281 SCREW AND LOCKWASHERSCREW AND LOCKWASHER
-
2313-16818 LOCKWASHER (USE WHERE APPLICABLE)LOCKWASHER (USE WHERE APPLICABLE)
