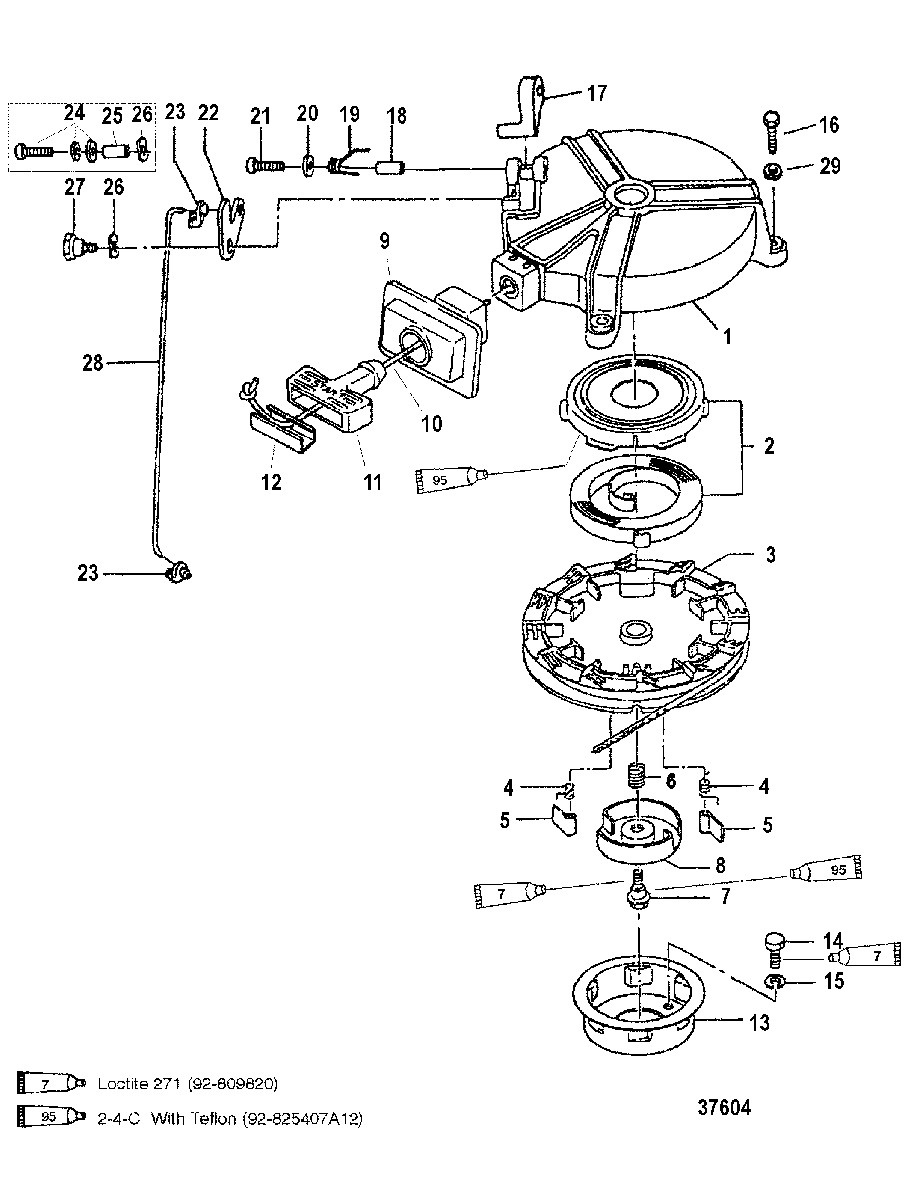

RECOIL STARTER для Mercury - 4/5 9589154 THRU 0P016999
-
№АртикулНазвание
-
-803576T02 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
1812632002 HOUSING, StarterHOUSING, Starter
-
224-812645T SPRING SETSPRING SET
-
3812633 SHEEVE, StarterSHEEVE, Starter
-
424-812634 SPRING, ReturnSPRING, Return
-
58M0060217 RATCHETRATCHET
-
624-812636 SPRING, FrictionSPRING, Friction
-
710-8M0060218 BOLTBOLT
-
8812638 FRICTION PLATEFRICTION PLATE
-
9161101 PLATE, Starter
SN# USA-0G574242/BEL-9973100 & UpPLATE, Starter
SN# USA-0G574242/BEL-9973100 & Up -
9161101 PLATE, Seal
SN# USA-0G574241/BEL-9973099 & BelowPLATE, Seal
SN# USA-0G574241/BEL-9973099 & Below -
1050-12066Q10 ROPE, StarterROPE, Starter
-
11812640 HANDLE, Starter RopeHANDLE, Starter Rope
-
12812641 RETAINERRETAINER
-
13812642 PULLEY, StarterPULLEY, Starter
-
1410-168281 SCREW AND LOCKWASHER
(USE W/O LOCKWASHER)SCREW AND LOCKWASHER
(USE W/O LOCKWASHER) -
1410-16828 BOLT
USE WITH LOCKWASHERBOLT
USE WITH LOCKWASHER -
1513-16818 LOCKWASHERLOCKWASHER
-
1610-810755 SCREWSCREW
-
1717634 LOCK, StarterLOCK, Starter
-
1823-895130 COLLARCOLLAR
-
1924-812645007 SPRINGSPRING
-
2012-16335 WASHERWASHER
-
2110-17635 SCREWSCREW
-
22812643 CAMCAM
-
23176431 SNAP, Link Rod
SN# USA-0G574242/BEL-9973100 & UpSNAP, Link Rod
SN# USA-0G574242/BEL-9973100 & Up -
23176431 SNAP, Link Rod
SN# USA-0G574241/BEL-9973099 & BelowSNAP, Link Rod
SN# USA-0G574241/BEL-9973099 & Below -
2410-855544 SCREW
USE WITH COLLARSCREW
USE WITH COLLAR -
2523-855545 COLLAR
USE WITH COLLARCOLLAR
USE WITH COLLAR -
2613-17641 WAVE WASHERWAVE WASHER
-
2710-17640 SHOULDER SCREW
(USE WITHOUT COLLAR)SHOULDER SCREW
(USE WITHOUT COLLAR) -
2817642001 RODROD
-
2913-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
