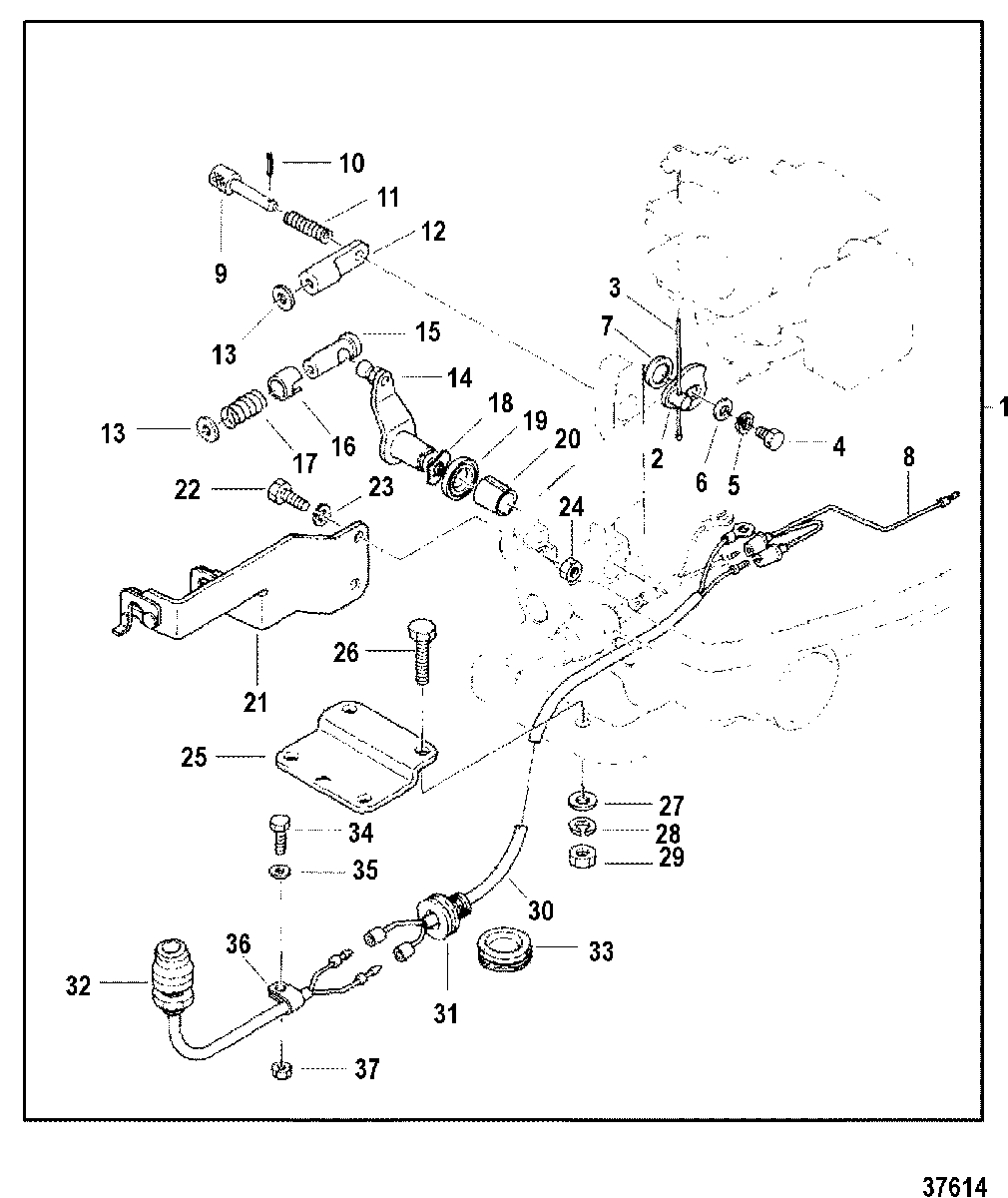

REMOTE CONTROL ATTACHING KIT для Mercury - 4/5 9589154 THRU 0P016999
-
№АртикулНазвание
-
116840A2 ATTACHING KIT, Remote ControlATTACHING KIT, Remote Control
-
216848 LEVERLEVER
-
317034 WIRE, ThrottleWIRE, Throttle
-
410-16223 BOLT, (M6 x 14)BOLT, (M6 x 14)
-
513-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
612-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
410-162111 BOLT
(SEE NOTE 1)BOLT
(SEE NOTE 1) -
612-953921 WASHER, Stainless Steel
(SEE NOTE 1)WASHER, Stainless Steel
(SEE NOTE 1) -
723-16849 COLLAR
(SEE NOTE 1)COLLAR
(SEE NOTE 1) -
884-17035 HARNESS ASSEMBLY (DUAL STOP SWITCH)HARNESS ASSEMBLY (DUAL STOP SWITCH)
-
917-17031 PIN, LockPIN, Lock
-
1017-17033 PINPIN
-
1124-17032 SPRINGSPRING
-
1217030 SLEEVESLEEVE
-
1312-17029 WASHERWASHER
-
1416847 LEVER, ThrottleLEVER, Throttle
-
1517026 BRACKETBRACKET
-
1617027 CAPCAP
-
1724-17028 SPRINGSPRING
-
1813-16221 WAVE WASHERWAVE WASHER
-
1926-16219 SEALSEAL
-
2023-16220 BUSHINGBUSHING
-
2117023 BRACKETBRACKET
-
2210-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
2313-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2411-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2517024 PLATE, Steering Hook
SN# USA-0G574242/BEL-9973100 & UpPLATE, Steering Hook
SN# USA-0G574242/BEL-9973100 & Up -
2517024 PLATE, Steering Hook
SN# USA-0G574241/BEL-9973099 & BelowPLATE, Steering Hook
SN# USA-0G574241/BEL-9973099 & Below -
2610-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2712-16192 WASHERWASHER
-
2813-17025 LOCKWASHERLOCKWASHER
-
2911-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
3084-17162 HARNESS ASSEMBLY (5.9M)HARNESS ASSEMBLY (5.9M)
-
3125-16823 GROMMETGROMMET
-
3287-823037A2 SWITCH ASSEMBLY, Stop
USE WHERE APPLICABLESWITCH ASSEMBLY, Stop
USE WHERE APPLICABLE -
3325-16226 GROMMET
USE WHERE APPLICABLEGROMMET
USE WHERE APPLICABLE -
3410-17174 BOLT
USE WHERE APPLICABLEBOLT
USE WHERE APPLICABLE -
3512-8M0108373 WASHER, Stainless Steel
USE WHERE APPLICABLEWASHER, Stainless Steel
USE WHERE APPLICABLE -
3654-17169 CLAMP
USE WHERE APPLICABLECLAMP
USE WHERE APPLICABLE -
3711-16081 NUT, Stainless Steel
USE WHERE APPLICABLENUT, Stainless Steel
USE WHERE APPLICABLE
