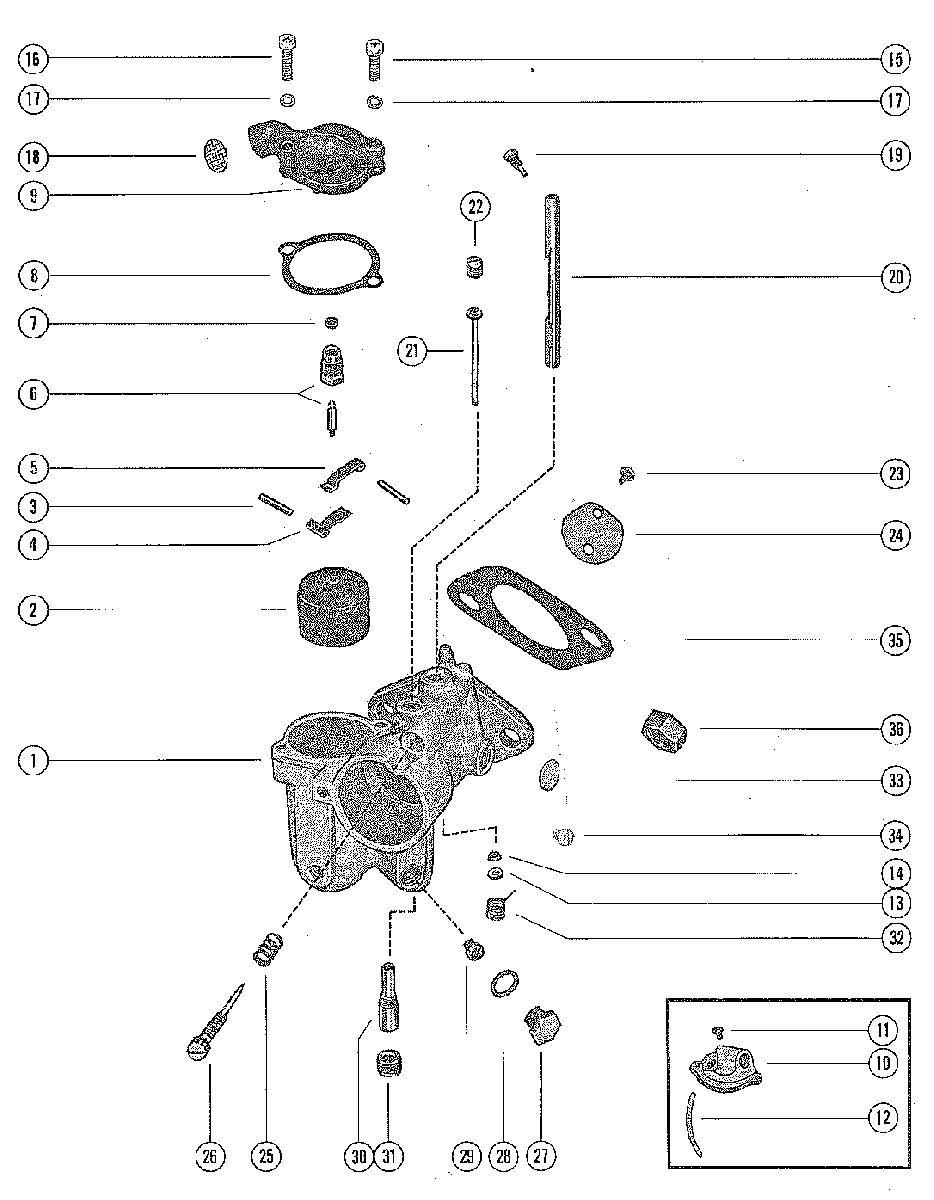

CARBURETOR ASSEMBLY для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
11360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
11360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3660088 THRU 4136684
AUSTRALIA 8009825 THRU 8029189
BELGIUM 9031354 THRU 9082138
CANADA 7019758 THRU 7051132CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3660088 THRU 4136684
AUSTRALIA 8009825 THRU 8029189
BELGIUM 9031354 THRU 9082138
CANADA 7019758 THRU 7051132 -
11360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
21395-8673 FLOAT ASSEMBLY
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWFLOAT ASSEMBLY
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
21395-8673 FLOAT ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPFLOAT ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-5152 COVER, FLOAT BOWL
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWCOVER, FLOAT BOWL
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
101395-5680 COVER, FLOAT BOWL
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPCOVER, FLOAT BOWL
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
111395-5815 JET, GOWL VENT (.086)
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPJET, GOWL VENT (.086)
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
1232-892024122 HOSE, ECONOMIZER
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPHOSE, ECONOMIZER
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
1312-71052 WASHER, SEAL RETAINER
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPWASHER, SEAL RETAINER
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
141395-6204 SEAL, THROTTLE SHAFT
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPSEAL, THROTTLE SHAFT
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
1510-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
161395-4804 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1713-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
181395-4805 SCREEN, FILTERSCREEN, FILTER
-
1990-8M0143356 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
201395-4807 SHAFT, THROTTLESHAFT, THROTTLE
-
2190-8M0143356 TUBE, IDLETUBE, IDLE
-
221395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
2390-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
241395-5200 SHUTTER, THROTTLE
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWSHUTTER, THROTTLE
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
241395-9017 SHUTTER, THROTTLE
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UPSHUTTER, THROTTLE
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UP -
2590-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
261399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
271395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2890-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
291399-3796 JET, MAIN FUEL (.076)JET, MAIN FUEL (.076)
-
291399-3794 JET, MAIN FUEL (.074) - STANDARDJET, MAIN FUEL (.074) - STANDARD
-
291395-6207 JET, MAIN FUEL (.072)JET, MAIN FUEL (.072)
-
291395-6030 JET, MAIN FUEL (.070)JET, MAIN FUEL (.070)
-
3090-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
311395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3290-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
3390-8M0143356 WELCH PLUG, BOY CHANNELWELCH PLUG, BOY CHANNEL
-
341395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3527-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3611-862902 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
