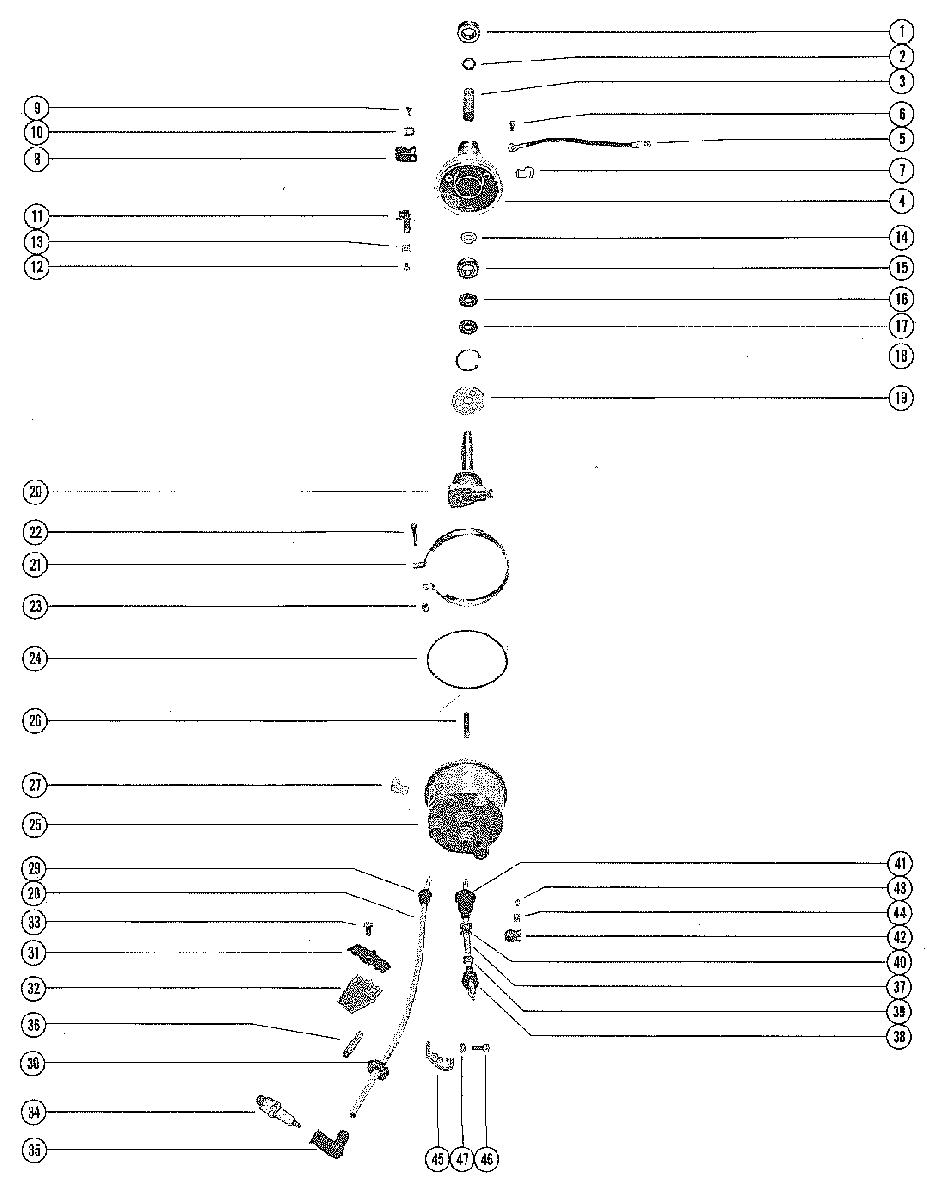

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
130-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
-
211-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSINGNUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
-
323-60566 SLEEVE, ROTOR SHAFTSLEEVE, ROTOR SHAFT
-
4332-4797A9 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
553417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASEGROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
-
610-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
758807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSINGFLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
-
854-22875 CLAMP, DISTRIBUTOR LEADS TO DISTRIBUTOR HOUSINGCLAMP, DISTRIBUTOR LEADS TO DISTRIBUTOR HOUSING
-
910-62568 SCREW, DISTRIBUTOR LEAD CLIP FASTENING (3/8")SCREW, DISTRIBUTOR LEAD CLIP FASTENING (3/8")
-
108M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
1154-22875 CLIP, DISTRIBUTOR LEADS TO FRONT SUPPORT BRACKETCLIP, DISTRIBUTOR LEADS TO FRONT SUPPORT BRACKET
-
1210-62568 SCREW, DISTRIBUTOR LEAD CLIP (3/8")SCREW, DISTRIBUTOR LEAD CLIP (3/8")
-
138M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
1415-21148A1 SHIM, BEARING TO SPACERSHIM, BEARING TO SPACER
-
1530-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
-
1615-55853 SHIM, BEARING TO DISTRIBUTOR HOUSINGSHIM, BEARING TO DISTRIBUTOR HOUSING
-
1723-53538 SPACER, ROTOR SHAFTSPACER, ROTOR SHAFT
-
1853-26406 RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSINGRING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
-
19332-4801 DISC, ROTORDISC, ROTOR
-
20337-4603 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
2154-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSINGCLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
-
2210-65774 SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
-
2311-26768 NUT, DISTRIBUTOR CAP CLAMP SCREWNUT, DISTRIBUTOR CAP CLAMP SCREW
-
2427-55896 GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSINGGASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
-
25393-4606A2 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
26393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2758807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAPFLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAP
-
2884-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, AND #3SPARK PLUG LEAD ASSEMBLY #1, #2, AND #3
-
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
2985-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTORSLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
-
3025-26547 CROMMET, SPARK PLUG LEADCROMMET, SPARK PLUG LEAD
-
3163319 RETAINER, HIGH TENSION LEADSRETAINER, HIGH TENSION LEADS
-
3262877 RETAINER, HIGH TENSION LEADSRETAINER, HIGH TENSION LEADS
-
3310-28638 SCREW, HIGH TENSION LEAD RETAINER (3/4")SCREW, HIGH TENSION LEAD RETAINER (3/4")
-
3433-97180Q SPARK PLUG (AC#V40FFM)SPARK PLUG (AC#V40FFM)
-
3585-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
3623-57459 SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
3784-821945A10 HIGH TENSION CABLE ASSEMBLY , DISTRIBUTOR CAP TO COILHIGH TENSION CABLE ASSEMBLY , DISTRIBUTOR CAP TO COIL
-
38332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
3925-26547 GROMMET, HIGH TENSION LEADGROMMET, HIGH TENSION LEAD
-
4025-56474 GROMMET, HIGH TENSION LEADGROMMET, HIGH TENSION LEAD
-
4185-94589 SLEEVE, HIGH TENSION CABLESLEEVE, HIGH TENSION CABLE
-
4254-22627 CLIP, HIGH TENSION LEAD TO CRANKCASECLIP, HIGH TENSION LEAD TO CRANKCASE
-
4310-69079 SCREW, HIGH TENSION CLIP (7/16")SCREW, HIGH TENSION CLIP (7/16")
-
448M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
4559757 BRACKET, COIL WIREBRACKET, COIL WIRE
-
4610-69054 SCREW, BRACKET TO CRANKCASE (5/8")SCREW, BRACKET TO CRANKCASE (5/8")
-
4713-26992 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE COMPONENTS
- DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE
- • DISTRIBUTOR HOUSING AND ROTOR
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINE (SERIAL GROUP NO. 11)
- FUEL PUMP, FUEL FILTER AND FUEL LINES (SERIAL GROUP NO. 13)
- GEAR HOUSING ASSEMBLY, COMPLETE
- GEAR HOUSING ASSEMBLY, COMPLETE (continued)
- SERIAL GROUP CHART/miscellaneous parts
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS
